| Price: | US $ 1700-2000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | T-107H |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable Fibers: | Sm, Mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire |
| Average Splice Loss: | 0.02db(Sm), 0.01db(Mm), 0.04db(Nzds), 0.04db(Edf) |
| Return Loss: | >60db |
| Protection Sleeve Length: | 20mm, 40mm, 60mm |
| Language: | Chinese, English |
| Tension Test: | 2.0n 200gf Standard |
| Monitor: | 5 Inches Colorful LCD Display |
| Fiber Image Magnification: | X and Y Views with 200 Times |
| Dimension: | 155mm(W) *165mm( D) * 150mm(H) |
| Weight: | 2.5kg |
| Type: | Fiber Optic Connectors |
| Wiring Devices: | ODF |
| Certification: | SGS |
| Condition: | New |
Discription
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.> If no special request, we will use standard carton packing with easy to carry case. We will use safety foam in the carrying case to protect products, in order to avoid any damage in delivery.
> Custom-made Professional tool kit(case) with anti-shock sponge inside + Export-standard Carton Box with PE Foam inside.
Applications:
> Telecom, Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, College, Science & Research Agency, etc.
Delivery & Shipping:
> Leading Date: Within 3 to 5 working days for small orders after deposit received, kindly negotiation for bulk order.
> Shipment: By DHL, FedEx, TNT, EMS & UPS, directly delivery to your hands.
Warranty & Service:
> After-sales Service:
> We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
> We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.
> Life-long Maintenance Service:
> During the warranty period, we can repair or replace the defective parts for free.
> After the warranty time, we also repair the defective parts, but only charge part cost.
> Shipping Damage Management:
> When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
| Applicable Fibers | SM, MM, NZ-DS, EDF , Pigtail, Cable, Rubber-insulated wire Series |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 10 seconds |
| Typical heating time | 30 seconds |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Operating Language | Chinese, English |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 12V, 8AH |
| Monitor | 5 inches high resolution colorful LCD display |
| Fiber Image Magnification | Simultaneous X and Y views with 200 times magnification |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | Bare Fiber & Rubber-insulated Wire |
| Dimensions | 155(W)*165(D)*150(H)mm |
| Weight | 2.5kg |

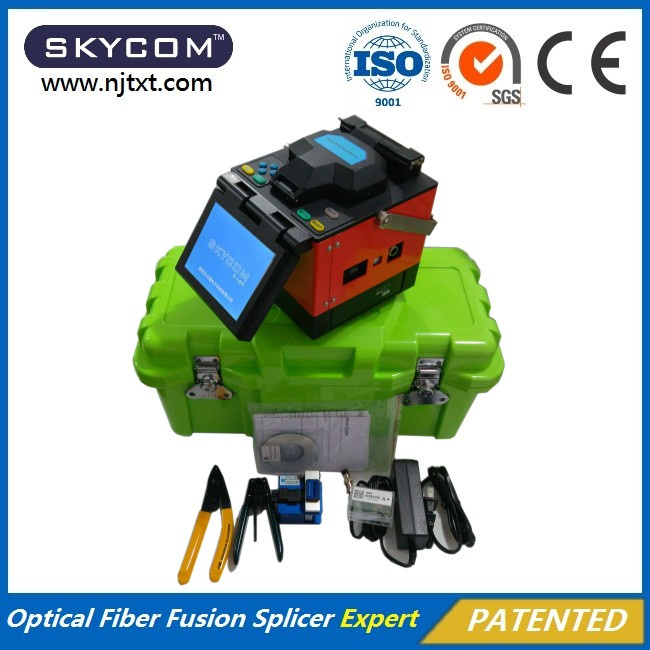

| No. | Item | Quantity |
| 1 | Machine T-107H | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor | 1 |
| 5 | Battery | 1 |
| 6 | Charger | 1 |
| 7 | Spare Electrodes | 1 |
| 8 | Cooling Tray | 1 |
| 9 | Instruction CD | 1 |
| 10 | Quick Reference Guide | 1 |
| 11 | Rubber-insulated wire strippers | 1 |
| 12 | Transit case with Carrying strap | 1 |
