Product Description

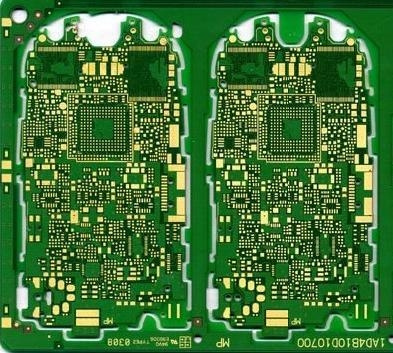

1.Detailed Specification of PCB Manufacturing
1
Layer
1-30 layer
2
Material
FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3
Board thickness
0.2mm-7mm
4
Max.finished board side
500mm*500mm
5
Min.drilled hole size
0.25mm
6
Min.line width
0.075mm(3mil)
7
Min.line spaceing
0.075mm(3mil)
8
Surface finish/treatment
HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
9
Copper thickness
0.5-4.0oz
10
Solder mask color
green/black/white/red/blue/yellow
11
Inner packing
Vacuum packing,Plastic bag
12
Outer packing
Standard carton packing
13
Hole tolerance
PTH:±0.076,NTPH:±0.05
14
Certificate
UL,ISO9001,ISO14001,ROHS,CQC
15
Profiling Punching
Routing,V-CUT,Beveling
16
Assembly Service
Providing OEM service to all sorts of printed circuit board assembly
2.Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Since 2006, E-sun electronic provide customer with customerize designed and Input Devices and interface technology.
E-sun electronic believe that we stand by creat value for customer. Base on China, we support customer the most competitive price.
All materials is RoHS compliance.
2006 E-sun shenzhen established with membrane switch, nameplate, graphic overlay, domed label market
2007 invested for kapton circuit and PCB
2010 invested for silicon rubber(elastomer) keypad
2012 invested touch panel and touch display(touch monitor)
2013 invested capacitive switch keypad
2014 Setup Hongkong E-sun office for oversea market
2015 invest to office device
Product
*Touch panel
*Resistive touch panel(4 wire, 5 wire and 8 wire) from 3.5inch to 23 inch
*Project capacitive touch panel from 1.8 inch to 32 inch
*Membrane switch/graphic overlay
*Elastomeric keypad
*Metal keyboard
*Customerize plastic products and metal products
*PCB and regid Flexiable print circuit(kapton and PET)
*Value add assembly service
*Bar code scanner and laser scanner
Appliance:
Medical device
Industry control
Aerospace and defence
Comsumer
Automative
Other
