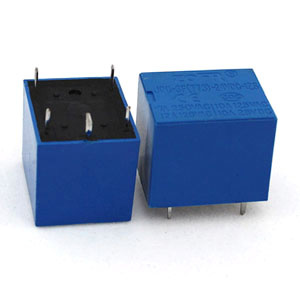

PCB Relay
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Product Specifications
| Prod Model: |
12V 5 PIN relay |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Lathe Relay |
Product Description
Eatures:
Contact Form:
1H: SPST-NO 1Z: SPDT
Contact Material:
NO: AgSn02 D: AgCdO
Construction:
S: Sealed IP67 NO: No Sealed IP67
Initial Contact Resistance:
100mΩ (1A 6VDC)
Contact Rating(Res. Load):
7A 250VAC/10A 28VDC
Coil Voltage:
3VDC/5VDC/6VDC/9VDC/12VDC/18VDC/24VDC/48VDC
Max. Switching Voltage:
250VAC/30VDC
Max. Switching Current:
15A
Max. Switching Power:
300W/2500VA
Mechanical life:
1× 107 times
Electrical life:
1× 105 times
Initial Insulation Resistance:
1000mΩ , 500VDC
Dielectric Strength:
Between coil contacts 750VAC 1min.
Between open contacts 500VAC 1min.
Operate Time (at nomi. Volt):
15ms
Release Time (at nomi. Volt):
10ms
Impact Resistance:
Stability 100m/s2; Intensity 1000m/s2
Vibration Resistance:
1mm 10~55Hz
Temperature:
-40º ~ +85º
Termination:
PCB and Plug type leading-out terminal
Zhejiang Yowa Electric Co., Ltd.Located in WengYang Industrial Zone, Wenzhou, ZheJiang, China.Our company mainly produce contactor, AC Contactor, circuit breaker, MCB, MCCB, RRCB, Soft starter, transformer and other low-voltage electrical products.All of our products comply with international quality standards.
