PCB Screw Terminal Block Connector (DG635-6.35mm) CE

Name: PCB Screw Terminal Block Connector (DG635-6.35mm) CE
Brand: china-manufacturer-directory.com
SKU: 717051275
Availability: InStock
Rating: 4.6 (86 reviews)

Price:	US $ 0.28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

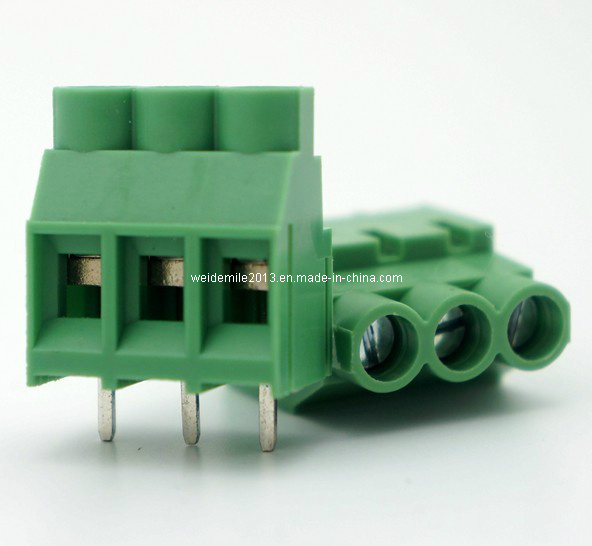

PCB Screw Terminal Block Connector DG635 CE

Pitch: 6.35mm
Poles: 2P. 3P
Screw: M3, Steel, Zinc plated
Wire cage: Brass, Ni plated
Pin header: Brass, Tin plated
Housing: PA66.

Rated Voltage: 300V
Rated Current: 32A
Withstanding Voltage: AC1500V/1min
Wire range: 22-10A WG

Temperature Range: -40C~+105C
Max Soldering: +250C for 5 sec.
Torque: 0.5Nm (4.4ib in)
Strip length: 6-7mm

Prod Model:	DG635-6.35mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Application:	Communication
Contact Termination Form:	Screws Fixed
Connection Mode:	In-Line Connector

Applied: CE, TUV, CQC and RoHS.
Cixi Weidemile Electronic Technology Co., Ltd was established in 2004, mainly products are terminal blocks, connectors, has about 300 types of products, including over 1000 specifications, the Types of terminal blocks including PCB screw terminal block connection, PCB spring terminal block connector, pluggable terminal connector, fence terminal connection, barrier terminal block connector, feed through terminal block connector, fuse terminal block connector, transformer terminal block connector, automobile terminal block connector, power terminal block connector, combicon contact and flat cable
