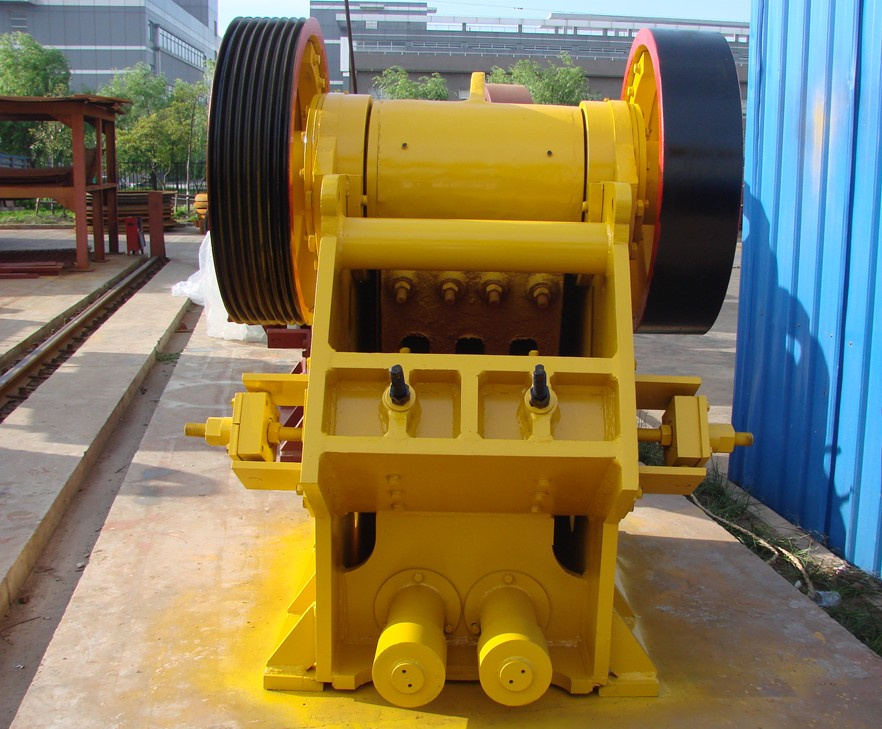

Product Specifications
| Prod Model: |
PE600*900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Port: |
Shanghai |
| Certifitication: |
ISO9001: 2001 |
| Aapplication: |
Stone / Ore |
| Capacity: |
16/65 |
| Payment: |
L/C, T/T |
| Color: |
Various |
| Object: |
Coal |
| Tongs' Features: |
Combination Tongs |
| Cutter Material: |
High-Speed Steel |
| Finished Surface: |
Outer Surface Process |
| Drive: |
Electric |
| Compressive Strength (',For Crushing): |
>300MPA |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Jaw Crusher |
| Crushing Style: |
Extruding and Milling |
Product Description
Jaw Crusher Application:
Stone jaw crusher double toggle jaw crusher, stone crusher crushing machine rock crusher impact.
This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. Jaw crushers are widely applied to crush high hardness, midhardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200MPa, that is, suitable for primary crush. Jaw crushers can be used in mining, metallurgical industry, construction, road and railway building, conservancy, chemistry, etc.
Jaw Crusher Features
1. Simple structure, easy maintenance;
2. Stable performance;
3. Even final particles and high crushing ratio.
Jaw Crusher Operating principle:
This jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushingcavity composed of fixed jaw plate, movable jaw plate and side-lee board can becrushed and discharged through the discharging opening.
|
Model |
Feed inlet
size(mm) |
Max inlet
size(mm) |
Capacity
(t/h) |
Electric
power(kw) |
Overall size
LxWxH(mm) |
Weight
(t) |
|
PE150× 250 |
150× 250 |
125 |
1-5 |
5.5 |
875× 758× 850 |
0.81 |
|
PE250× 400 |
400× 250 |
210 |
5-20 |
15 |
1450× 1315× 1296 |
2.8 |
|
PE400× 600 |
600× 400 |
340 |
16-65 |
30 |
1565× 1732× 1586 |
6.5 |
|
PE500× 750 |
750× 500 |
425 |
45-100 |
55 |
1890× 1916× 1870 |
10.1 |
|
PE600× 900 |
900× 600 |
500 |
50-120 |
55-75 |
2305× 1840× 2298 |
15.5 |
|
PE750× 1060 |
1060× 750 |
630 |
52-180 |
110 |
2450× 2472× 2840 |
28 |
|
PE900× 1200 |
900× 1200 |
750 |
140-260 |
110 |
3200x3050x2950 |
54.5 |
|
PE1000× 1200 |
1000× 1200 |
850 |
315-342 |
110 |
3335x3182x3025 |
57 |
|
PE1200× 1500 |
1200x1500 |
1020 |
400-800 |
160 |
4200x3750x3820 |
100.9 |
|
PEX250× 1000 |
1000× 250 |
210 |
16-52 |
30-37 |
1530x1992x1380 |
6.5 |
|
PEX250× 1200 |
1200× 250 |
210 |
20-60 |
37 |
1900x2192x1430 |
7.7 |
Shanghai Changlei Machinery Complete Equipments Co., Ltd., is an international-type specialized business which specializes in manufacturing mining crushing machinery, sand processing equipment and industrial milling equipment. Integrated itself with the developing, producing and selling, we devote ourselves in offering our customers the crusher equipment with the highest quality and efficient.
Twenty years involving in this field, Changlei has a wide product coverage in our two producing factories, based in Jiangsu Province and Shanghai, and is also one of the biggest manufacturer for professional wear-resistant materials used in crushers in China. We do supply the wear-resistant components to many crusher equipment factories through which we win the trust and reputation from both our customers and other crushing manufacturers
