Product Specifications
| Prod Model: |
PE250*400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Motor Type: |
AC |
| Crushing Ability: |
350mpa |
| Certification: |
ISO,CE |
| Type: |
Jaw Crusher |
| Crushing Style: |
Impact |
| Drive: |
Electric |
| Finished Surface: |
Cut Off Tool |
| Compressive Strength (',For Crushing): |
>300MPA |
| Application: |
Stone Industry |
| Crushing Degree: |
Intermediate Crusher |
Product Description
Jaw Crusher:
1. Large crushing ratio
2. Even granularity
3. Simple structure&easy maintenance
4. Low cost

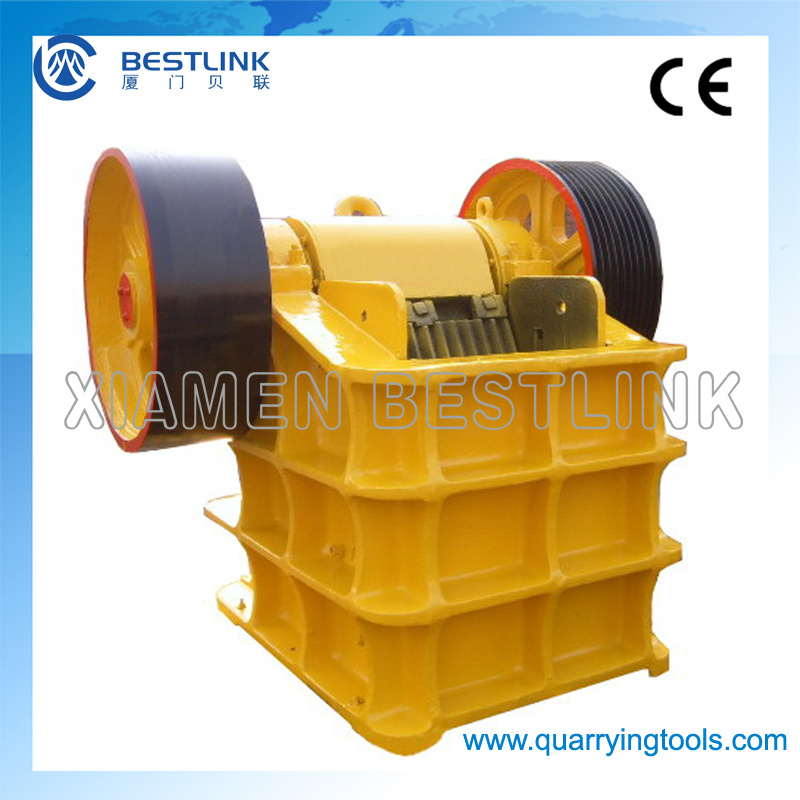

Stone Crusher-jaw crusher
Advantages:
1, large crushing ratio, uniform particle size.
2, easy to replace parts, maintenance, small amount of work.
3, simple structure, reliable operation and low cost.
4, low noise, less dust.
5, nesting population adjustment range, can meet different user requirements;
Product Description:
PE Jaw Crusher is our company set the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries and rock crusher specially designed. The product specification is complete, the feed size from 80-850 mm, PE-type jaw crusher crushing materials of compressive strength of up to 300Mpa, is a complete set of broken lines in the first choice of primary crushing equipment.
Working principle of Stone Crusher:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
| Type | Feed open
(mm) | Max.feeding size(mm) | Output
( mm ) | Capacity
(t/h) | Speed
(r/min) | Motor
(kw) | Weight
(t) | Overall dimensions ( mm) |
| PE150×250 | 150×250 | 120 | 10-40 | 1-3 | 250 | 5.5 | 0.6 | 720×660×850 |
| PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE500×750 | 500×750 | 425 | 50-100 | 4-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE600 × 900 | 600×900 | 500 | 75-160 | 50-180 | 250 | 55-75 | 17 | 2190×2206×2300 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 115-330 | 250 | 110 | 29 | 2660×2430×2800 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 132 | 52 | 3380×2870×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 8.5 | 2140×1660×1500 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 11 | 2720×1950×160 |
