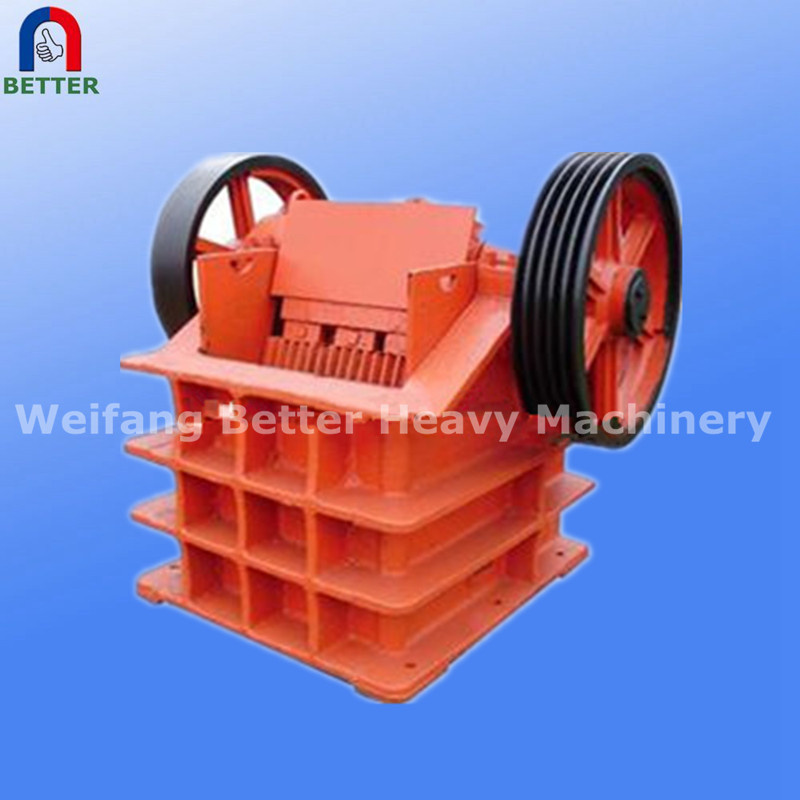

Product Specifications
| Prod Model: |
PE150X250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
2-6t/H |
| Power: |
5.5kw |
| Weight: |
1.1t |
| Dimensions: |
900X750X950mm |
| Type: |
Jaw Crusher |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
5.5kw |
| Application: |
Mining,Smelting,Building Materials,Highway,Railway |
| Materials: |
Medium and Super Hardness Materials |
| Outlet Size: |
10-40mm |
| Inlet Size: |
125mm |
Product Description
Outline:
The crusher applies to crush the medium and super hardness materials. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries.
Features:
High crushing ratio and uniform grain size,simple structure but reliable performance,easy maintenance and economical operation.
The main technical parameters:
Model
| Max feed size
(mm) | Discharge size
(mm) | Capacity
(t/h) | Power (kw) | Weight
(t) | Dimensions
L*W*H
(mm) |
| PE150*250 | 125 | 10-40 | 2-6 | 5.5 | 1.1 | 900*750*950 |
| PE250*400 | 210 | 20-60 | 8-16 | 15 | 3 | 1450*1280*1300 |
| PE250*500 | 210 | 20-80 | 13-21 | 18.5 | 4 | 1450*1350*1350 |
| PE400*600 | 350 | 40-100 | 14-36 | 30 | 6 | 1700*1700*1650 |
| PE500*750 | 400 | 50-120 | 30-80 | 45 | 11 | 2000*1950*1900 |
| PE600(A)*900 | 425 | 60-130 | 45-95 | 55 | 12.5 | 2200*1960*1950 |
| PE600*900 | 480 | 75-200 | 56-192 | 75 | 18 | 2400*2230*2400 |
| PE700*1000 | 550 | 80-210 | 65-225 | 75 | 19.5 | 2400*2280*2400 |
| PE700*1060 | 630 | 80-235 | 108-256 | 90 | 26 | 2500*2370*2780 |
| PE900*1200 | 750 | 95-265 | 186-396 | 110 | 45 | 3200*2820*3260 |
| PE1100*1400 | 900 | 120-260 | 200-450 | 132 | 75 | 3850*3050*4000 |
| PE1200*1500 | 1020 | 150-300 | 300-550 | 160 | 90 | 4050*3150*4200 |
| PE1500*1800 | 1200 | 220-550 | 380-720 | 220 | 122 | 5100*4700*4300 |
| PE1600*2100 | 1250 | 280-650 | 500-800 | 355 | 169 | 5600*5020*4950 |
Our company specializing in the production of crushing equipment, screening equipment, transportation equipment, feeding equipment, magnetic separation equipment, grinding equipment, sand and gravel production equipment, grinding and processing equipment, more than thirty series over 200 kinds of standard models. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3, 000 domestic customers with reliable and at the same time, we occupy more than 60% magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry.
There is no best, only better. Better has firmly implemented IS09001: 2000 international quality management system standard and IS010012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Better...
