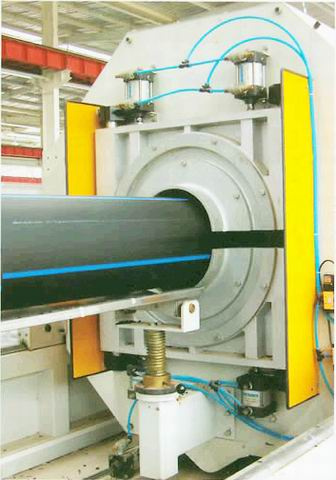

HDPE Solid Wall Pipe Extrusion Line
---Pipe diameter range:16-63mm 75-250mm 160-315mm 200-450mm 315-630mm 500- 800mm 630-1200mm
---The extrusion line comprise equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
2sets Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker
I. Pipe advantages and Usage
---HDPE water supplying pipe is with advatages of good hot melt, flexibility, corrosion resistance, and aging tolerance.
---- HDPE pipe is widely used in municipal water suuplying, city gas transportation and other areas.
II. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.
III. Spiral dihead & 25/25 co-extruder for mark line
---Diehead is spiral model. It has advantages of low melt temperature, good mixing, low cavity pressure, and stable performance.
----Special calibrating and cooling system. We use water film lubrication and water-ring cooling to fit for requirements of HDPE and PP material, to make sure accurate diameter and roundness of thick wall pipe when they are extruded at high speed.
IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.
| Style | PE16/63 | PE75/160 | PE160/315 | PE200/450 | PE-315/630 | PE-500/800 | PE-710/1200 |
| Main extruder | SJ-65/30 | SJ-75/33 | SJ90/33 | SJ90/33 | SJ-120/33 | SJ-120/33 | SJ-150/33 |
| Main motor | 55kw | 90kw | 132kwDC | 160kwDC | 185kwDC | 250kwDC | 400kwDC |
| Pipe diameter | Φ16-63mm | Φ75-160mm | Φ160-315mm | Φ200-450mm | Φ315-630mm | Φ850-1372mm | Φ960-1680mm |
| Capacity | 80-100kg/h | 180-250kg/h | 280-400kg/h | 350-500kg/h | 450-600kg/h | 700-900kg/h | 800-1200kg/h
|
| SPEG-160
|
| Pipe Size(mm) | Φ 50-Φ 160
|
| Extrusion Capacity(KG/H) | 400
|
Total installation Power(KW)
| 200
|
| Overall Dimension(M) | 36x1.8x3
|
| Total Weight(T) | 13 |
