Product Specifications
| Prod Model: |
YP27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Normal or CNC |
| Voltage: |
220V/380V |
| PLC: |
Mitsubishi / Siemens |
| Electric Units: |
Schneider |
| Motor: |
Tatung |
| Pump: |
Anson / Yuken |
| Pressure Gauge: |
Skon |
| Certificate: |
CE, ISO, SGS |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Inner Tube Curing Press |
| Type: |
Tire Machinery |
Product Description

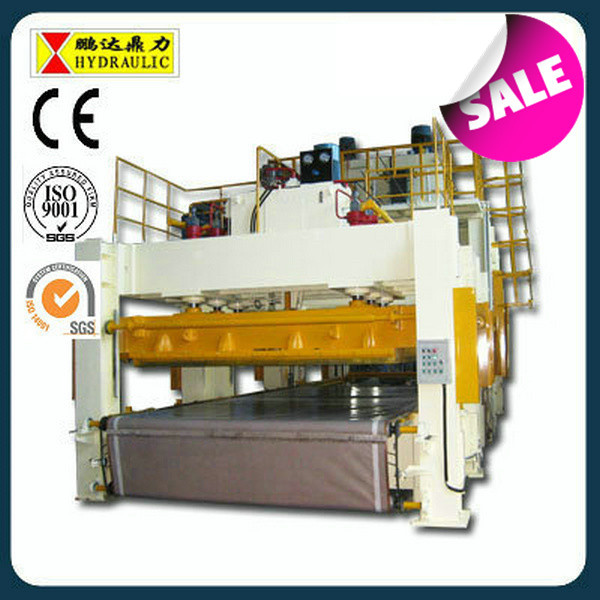

Pengda Single-action Plate Stretching Hydraulic Press
Characteristics:
1. Computer optimized design, four-post structure is simple, economical and practical; Frame structure rigidity, high precision anti-side load capability.
2. Hydraulic control with cartridge-based systems, reliability, long life, small hydraulic impact, reducing the connecting pipe and the leak point.
3. PLC control of the electrical system compact, sensitive, reliable, flexible.
4. With the adjustment, his hands a single cycle (with feeding device) continuous three operating mode.
5. Choose the control panel, not only to achieve certain extent, two kinds of constant pressure forming process, and can achieve a pad, no pad, the top three kinds of craft work cycle.
Application:
Sretching, bending, forming, blanking, flanging and stamping process, especially for the following areas:
L Automotive parts: Body panels, brake pads, fuel tank, chassis, axle, bumper etc.
L Husehold appliances: Washing machine parts, rice cooker parts, TV parts, refrigerator parts, etc.
L Ktchen: Sink, pot with stainless steel appliances, a variety of other containers.
L Other: Tractors, motorcycles, aerospace, aviation etc.
Package & Shipping
1. Outside package: Standard export wooden cases or shell feed plate
2. Inner package: Stretch film
Guarantee and After-sale Services
* one year guarantee for whole machine except consumables
* 24 hours technical support by e-mail and telephone
* use-friendly English software, user manual and detailed videos/CD
* abroad installation, commissioning and training(charge)
Company Information
We are specialized in all kinds of Hydraulic Press Machine (Servo Hydraulic Press, C-frame Hydraulic Press, CNC Hydraulic Press, Auto Accessories Hydraulic Press, Motor Buckle Hydraulic Press etc. ). We have long history and got ISO9001, ISO14001, CE, SGS certificate. Till today, our products have already spread over 100 countries and we have office in Philippines, Iran, France, South Africa, Canada, Brazil etc. Offer after service.
|
Type |
unit |
1T |
2.5T |
6.3T |
10T |
16T |
25T |
40T |
63T |
100T |
|
nominal force |
KN |
10 |
25 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
|
the maximum working pressure of the fluid |
Mpa |
4.2 |
5 |
5.1 |
8.1 |
13 |
20.3 |
23 |
24.7 |
26.3 |
|
the maximum opening |
mm |
300 |
400 |
450 |
500 |
550 |
600 |
700 |
800 |
800 |
|
the maximum stroke of the silder |
mm |
120 |
160 |
250 |
350 |
350 |
350 |
400 |
500 |
500 |
|
silder's down velocity |
mm/s |
60 |
55 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
silder's working velocity |
mm/s |
7-15 |
7-15 |
7-15 |
7-15 |
7-15 |
7-15 |
7-15 |
7-15 |
7-15 |
|
silder's return velocity |
mm/s |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
throat depth |
mm |
160 |
160 |
250 |
250 |
280 |
280 |
320 |
350 |
350 |
|
the size of the working platform F-R |
mm |
320 |
320 |
480 |
480 |
500 |
500 |
550 |
600 |
600 |
|
the size of the working platform L-R |
mm |
480 |
480 |
550 |
550 |
650 |
650 |
700 |
800 |
800 |
|
the height of the working platform |
mm |
700 |
700 |
710 |
710 |
710 |
710 |
710 |
715 |
715 |
|
the diameter for the cutting hole |
mm |
30 |
70 |
80 |
80 |
100 |
100 |
100 |
120 |
120 |
|
mortors' power |
KW |
1.1 |
2.2 |
3 |
3 |
4 |
4 |
4 |
5.5 |
5.5 |
|
the size of the machine tool F-R |
mm |
530 |
900 |
900 |
1100 |
1100 |
1100 |
1350 |
1530 |
1630 |
|
the size of the machine tool L-R |
mm |
500 |
730 |
730 |
960 |
960 |
960 |
1000 |
1600 |
1600 |
|
the height of the machine |
mm |
1470 |
1800 |
1910 |
2200 |
2300 |
2300 |
2700 |
2900 |
2600
|
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
