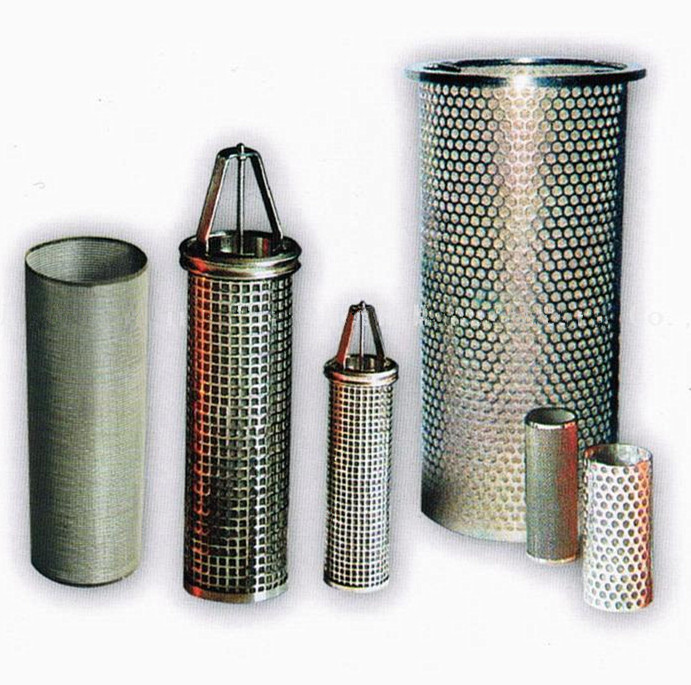

Perforated Filter:
Perforated metal material:
stainless steel plate, steel plate, copper plate, aluminum plate, nickel plate, Al-Mg plate.
Production process:
Raw Material(metal sheet,stainless steel plate)---Meausre Size----Choose hole mold---Perforated with machine---Determination---Packing---load
Perforated Tubing
Tubes for sound insulation, exhaust
Gas, air conditioning and ventilation
Technology
Perforated filter tubes and supports
For filter elements
Hot-dip galvanised tubes with slotted
Bridge perforation used as well filters
Perforated sheets used as support
Tubes for filter cartridges
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area |
| 0.033 In. | 0.84mm | 0.055 | 0.0165-0.0198 IN. | 0.40-0.50mm | 28.00% |
| 0.045 In. | 1.14mm | 0.066 | 0.0165-0.0198 IN. | 0.40-0.50mm | 37.00% |
| 1/16 In. | 1.59mm | 3/32 In. | 0.026-0.053 IN. | 0.66-1.35mm | 41.00% |
| 1/16 In. | 1.59mm | 1/8 In. | 0.046-0.053 IN. | 1.17-1.36mm | 23.00% |
| 3/32 In. | 2.38mm | 9/64 In. | 0.054-0.065 IN. | 1.37-1.65mm | 40.30% |
| 3/32 In. | 2.38mm | 5/32 In. | 0.026-0.079 IN. | 0.66-2.00mm | 33.00% |
| 3/32 In. | 2.38mm | 1/4 In. | 0.033-0.053'' | 0.84-1.35mm | 12.50% |
| 1/8 In. | 3.17mm | 3/16 In. | 0.026-0.129'' | 0.80-2.89mm | 40.00% |
| 1/8 In. | 3.17mm | 7/32 In. | 0.026-0.039'' | 0.66-0.99mm | 29.60% |
| 5/32 In. | 3.97mm | 3/16 IN. | 0.026-0.065'' | 0.66-1.65mm | 63.00% |
| 3/16 In. | 4.76mm | 1/4 IN. | 0.026-0.079'' | 0.66-2.00mm | 50.00% |
| 3/16 In. | 4.76mm | 5/16 IN. | 0.029'', 0.059'' | 0.73mm, 1.50mm | 32.00% |
| 1/4 In. | 6.35mm | 5/16 IN. | 0.026-0.079'' | 0.66-2.00mm | 58.00% |
| 1/4 In. | 6.35mm | 3/8 IN. | 0.012'', 0.026-0.065'' | 0.30mm, 0.66-1.65mm | 40.00% |
| 1/2 In. | 12.70mm | 11/16 IN. | 0.059'', 0.121'' | 1.50mm, 3.00mm; | 48.00% |
Anping Yunde Metal Co., Ltd is located at the metal wire mesh production base in Anping County name as China Wire and wire mesh Town. Our main products are Expanded Metal, Perforated Metal, Bar grating Welded Wire Mesh, Crimped Wire Mesh, Stainless Steel Wire mesh, Chain Link Fence.
