Product Specifications
| Prod Model: |
WL-JT-120CG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Zones: |
120 Wireless Zones & 2 Wired Zones |
| Alarm Time: |
Adjustable |
| Frequency: |
315MHz or 433MHz |
| Siren Volume: |
Adjustable |
| Timing Arrm/Disarm: |
4 Groups |
| GSM Frequency: |
850/900/1800/1900MHz |
| Groups Of Phone No.: |
6+3 |
| Voice Record: |
10s |
| Zone Setting: |
Can Be Independent or Together |
| System State: |
Can Be Checked Via SMS |
| Type: |
Anti-Theft Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Passive |
| Certification: |
CCC |
| Application: |
Indoor |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electro-Optical Type |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥110dB |
| Receive Frequency: |
433.92MHz |
| Usage: |
Auto |
Product Description

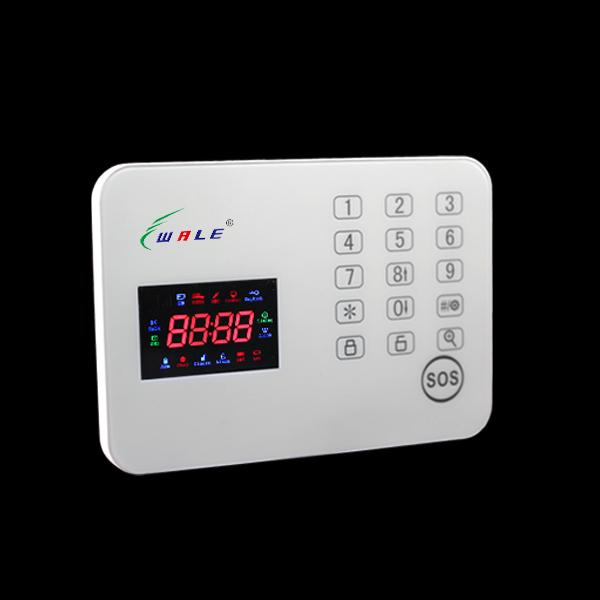

GSM Touch panel wireless home security alarm system
Model: WL-JT-120CG
- Support Language of English, German, Spanish, Russian, French
Function
l Digital clock display with two groups alarm function, time optional.
l Support GSM mobile network, provide redundancy for extra stability.
l Allow up to 120 wireless defense zones and 2 wired zones.
l Each can be defined as one of the 8 zone types including NORMAL, STAY, INTELLIGENT, EMERGENCY, CLOSED, HELP SENIOR, WELCOME and CHIME.
l Four sets of scheduled arm/disarmed function, each time you can select the included period of time and different defense zone, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
l Support configuration via keyboard , phone ( handset ) or SMSmessages to System
l 6 group voice alarm phone number for alert calling, 3 group phone number for help senior, 6 group for SMS messaging, numbers saved inside EEPROM without lost upon power failure.
l Different zones can dial a pre-set telephone number.
l Support ISD automatic voice mailbox for playback message upon alert. Maximum length of voice message is 10 seconds.
l Telephone (phone) long-distance telephone control for arming, disarming, monitoring, remote announcement.
l1 Set of normally open signal outputs, relay linkage output, home appliances remote control can be realized.
l Wireless intelligent study coding, compatible with PT2262 normal encoding and a 1527 encoding, convenient and flexible for adding or reducing accessories. Maximum support 150 remote control and 150 sensors.
Technical Parameters
Input Voltage |
|
DC12V/1A |
Standby Current |
|
<55mA |
Alarming Current |
|
<450mA |
Wireless Frequency |
|
433MHz, 2262/4.7MΩ |
GSM Frequency |
|
900/ 1800/ 1900MHz |
Back-up Battery |
|
NI-HI AAA*6 DC7.2V |
Siren Volume |
|
110dB |
Package Include:
l 1X alarm panel
l 1X PIR detector
l 1X door sensor
l 2 X remote control
l 1X siren
l 1X adapter
l 1X user manual
FAQ
1. How to download home security alarm system APP?
Search "gsm alarm" in iOS APP store, Android store or scan QR code from the package of our products.
2. Warranty
Normally it's one year, but if you can be our agent it will be 2 years.
3. Why choose us?
AS the professional manufacturer in home security system with 14years experience, we developed series of alarm system with high quality and competitive price. In first business, sample order is available. With professional R&D team to provide OEM&ODM service.
4. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by 86-18219207915
5. Are your samples free or need cost?
It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.
6. How can I get your samples
You're welcomed to email us for checking. It will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
