Product Specifications
| Prod Model: |
LP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Type: |

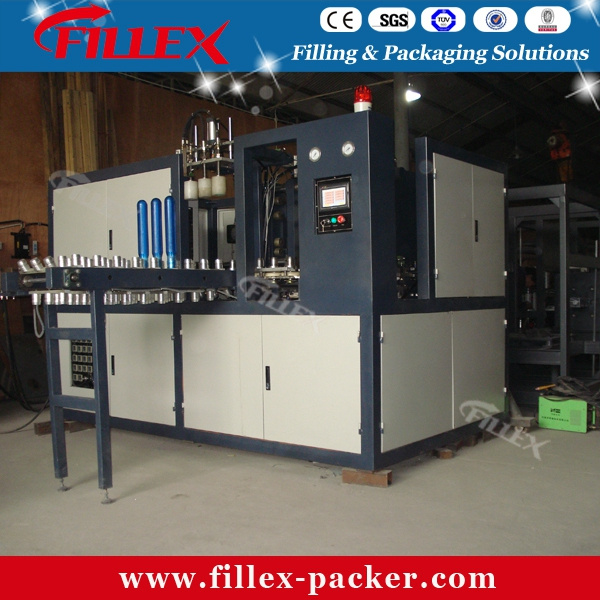

Blow Molding Machine |
| Model: |
PLC-2.0/10 |
| Condition: |
New |
| Warranty: |
1 Year |
Product Description
Technical Features:
Compressor model: LPC-2.0/10
Fluid to be compressed AIR
Speed: Rpm1050
Discharge pressure: Bar(g)8
Effectively produce volume 2.0m3/min
Minimum electric motor power Kw 11
Nr. Cylinders: 2
Nr. Stages: 2
Strok: Mm 102
1st stage cylinder dia.: Mm130
2ND stage cylinder dia.: Mm 76.2
Dimension(L× W× H): Mm1700× 760× 1440
Weight: Kg505
Delivery connector: 11/4"NPT
Automatic Pressure Unloading System, For No Load Starting
Check Valve On Outlet
"V"-Belt Transmission, Including:
Flywheel Grooving
Grooved Dribing Pulley
"V"Belt Set
Metallic Guard
Motocompressor On Mentallic Skid
Set Bullt According To EU Standards
Two-cylinder Compressor, In"V"Frame Arrangement, Air Cooled, Single Effect, Two-stage
Compression, Fitted With:
Intake Removable Filter, With Silencer
Normal Inertia Flywheel, For V Belts Transmission
Splashing Lubrication To All Moving Parts
Light Alloy Pistons, With PTFE Based Segments
Cylinder Heads, With Indibidual Valve Pockets
Hoerbiger Type Automatic Valves, Big Flow Area, Operating Much Below Their Nominal Characteristics.
SKF Main Ball Bearing On The End Of The Crankshaft
Two Chamber Blocks Between Casing And Cylinders. Cylinder Side Chamber Is Large Enough To Avoid The Piston Rod Part In Contact
With The Mechanical Element, Could Get In Contact With The Packing
Air-cooled Aftercooler, Furnished With Safety Valve.
| The air system will support 2m3/min low pressure air working at 10 bars |
| Model | Free Air Delivery
M3/min | Pressure
Mpa | Rotating speed
r/min | Compressing stage | Dimension(mm) | Weight(Kg) |
| PLC-2.0/10 | 2 | 1 | 1050 | 2 | 1700× 760× 1440 | 505 |
