Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Pixel Density: |
40,000 dots / m² |
| Display Function: |
Image & Text Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP60 |
| System Operating Platform: |
WIN XP |
| Application: |
Stage Performance |
| Pixel Pitch: |
5mm,6mm,7.62mm,10mm |
| Certification: |
CE,RoHS,FCC |
Product Description
PRODUCT FEATURES
1. Adopting high quality & brightness LEDs with high luminous efficiency and less brightness decay, the displays have good stability and high reliability;
2. High pixel density, adjustable brightness, good uniformity, outstanding image quality, bright color, realistic visual performance;
3. Long life span and energy saving.
APPLICATION
It can be widely used in large stadium, railway waiting room, TV live show, exhibition hall, big party show and vocal concert and so on.
|

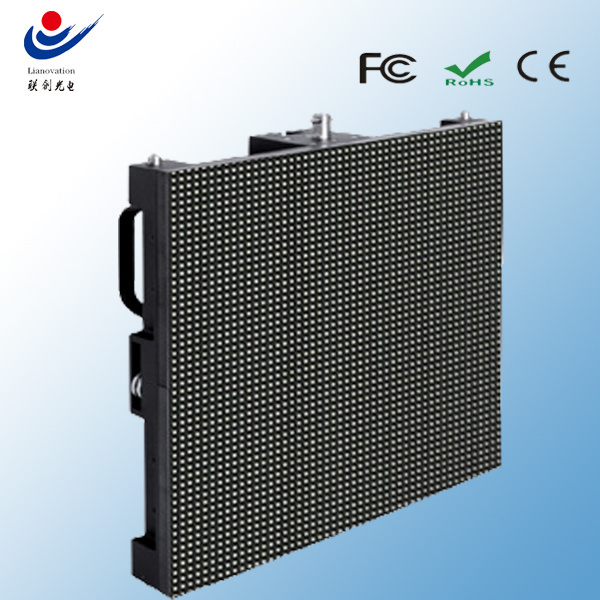

INDOOR FULL COLOR LED DISPLAY |
|
Specification |
PH5SMD full color |
PH6 SMD full color |
PH7.62 SMD full color |
PH10 SMD full color |
|
LED encapsulation mode |
Three in one |
Three in one |
Three in one |
Three in one |
|
Pixel pitch |
5mm |
6mm |
7.62mm |
10mm |
|
Physical density |
40000 LEDs/m² |
27777 LEDs /m² |
17222 LEDs /m² |
10000 LEDs /m² |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module size |
160mm*80mm |
192mm*96mm |
244mm*122mm |
320mm*160mm |
|
Cabinet dimensions |
640mm*640mm |
768mm*576mm |
732mm*488mm |
1280mm*960mm |
|
Pixel/ Cabinet |
128*128 |
128*96 |
96*64 |
64*48 |
|
Pixel density |
16384LEDs /cabinet |
12288 LEDs /cabinet |
6144 LEDs / cabinet |
12288LEDs / cabinet |
|
Cabinet weight |
48 kg/m² |
45kg/m² |
40kg/m² |
35kg/m² |
|
Optimum viewing distance |
> 4m |
> 6m |
> 6m |
> 10m |
|
Horizontal viewing angle |
120° |
120° |
120° |
120° |
|
Vertical viewing angle |
100° -120° |
100° -120° |
100° -120° |
100° -120° |
|
Average power consumption |
600-1300W/m² |
550-1200W/m² |
500-1100W/m² |
400-1000W/m² |
|
Max power consumption |
≤ 1500W/m² |
≤ 1300W/m² |
≤ 1200W/m² |
≤ 1000W/m² |
|
Display card |
DVI display card |
DVI display card |
DVI display card |
DVI display card |
|
Control mode |
Synchronous control |
Synchronous control |
Synchronous control |
Synchronous control |
|
Drivers |
Constant current |
Constant current |
Constant current |
Constant current |
|
Driving method |
1/16 Scan |
1/8 Scan |
1/8Scan |
1/8Scan |
|
Frame refresh rate |
≥ 60Hz |
|
Data refresh rate |
≥ 180Hz |
≥ 180Hz |
≥ 180Hz |
≥ 180Hz |
|
White balance brightness |
≥ 2000cd/ |
≥ 1800cd/ |
≥ 1500cd/ |
≥ 1200cd/ |
|
Working temperature |
-10º C-50º C |
|
Operation voltage |
220V± 10% |
|
Gray level /Color |
16.7Mcolors (full color synchronization), 64K colors (dual color synchronization), 256 colors (single color synchronization) |
|
Brightness adjusting software |
16 grades adjustment |
|
Computer operating system |
WINXP, WIN2000, WIN98 and so on |
|
Video signal |
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on |
|
Control system |
PCTV card (optional) + DVI Display card + Master card + Optical fiber transfer (optional) |
|
MTBF |
≥ 9000 hours |
|
Lifetime |
50000 hours |
|
Pixel failure |
< 0.0001, and at discrete distribution |
|
Software |
LED studio (MDK) |
