Product Specifications
| Prod Model: |
SKT340/08E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Thyristor |
| Package: |
to |
Product Description
Features

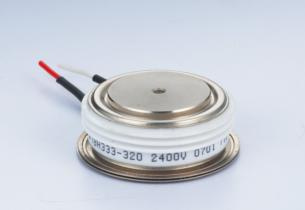

Hermetic metal case with ceramic insulator
Capsule package for double sided cooling
Shallow design with single sided cooling
International standard case
Off-state and reverse voltages up to 1800 V
Typical Applications
DC motor control
(e. G. For machine tools)
Controlled rectifiers
(e. G. For battery charging)
AC controllers
(e. G. For temperature control)
Recommended snubber network
E. G. For VVRMS ≤ 400 V:
R = 33 Ohm/32 W, C = 0, 47 μ F
|
V RSM |
V RRM, V DRM |
I TRMS = 700 A (maximum value for continuous operation) |
|
V |
V |
I TAV = 340 A (sin. 180; DSC; T c = 82 ° C) |
|
900 |
800 |
SKT 340/08E |
|
|
|
1300 |
1200 |
SKT 340/12E |
|
|
|
1500 |
1400 |
SKT 340/14E |
|
|
|
1700 |
1600 |
SKT 340/16E |
|
|
|
1900 |
1800 |
SKT 340/18E |
|
Symbol |
Conditions |
Values |
Units |
|
|
|
I TAV |
sin. 180; T c = 100 (85) ° C; |
230 ( 323 ) |
A |
|
I D |
2 x P8/180; T a = 45 ° C; B2 / B6 |
300 / 420 |
A |
|
|
2 x P8/180F; T a = 35 ° C; B2 / B6 |
620 / 870 |
A |
|
I RMS |
2 x P8/180; T a = 45 ° C; W1C |
330 |
A |
|
|
|
I TSM |
T vj = 25 ° C; 10 ms |
5700 |
A |
|
|
T vj = 125 ° C; 10 ms |
5200 |
A |
|
i² t |
T vj = 25 ° C; 8, 3...10 ms |
162000 |
A² s |
|
|
T vj = 125 ° C; 8, 3...10 ms |
135000 |
A² s |
|
|
|
V T |
T vj = 25 ° C; I T = 1000 A |
max. 1, 9 |
V |
|
V T(TO) |
T vj = 125 ° C |
max. 1 |
V |
|
r T |
T vj = 125 ° C |
max. 0, 9 |
mOhm |
|
I DD; I RD |
T vj = 125 ° C; V RD = V RRM; V DD = V DRM |
max. 40 |
mA |
|
|
|
t gd |
T vj = 25 ° C; I G = 1 A; di G /dt = 1 A/µ s |
1 |
µ s |
|
t gr |
V D = 0, 67 * V DRM |
2 |
µ s |
|
|
|
(di/dt) cr |
T vj = 125 ° C |
max. 125 |
A/µ s |
|
(dv/dt) cr |
T vj = 125 ° C; SKT...D / SKT...E |
max. 500 / 1000 |
V/µ s |
|
t q |
T vj = 125 ° C, |
50...150 |
µ s |
|
I H |
T vj = 25 ° C; typ. / max. |
150 / 400 |
mA |
|
I L |
T vj = 25 ° C; typ. / max. |
300 / 1000 |
mA |
|
|
|
V GT |
T vj = 25 ° C; d. c. |
min. 2 |
V |
|
I GT |
T vj = 25 ° C; d. c. |
min. 150 |
mA |
Zhejiang Huajing Rectifier Co., Ltd. Established in 1992, is specialized in production of electric power semiconductor components, complete silicon rectifying equipment and instrument&LED panel meter, and possesses reinforced technical force, excellent equipment, advanced workmanship, and complete inspection measure. The product has obtained national industrial production permit and been certified according to ISO9001 and CE.
HUAJING company has main products: Silicond controlled rectifier(SCR), phase control thyristor, fast switching thyristor, bi-directional thyristor, thyristor/diode module, solid state relay. Shunt, switching power supply, heatsinks, LED products, instrument&panel meter, and many low volatge electrical products etc.
Welcome your kind attention and inquiry. We are appreciated your supporting. If you have any questions, please feel free to contact us.
