Product Specifications
Prod Model: |
TR-017 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Customize: |
Customize |
Material: |
Phenolic Resin |
Diameter: |
4-30mm |
Surface Treatment: |
Full Body Tiles |
Usage: |
Exterior Tiles |
Refractoriness: |
-250~150 |
Color: |
Yellow |
Apparent Density: |
40-200 |
Product Description

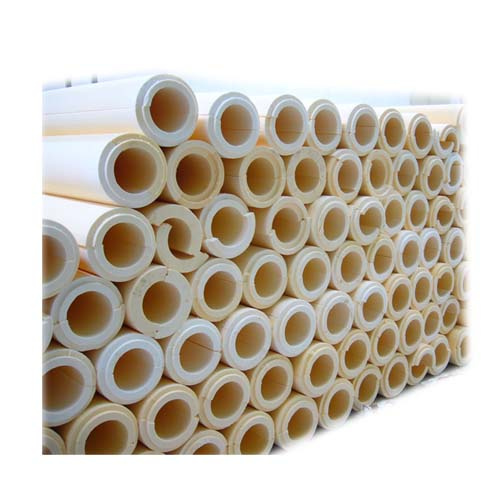

Phenolic Foam Pipe Sections are fire resistant pipe sections made of non-flammable, superior and rigid insulation material. Pipe sections can be used for heat and temperature insulation in any industry.
Phenolic Foam Pipe Sections are cost effective and better than conventional insulation materials because of various distinct properties like Low K Value, highest fire rating standards with 100% fire retardance, Correction & Chemical Resistance and tested as per BS standards.
Advantages over conventional insulation materials.
1. It is non - burning
2. Toxicity of Smoke is nil
3. Flame Spread is very low
4. During Continuous fire, it turns dark brown and shows surface cracks but does not either burn or loose shape.
Advantages of Phenolic Foam Pipe Section:
1. Easy Installation
2. Clean and seamless appearance
3. Space and energy savings
4. Light weight for handling
5. Comparing to fiberglass, there is absolutely no skin irritations
Applications of Phenolic Foam Pipe Section:
1. Hot and cold water pipelines (including underground lines)
2. Ethanol plants
3. Petroleum and chemical transportation pipelines
4. Food processing plants
5. For any pipes that require insulation
Phenolic foam |
Unit |
Specification |
Density |
kg/m3 |
40 |
Conductivity |
W/mk |
0.02 5 |
Durability of heat |
°C |
150 |
Durability of cold |
°C |
-250 |
Adhesive strength |
KN |
135 |
Compressive strength |
Mpa |
0.2 |
Absorption rate |
(v/v)% |
1.9 |
