Product Specifications
| Prod Model: |
UK-3N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keyword: |
DIN Rail Power Distribution Block |
| Item No.: |
UK 3n |
| Conductor Size: |
11~20 AWG |
| Rated Voltage: |
800V |
| Rated Current: |
32A |
| Entry Type: |
Side-Entry |
| Insulation Material: |
PA66 |
| Connect Ways: |
Screw-Clipping |
| Mounting Type: |
Ns 32, Ns 35/7.5, Ns 35/15 |
| Delivery Time: |
3~15 Working Days |
| Application: |
Lighting |
| Environmental Protection: |
General |
| Connection Mode: |
Threaded Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Ygen |
Product Description

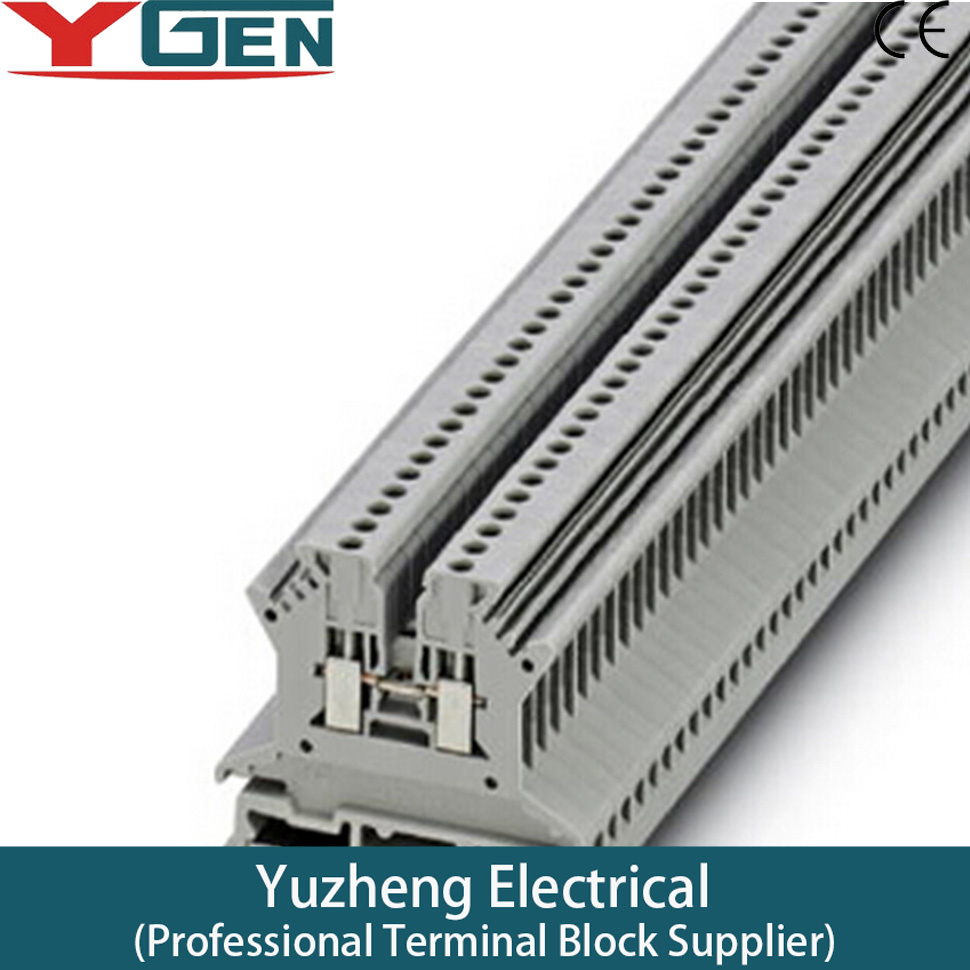

din rail connector blocks
UK series combined terminal adopts / Din rail terminal block
UK series combined terminal row adopts frame type screwconnection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz (60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm² conncction conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.
UK Terminals Size:
UK1.5N UK2.5B UK3N UK5N UK6N UK10N UK16N UK35B UK50 UK95 UK150
UK Ground Terminals Size:
USLKG2.5 USLKG3 USLKG5 USLKG6 USLKG10 USLKG16 USLKG35
Color : Grey/Yellow
Features of UK terminal blocks:
1.UK terminal blocks with the mounting stud so can be used on TH35-7.5 rail and G type rail,like G32-15L G32-18,the closed screw can make the screwdriver work perfectly
2.To the terminal block with many sections fit out the unit accessory like header,separating plate and so on
3.Electric potential allocated can through accessing to the center of terminal block fixed type or interesting to the edgegrip of the terminal blocks to make that true
4.Compared with the same common the grounding blocks and N type terminal blocks ,we adopted marking system can realize ZB ...combination of digital unified label
| Part No.: | UK3N |
| Manufacturer: | Yueqing Yuzheng |
| Product Category: | DIN Rail Terminal Blocks |
| Certificate: | CE |
| Brand: | Ygen |
| Color: | Gray |
| Number of Positions: | 2 |
| Current Rating: | 32 A |
| Voltage Rating: | 800 V |
| Resistibility | 100MΩ |
| Wire Range: | 0.2-2.5mm2 |
| Connection Method: | Screw |
| Flammability Rating: | UL 94 V-2 |
| Mounting Type: | NS 32, NS 35/7.5, NS 35/15 |
| Series: | UK |
| Factory Pack Quantity: | 100 pcs |
| Type: | Feed Through Terminal Block |
| UK terminal block data |
| Model | Hard Wire(mm2) | Soft Wire(mm2) | Rated Current(A) | Rated Voltage(V) | Dimension(mm) |
| UK2.5B | 0.2-4 | 0.2-2.5 | 32 | 690 | 6.2 x 42.5 x 42 |
| UK3N | 0.2-4 | 0.2-2.5 | 32 | 800 | 6.2 x 42.5 x 42 |
| UK5N | 0.2-6 | 0.2-4 | 41 | 800 | 6.2 x 42.5 x 47 |
| UK6N | 0.2-10 | 0.2-2.5 | 57 | 800 | 6.2 x 42.5 x 47 |
| UK10N | 0.5-16 | 0.5-10 | 76 | 800 | 10.2 x 42.5 x 47 |
| UK16N | 2.5-25 | 4-16 | 101 | 800 | 12.2 x 42.5 x 54 |
| UK35N | 0.75-50 | 0.75-35 | 150 | 1000 | 15.2 x 50.0 x 62 |
| UKH50 | 16-50 | 25-50 | 150 | 1000 | 20 x 70.5 x 83.5 |
| UKH95 | 25-95 | 35-95 | 232 | 1000 | 25 x 83 x 97.5 |
| UKH150 | 35-150 | 50-150 | 309 | 1000 | 31 x 100 x 118.5 |
