Product Specifications
| Prod Model: |
ZC-AA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
PLC Touching Screen |
| Name: |
Phone Shell Metallizing Coating Machine |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
Product Description
Phone Shell Metallizing Coating Machine
1.Introduction:The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
Fast tableware Magnetron Sputtering Coating Machine. Uses the magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry.
The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection, etc.
2.Applied industry:
Plastic, ceramic, computer, mobile phone, high-end industry, home appliance, aviation, etc. It can coat the composite metal film, alloy film, transparent (translucent) film, nonconductive film, electromagnetism shield film, special film, etc.3.Parameter:| Mode Dimension | JTL-1000 | JTL-1200 | JTL-1400 | JTL-1400 |
| 1200*1400mm | 1200*1500mm | 1400*1800mm | 1400*1800mm |
| Application | phone shell, computer, decoration |
| Film type | Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc. |
| Power source | Resistance evaporation power, DC magnetron power, RF power |
| Sputtering and electrode structure | Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode. |
| Vacuum chamber structure | Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side. |
| Ultimate vacuum | 8.0*10 -4 pa |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Pump time | Pump from atmosphere to 8.5*10 -3, 15 minutes |
| Workpiece motion mode | Public rotation/ Frequency control |
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC |
| Remark | Our company can design the dimension of the equipment according to customer' s special technique requirement. |

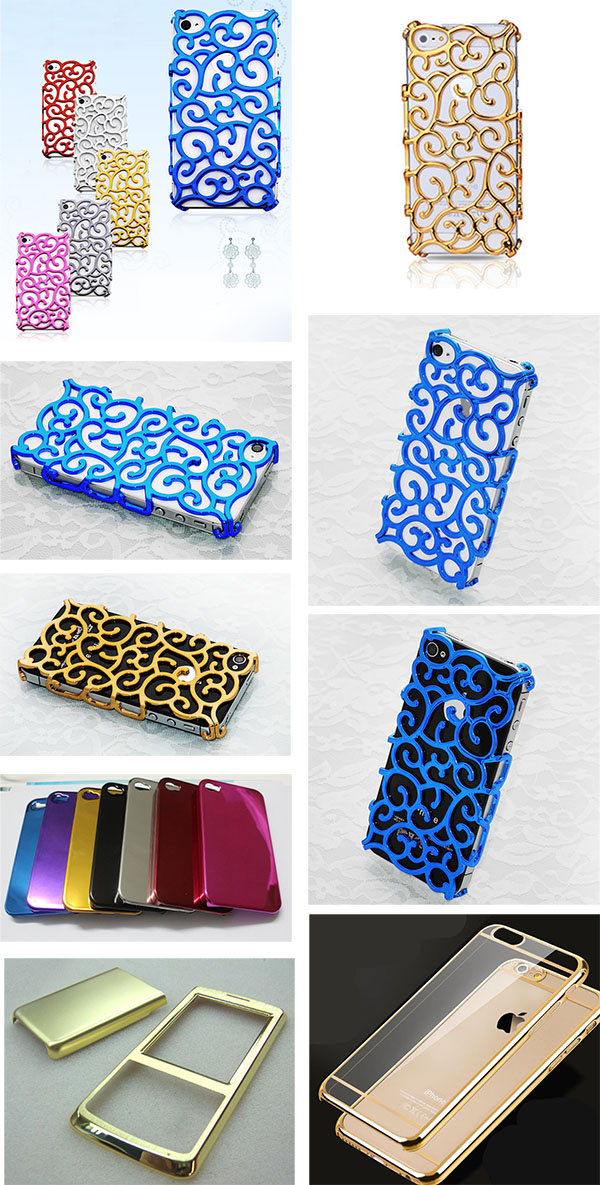

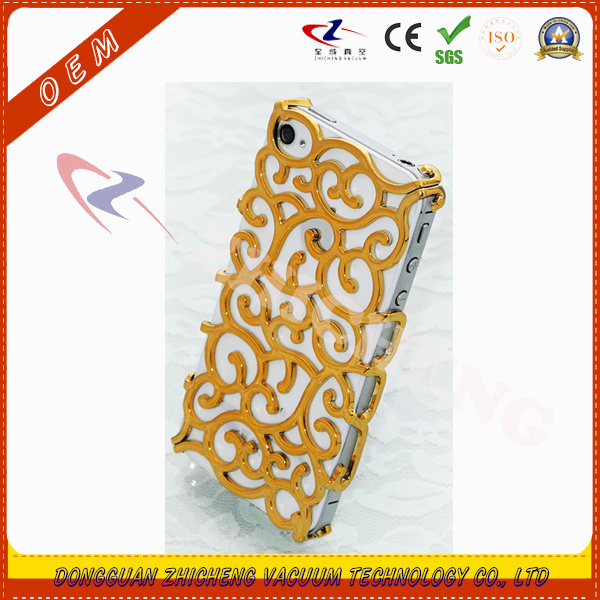

Here is some photos of the Vacuum Coating Machines and our coated samples for your reference:
