Product Specifications
| Prod Model: |
XH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Type: |
Flotation Separator |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
| Voltage: |
Depend on The Model |
| Weight: |
Depend on The Model |
Product Description

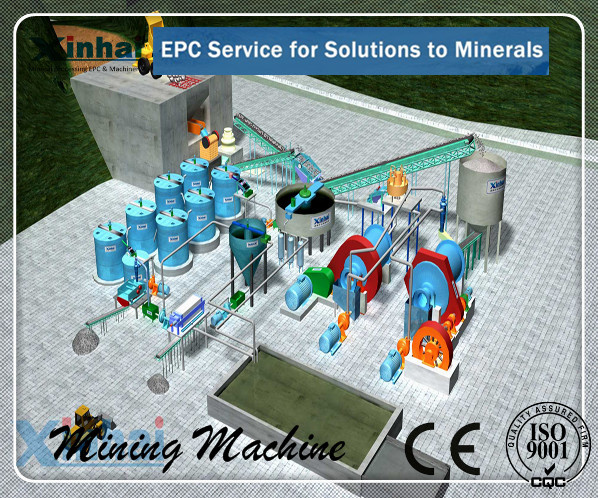

Phosphorite Flotation Equipment Production Line
Process Introduction
According to different ore properties of phosphate, Xinhai designs many processes for it such as flotation, gravity separation, chemical leaching, combined dressing, photoelectric sorting, etc. Flotation is widely used in phosphate including direct flotation, reverse flotation, reverse flotation and flotation, and double-reverse flotation process.
Application
Phosphorite Flotation Product Line is applied for complex structure phosphorite with fine particle distribution, closed embeddedness relationship, difficult monomer dissociation, etc.
[Process Description ]
Direct flotation inhibits gangue minerals by effective inhibitors, and the phosphorus mineral is enriched in foam by collecting agent. This process is suitable for low grade phosphate ores including magmatite type apatite and sedimentary metamorphic type phosphorite ore
Reverse Flotation Process
Mainly used for the separation of phosphate and dolomite; Dolomite is collected with fatty acid collector in weak alkaline medium, and the phosphorus mineral is enriched in the groove. The biggest advantage of reverse flotation process is the realization of the normal temperature flotation.
Double-Reverse Flotation Process
In alkaline conditions, double-reverse flotation makes the silicate surface positively charged, and the anionic collector separates minerals meaning floating dolomite firstly, and then reverse floating silicate; The product is heavy concentrate in groove; The production line can be carried out at normal temperature and coarse grain condition.
[ Case ]
A phosphorite in Yunnan belonged to low grade siliceous and calcareous collophanite with fine particles and close distribution of useful minerals and gangue minerals. The plant adopted flotation and reverse flotation process, but there were some defects in the flotation reagent dosage and high temperature. In order to reduce the cost, the plant authorized Xinhai to take technical reformation. Xinhai used the double reverse flotation for phosphorite after the test. Xinhai achieved 40% concentrate grade when the crude ore grade was 18.55%. Indexes comparison as follow:
| Comparison of Reformation | Process | Grade of Phosphate Concentrate
/% | Recovery Rate of Phosphate Concentrate
/% |
| Before Reformation | Flotation and Reverse Flotation Process | 29.74 | 70.27 |
| After Reformation | Double-Reverse Flotation Process | 32.58 | 72.18 |
Founded in 1993, Yantai Xinhai has 20 years experience as a Chinese leader in the mining machinery manufacture and mining EPCM projects service.
With large number of research institutes(machinery research institute, mine design research institute, installation and commissinging department, etc. ) and service engineers, our customers have a tremendous depth of technical resources they can rely on. What is more, 80% equipments for mineral processing have been improved by Xinhai and some technology reaches the international advanced level. Xinhai Mining Machinery Company has become the research & developing base of mining and mineral processing machinery industry in China.
In addition, Xinhai is committed to providing premium EPCM services for customers, which include mineral processing test, mine design, equipment manufacture, installation and commissioning, personnel training and target achievement. There are more than 400 high-performance EPCM projects all over the world which are provided by Xinhai Company.
What you need is what we can do. For an evaluation of your needs, please contact us at any time. Xinhai believes you will be impressed with the experience, the proficiency and the helpful attitude you find at every level within Yantai Xinhai Mining Machinery Company.
