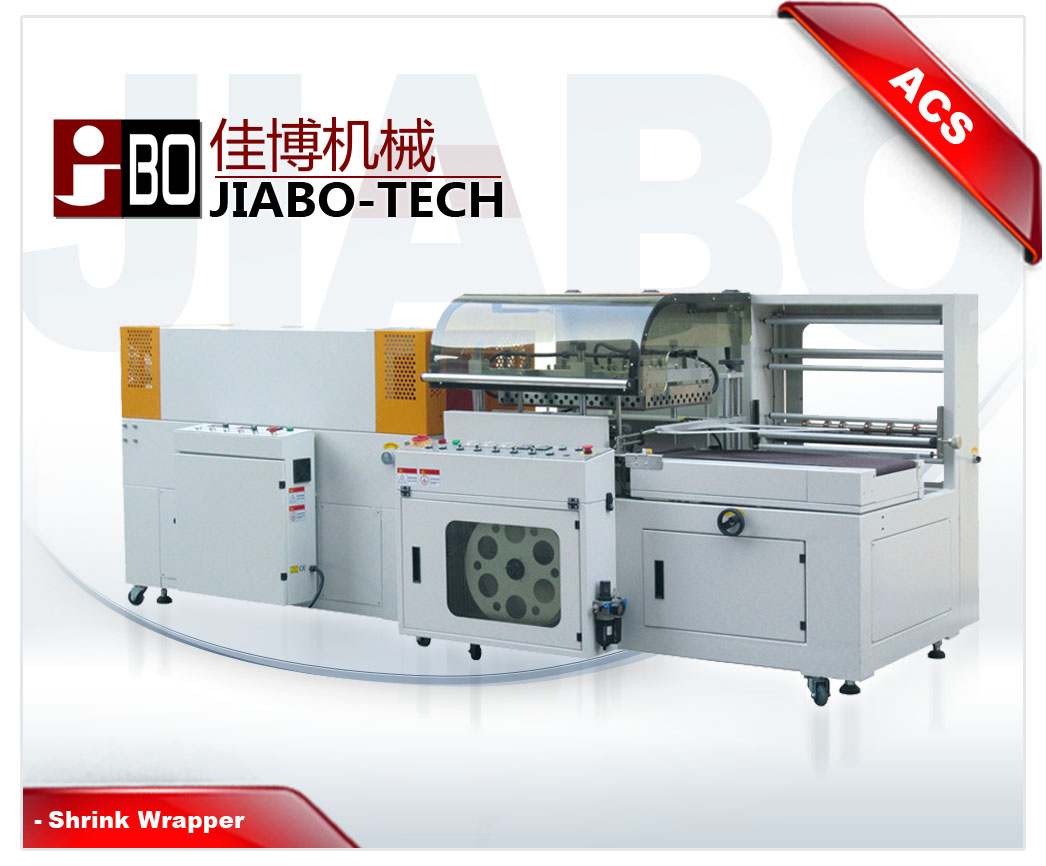

Product Specifications
| Prod Model: |
ACS-5545D+AHP-5030W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shrinking: |
Carton,Phone |
| Packing Size: |
W+H ≤430mml+H≤250mm |
| Speed: |
20~35PCS/Min |
| Power Supply: |
220V 50/ 60Hz , 1 Phase |
| Packaging Materials: |
Film |
| Packaging Type: |
Shrink |
| Manner Of Packing: |
Film |
Product Description
Specification:
L Vertical cutting system, prevent crumples
L Sealing height is adjustable to ensure the sealing line is in the middle of the product height.
L Adopt horizontal and vertical sensors, easy to switch, fit for thin or small products.

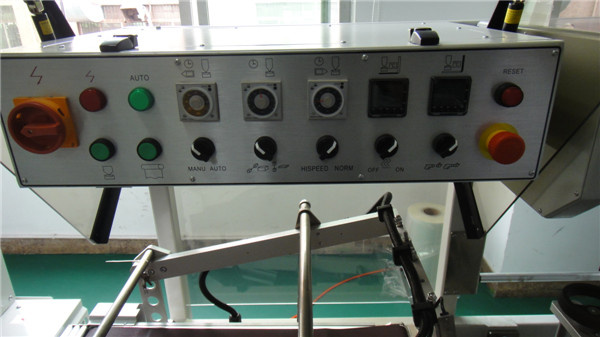

L Equipped with PLC control system and safety protecting and alarm devices;
L Constant sealing with no need of changing. Easy to operate and maintain;

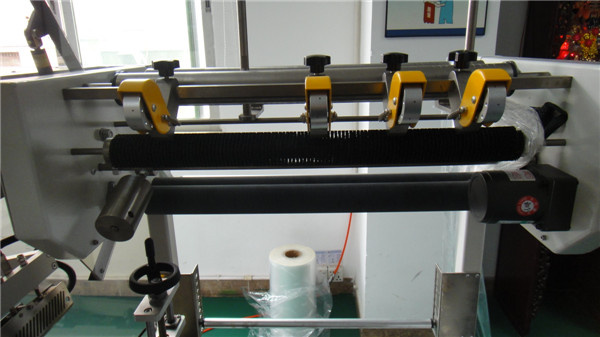

L The length of shrink film is automatically adjusted by the electric yes and control timer;
L The added horizontal and vertical electric eyes provide options for switchover.
L Automatically perform the scraps discharge process. Leave no mess and keep your working space tidy and clean;
L Imported parts are adopted to ensure the machine's stable running with high speed.
L The cutter adopts vertical system drive to ensure sealing lines straight and tight.

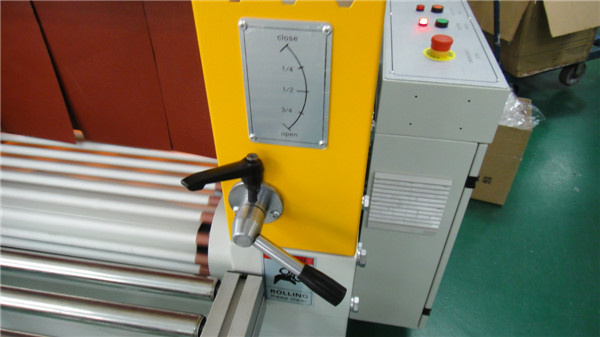

L The sealing height can be adjusted based on the product height.
L Particularly suitable for high and big products.
L The machine is applicable to industries like printing, color boxes, greeting cards, photo albums, picture frames, pharmaceutical, electronics, daily chemicals, cosmetics etc.
| Model | ACS-5545D | AHP-5030W |
| Power supply | 220V 50/ 60Hz , 1 Phase | 220V/380V 50/ 60Hz , 3 Phase |
| Power | 5.5KW | 13KW |
| Packing size | W+H ≤430mmL+H≤250mm | L1000×W450×H250mm |
| Cutter size/tunnel size | L550×W450mm | L1200×W500×H300mm |
| Packing speed | 20~35pcs/min | 20~50pcs/min |
| Air pressure | 5.5kg/cm³ | / |
| Max current | 10A | 30A |
| Machine weight | 700kg | 350kg |
| Machine dimension | L1850×W1450×H1410mm | L1770×W1000×H1240mm |
For decades, JIABO TECH Co., Ltd. Has been a leading provider of processing & packaging solutions for pharmaceutical, cosmetics and food applications. We focused on the high quality standards and breakthrough innovations to guarantee efficiency and reliability of our products. Based our strategy of customer-focused, we work for and with our customers to install and operate equipments correctly and efficiently, and reduce production cost, ensure their products value-added and reach the market on time. JIABO is your long-term partner.
Serice:
One of JIABO's main concerns is continuously improving the level of service it offers to its customers. Once installed, each machine from JIABO is service right through its life by expert technical staff that provides, repairs and implementation, if required. This is how the success of our solutions translates into success for our customers, in a mutual beneficial relationship.
Contact us and your problem will be analyzed and processed by our staff.
Technical Assistance:
Our Purpose is the completely satisfaction of our customers. We are able to supply a prompt technical assistance of:
-Assisting customers in the choice of the most suitable machine to meet their requirements.
-Offering training in equipment operation, maintenance, quality control
-Supporting with the supply of spare parts, overhauling and up-grading
To request our technical assistance, please send E-mail or leave us a message on "Contact Form", and you will shortly be contacted.
Spare parts:
Our after sales service supports you in a constant way, supplying original spare parts in a very short delivery time. You can rely on assistance of our professional team of expert, able to help you identify the right part and operate correctly.
To ensure productivity and efficiency of your machine, we are able to offer
-Suggested spare parts which frequently ordered
-Spare parts for precautionary; Ordinary or extraordinary maintenances
