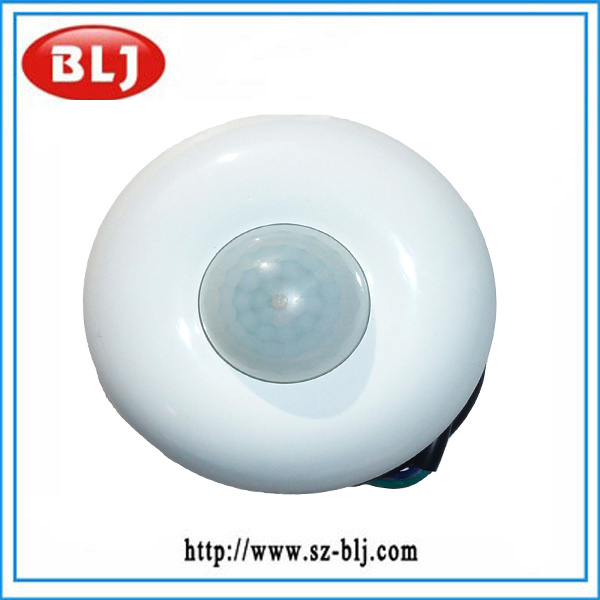

PIR Infrared Sensor Switch (BLJ-R555)
| Price: |
US $ 8.0-10.0/Set |
| Trade Terms: |
FOB |
| Min Order: |
100/Set |
| Pay Type: |
T/T |
Specifications
Roof body sensor switch is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT.
Product introduction:
Human body Sensor Switch is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
Infrared sensor switch specifications:
1. Rated voltage: 110V/220V
2. Light Sensitivity: ≤ 5LUX(adjustable)
3. Sensing distance: ≤ 8m(adjustable)
4. Sensor angle: 100°
5. Load power: ≤ 500W
6. Delay time: ≤ 60S(adjustable)
7. Size: Φ 89*H52mm
8. Materials: PC
Function:
1) Identify day and night automatically. Can adjust ambient light according to your desire
2) Detection distance can be set according to installation position and detection field.
3) Time-delay is added continually: When it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic. (Set time)
4) Time-delay adjustment: It can be set according to your desire. The minimum is 8± 3 sec; The maximum is 1 min.
| Prod Model: |
BLJ-R555 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Ray Sensor |
| Theory: |
Optical Sensor |
| Output: |
Switching Transducer |
| Principle: |
Infrared |
| Wires: |
PNP (',Three-Wires) |
