Plastic Building Material Polycarbonate Sheets Embossed Sheet Materials

Product Specifications

Prod Model:	XH-Z-E--57
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Polycarbonate Embossed Sheet
Packaging:	PE Film
Brand:	Xinhai
Place Of Origin:	Baoding,China
Color:	Transparent,Blue,Green,Lake-Blue,Opal,Bronze
Certification:	ISO
Material:	Makrolon Sabic
Guarantee:	10years
Surface:	Embossed
Thickness:	2mm-10mm

Product Description

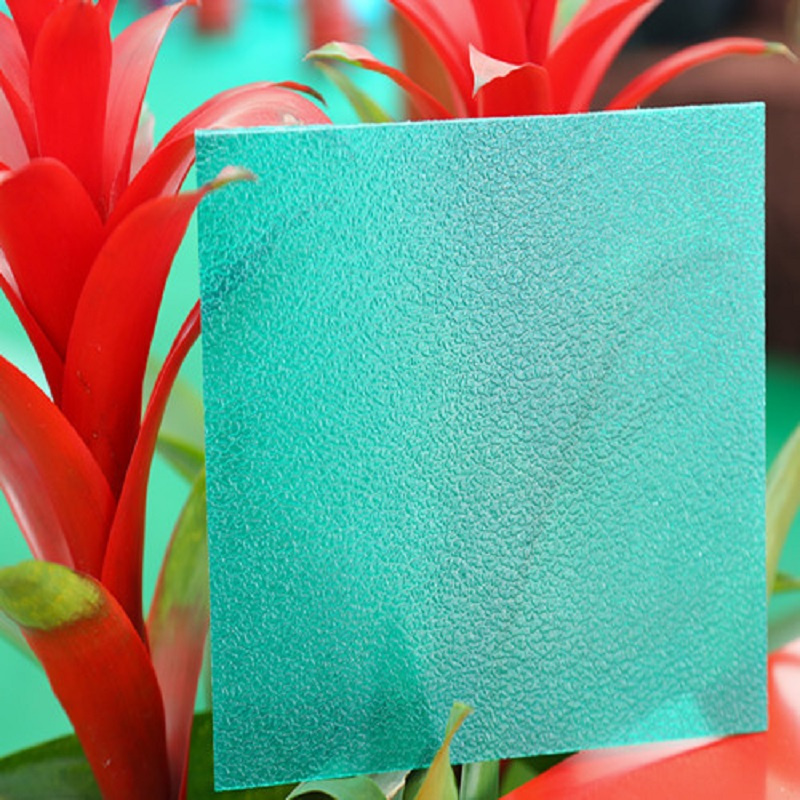

Polycarbonate embossed Sheet  Product introduction

PC diamond sheet,embossed sheet,frosted sheet are based on the manufacturing technology of the general solid sheet by changing part of the mould and process to allow the product surface morphology to have physical change thus facilitating the sheet surfacestructure change,optical performance change and visual and feeling change.
Mechanics function ,electricity function, fire retardant function, the ability of anti- ultraviolet ray etc. of the two kinds of sheet material in accordance with PC sheet, it is different at an external appearance and the light characteristic. through the shape in surface, density and size of cave and convex makes spread to shoot through the ray creation of the plank material and shoot deeply different but attain deeply and not and deeply, see not the misty result that see.


Specificatiion:


Color Available	Width		Thickness	Weight		Min Curving Radius	Min Span Accordingly(mm)
	(mm)		(mm)	(kg/m2)		(mm)
Clear Transparent Opal Bronze/Brown bule lake bule green Light Green yellow red white grey	1220 1560 1820 2100 Customized		1.5	1.8		270	540
			2.0	2.4		360	720
			2.4	2.88		430	860
			3.0	3.6		540	1080
			3.8	4.56		680	1360
			4.0	4.8		720	1440
			5.0	6		900	1800
			6.0	7.2		1080	2160
			8.0	9.6		1450	2900
			9.0	10.8		1620	3240
			10.0	12		1800	3600
			12.0	14.4		2160	4320
Technical data:
Characteristics		Unit			Data
Impact strength		J/m			2.1
Light Transmission		%			50-85
Specify Gravity		g/m			1.2
Coefficient Thermal Expansion		mm/mºC			0.065
Service Temperature		ºC			-40ºC---+120ºC
Heat conductivity		W/m2ºC			3.0-5.0
Flexural strength		N/mm2ºC			100
Modulus of elasticity		Mpa			2400
Model		XH-NLB

Application:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet
10) police an-riot shield/visor/mask


Company Profile

Baoding Xinhai Plastic Sheet Co.,Ltd located in "the important town of the North"Baoding,it's heart of Beijing,Tianjin,Shijiazhuang,economically developed and the traffic is extremely convenient.Xinhai company is a set of research and development,production,sales and construction High-tech enterprise,including XINHAI JINDI TIANYANG three major brands.There are nearly 20years experiences in this field and mainly specializing in PC Hollow Sheet,Solid Sheet,daylighting tiles and parts with best price and good quality,our customers from different country.Now we are ready to research PC sheet different effect than before,such as to avoid pests,to Strong growth and to improve Crop production to meet different customers' request.



 Why US?
1. Our products can fit both hot and cold areas for our technology.
2. FOB Chinese port, CIF, CFR and EXW trade terms are available for you. We will give you most
    competitive price.
3. Our factory is located in Baoding which is near to Beijing and Tianjin cities. It is easy for you to
    visit our factory.
4. Experienced in this field for 15 years development, we have set up so many direct sales stores
    all over China.
5. Low MOQ: it can meet your business very well
6. Good service: we treat our clients as friends.
7. 13 years experience in this field.
8. There are six stores around China, they are mainly in Foshan, Guangzhou, Taiyuan, Shanxi, Baotou, Shijiazhuang.
9. UV protection machine, we have our own UV protection machine, can one side or two sides coated.
10. Size, color can be customized
