Price: | US $ 20/Roll |
---|---|
Trade Terms: | FOB |
Min Order: | 50/Roll |
Pay Type: | L/C,T/T |
Galvanized Hexagonal Wire Netting-Normal Twist | |||||
Mesh Opening | Wire Thickness | Width | |||
inch | mm | bwg | mm | inch | m |
3/8" | 10 | 27; 26; 25; 24; 23 | 0.40-0.63 | 12-48 | 0.3-1.2 |
1/2" | 13 | 27; 26; 25; 24; 23; 22; 21; 20 | 0.40-0.88 | 12-80 | 0.3-2.0 |
5/8" | 16 | 27; 26; 25; 24; 23; 22; 21; 20 | 0.40-0.88 | 12-48 | 0.3-1.2 |
3/4" | 19 | 27; 26; 25; 24; 23; 22; 21; 20 | 0.40-0.88 | 12-80 | 0.3-2.0 |
1 | 25 | 27; 26; 25; 24; 23; 22; 21; 20 | 0.40-0.88 | 12-80 | 0.3-2.0 |
1/4" | 30 | 24; 23; 22; 21; 20; 19; 18 | 0.56-1.25 | 12-48 | 0.3-1.2 |
1/2" | 40 | 23; 22; 21; 20; 19; 18 | 0.63-1.25 | 12-80 | 0.3-2.0 |
2" | 50 | 23; 22; 21; 20; 19; 18; 17 | 0.63-1.47 | 12-80 | 0.3-2.0 |
3" | 75 | 23; 22; 21; 20; 19; 18; 17; 16; 15 | 0.63-1.83 | 12-80 | 0.3-2.0 |
4" | 100 | 16; 15; 14; 13; 12 | 1.65-2.77 | 20-160 | 0.5-4.0 |
Galvanized Hexagonal Wire Netting-Revise Twist | |||||
Mesh Opening | Wire Thickness | Width | |||
inch | mm | bwg | mm | inch | m |
1 | 25 | 25; 24; 23; 22; 21; 20; 19; 18 | 0.51-1.25 | 12-80 | 0.3-2.0 |
1/4" | 30 | 25; 24; 23; 22; 21; 20; 19; 18 | 0.51-1.25 | 12-80 | 0.3-2.0 |
1/2" | 40 | 25; 24; 23; 22; 21; 20; 19; 18 | 0.51-1.25 | 12-80 | 0.3-2.0 |
2" | 50 | 25; 24; 23; 22; 21; 20; 19; 18; 17 | 0.51-1.47 | 12-80 | 0.3-2.0 |
3" | 75 | 23; 22; 21; 20; 19; 18; 17 | 0.63-1.47 | 12-80 | 0.3-2.0 |

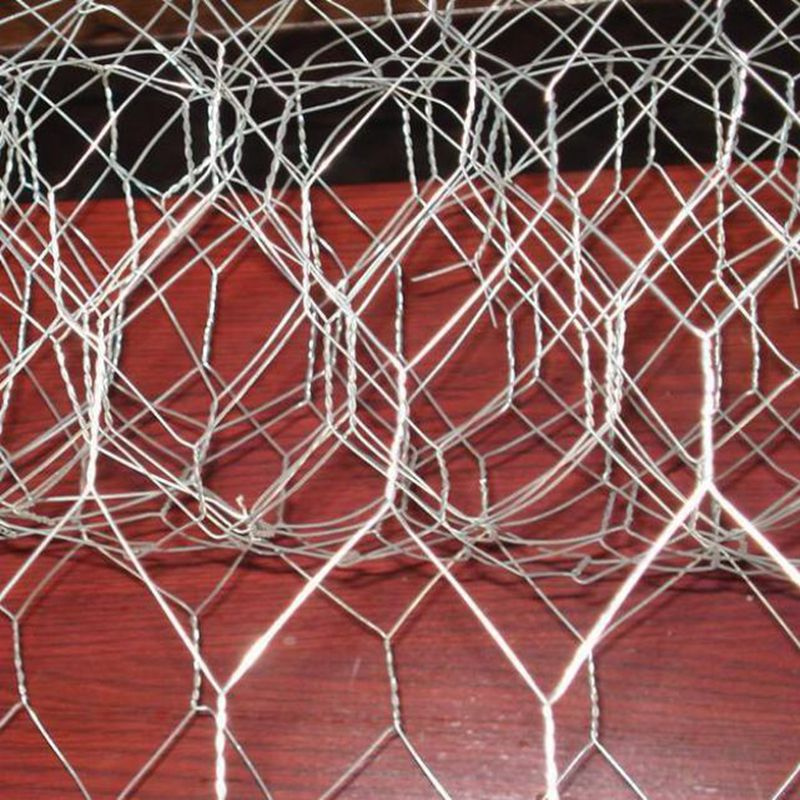

PVC-Coated Hexagonal Wire Netting | |||||
Mesh Opening | Wire Thickness | Width | |||
inch | mm | mm | inch | m | |
1/2" | 13 | 0.4/0.8-0.8/1.2 | 12-80 | 0.3-2.0 | |
5/8" | 16 | 0.4/0.8-0.8/1.2 | 12-48 | 0.3-1.2 | |
3/4" | 19 | 0.4/0.8-0.8/1.2 | 12-80 | 0.3-2.0 | |
1" | 25 | 0.5/0.9-1.0/1.4 | 12-80 | 0.3-2.0 | |
1/4" | 30 | 0.6/1.0-1.2/1.6 | 12-80 | 0.3-2.0 | |
1/2" | 40 | 0.6/1.0-1.2/1.6 | 12-80 | 0.3-2.0 | |
2" | 50 | 0.6/1.0 - 1.2/1.6 | 12-80 | 0.3-2.0 |
Prod Model: | Diamond-03 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Hole Size: | 3/4 Inches |
Wire Thickness: | 0.8mm |
Roll Length: | 50m |
Rroll Width: | 1m |
Material: | Low Carbon Steel Wire |
Application: | Construction Wire Mesh |
Surface Treatment: | Galvanized |
Weave Method: | Twist |
Weave Technique: | Plain Weave |
