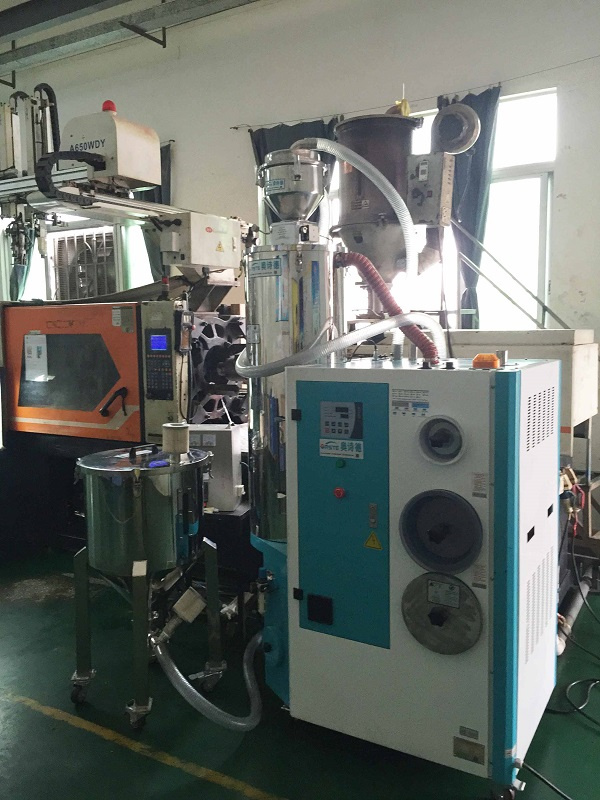

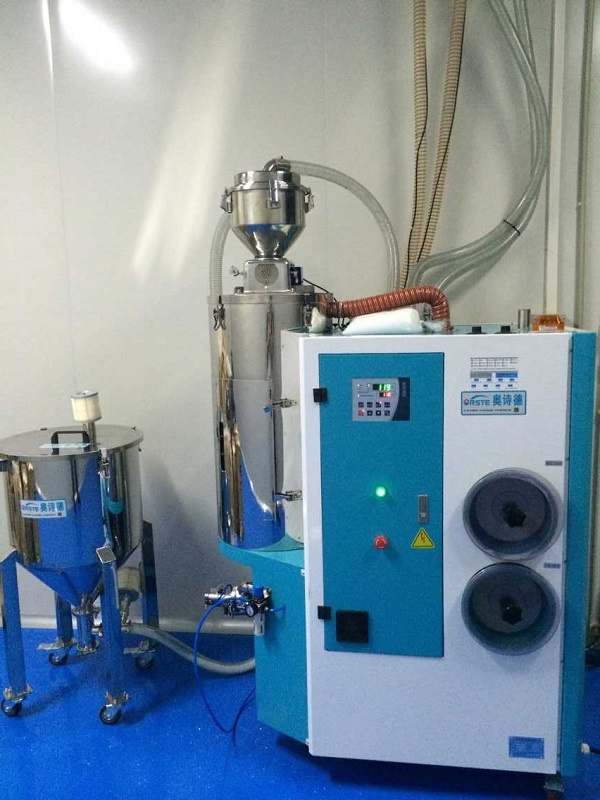

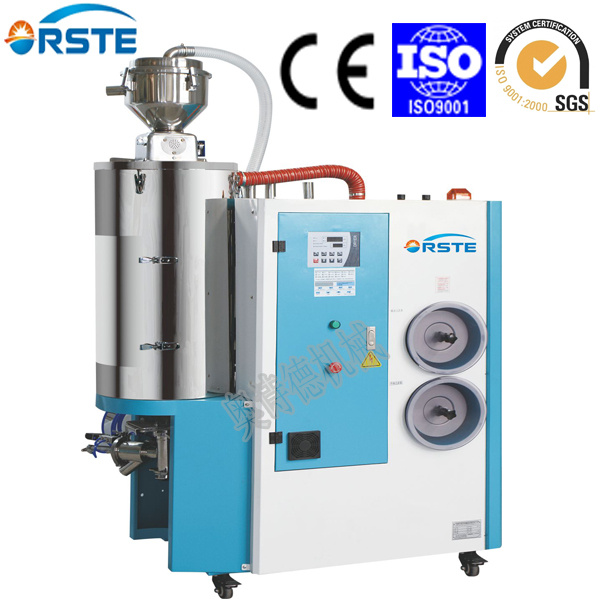

Plastic Dehumidifying Drying Loading Dryer Loader Machine
| Price: |
US $ 4400-10600/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Plastic Dehumidifying Drying Loading Dryer Loader Machine
Product Features
P.I.D temperature controller to accurately control regenerative temperature.
Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
High density return air filter ensures no contamination to the honeycomb.
Equipped with double-layer insulated stainless steel drying hopper, adopt down-blowing drying air pipe design, ensures even drying of materials.
Vacuum take-off valve (can be quickly detached) is equipped in feeding system to ensure no surplus raw material in hopper tubes.
Heat material conveying can be equipped with closed loop hot air conveying device to avoid contamination and moisture regain.
Optical hopper dryers are optional to suit production of optical and food-grade product.
Transparent window design for filter makes it convenient to monitor the condition of filter.The cleaning or change of the filter can be done according to the actual need.
The clip style cover design ensures easy maintenance.
Functional Scheme
Dehumidifying:Damp and hot air from dry material barrel is blown into rotor after cooled.Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air.Two strands of airflow function on the rotor.And with the rotation, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dried to the drying temperature and then is blown into material barrel to closed circle to dry material.
Suction:Material is absorbed into barrel from storage barrel or other storage containers.When the magnetic reed switch detects no material, suction motor runs to produce vacuum inside vacuum hopper.Raw material in storage barrels is absorbed into suction hopper due to air pressure difference.When material suction completes, motor stops.Raw materials drop into drying hopper barrel due to gravity.The dried raw material after dried is taken out to the hopper with photo-sensor installed on molding machine or other hopper from drying hopper barrel.
| Model OCD- | 20/40H | 40/40H | 80/80H | 120/80H | 160/120H | 230/120H | 300/200H | 450/200H | 600/400H | 750/400H |
| Drying System |
| Hopper Capacity (kg) | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 |
| Drying Heating Power (kw) | 4 | 4 | 4 | 4 | 6 | 6 | 12 | 12 | 18 | 18 |
| Drying Blower Power (kw) | 0.4 | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 | 1.5 | 1.5 | 3.75 | 3.75 |
| Dehumidifying System |
| Dehumidifying Air Quantity (m3/hr) | 40 | 40 | 80 | 80 | 120 | 120 | 200 | 200 | 400 | 400 |
| Regenerative Heater Power (kw) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5.4 | 5.4 | 7.2 | 7.2 |
| Regenerative Blower Power (kw) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 0.75 |
| Feeding System |
| Feeding Blower Power(kw) | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Dia. of Material Pipe (inch) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Dia. of Return Air Pipe (inch) | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| OMH (L) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 12 | 12 | 12 | 12 | 30 |
| OPH (L) | 3 | 3 | 3 | 3 | 3 | 7.5 | 7.5 | 7.5 | 12 | 12 |
| Dimension | H (mm) | 1490 | 1870 | 2010 | 2100 | 2260 | 2370 | 2370 | 2410 | 2520 | 2570 |
| W (mm) | 1000 | 1050 | 1180 | 1180 | 1340 | 1340 | 1440 | 1460 | 1645 | 1645 |
| D (mm) | 730 | 730 | 780 | 780 | 810 | 810 | 940 | 940 | 1145 | 1145 |
| Weight (kg) | 280 | 295 | 325 | 340 | 505 | 515 | 570 | 610 | 650 | 700 |
David Wu
Dongguan Orste Machinery Equipment Co., Ltd.
Add:No.11,Sanlian Mid.Rd., Luwu,Changping, Dongguan City, Guangdong Province, China.523587
Mobile:(0086)18948606110
Tel:(0086)0769-83810056
Fax:(0086)0769-82026886
Web.:www.orste.com
| Prod Model: |
OCD-20/40H ~ OCD-750/400H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plastic Dryer: |
Plastic Dehumidifier |
| Plastic Material Dryer: |
Compact Dryer |
| Pet Dehumidifiers: |
Pet Dryers |
| Three-in-One Dryer: |
Drying Loaders |
| Plastic Dehumidifying Dryer: |
Hot Air Dryer |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Fixed |
Dongguan Orste Machinery Equipment Co., Ltd. Was first established in 2007 in "Made in China" city, Dongguan, Guangdong Province. After many years of growth and development, Orste has become a technology driven and innovative enterprise with independent development ability, integrating design, manufacturing, sales and maintenance. We have been awarded ISO9001 certification. Orste now owns 1 manufacturing factory in Dongguan and 12 sales agent service centers in many cities in China including Tianjin, Jinan, Suzhou, Shanghai, Wenzhou, Fuzhou, Wuhan, Changsha, Chongqing and etc. With a foothold set in China, we are serving global markets. Orste devotes itself to improving the product quality and working environment in plastic factories by supplying integral automation systems to them.
With many years of experience and accumulation in dehumidifying and drying, material conveying, heating and cooling, granulating and recycling, mixing and blending, and upholding the principle of "Focusing on Product Details, Pursuing Excellent Quality", Orste Machinery is an industry leader with its mature technology in peripheral equipment of plastic molding.

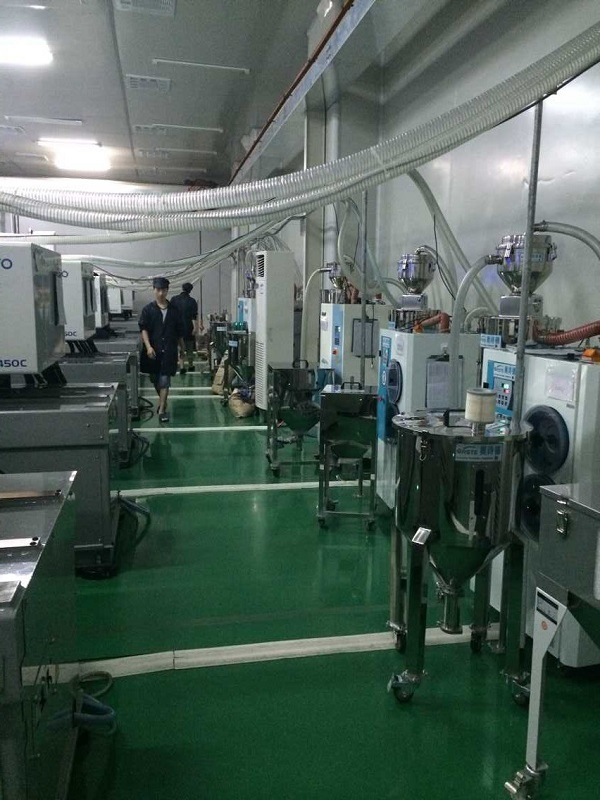

Orste's large scale central material feeding system and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry. The main products of the company are a series of high-tech products including dehumidifying dryer, hopper dryer, auto-loader, "three-in-one" compact dryers, water/ oil mold temperature controller, industrial cooling machine, granulator and pulverizer, mixer and blender, masterbatch doser and vibrating screen.
With the principle of customer satisfaction first, we take value contribution as our responsibility and constantly review the market adaptability of our products to timely seize the latest trend in industry, and maintain the uniqueness and technological edge of products. Through proactive listening, delicate service, modest attitude. Orste Machinery always maintains close contact with its customers.
