Product Specifications
| Prod Model: |
MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drying |
| Drying Method: |
Hot Air(Wind) |
| Heating Power: |
18.5-90kw |
| Capacity: |
300-8000kg |
| Mixing Power: |
0.75-7.5kw |
| Fan Power: |
0.55-5.5kw |
| Controll Method: |
Pid |
| Raw Material: |
Granules,Pellets,etc |
| Material Premixing: |
with |
| Filter: |
Available |
| Operational Method: |
Continuous |
| Structure: |
Mixing Drier |
| Movement Way: |
Spraying |
| Operation Pressure: |
No |
| Heating Mode: |
Hot Wind |
Product Description

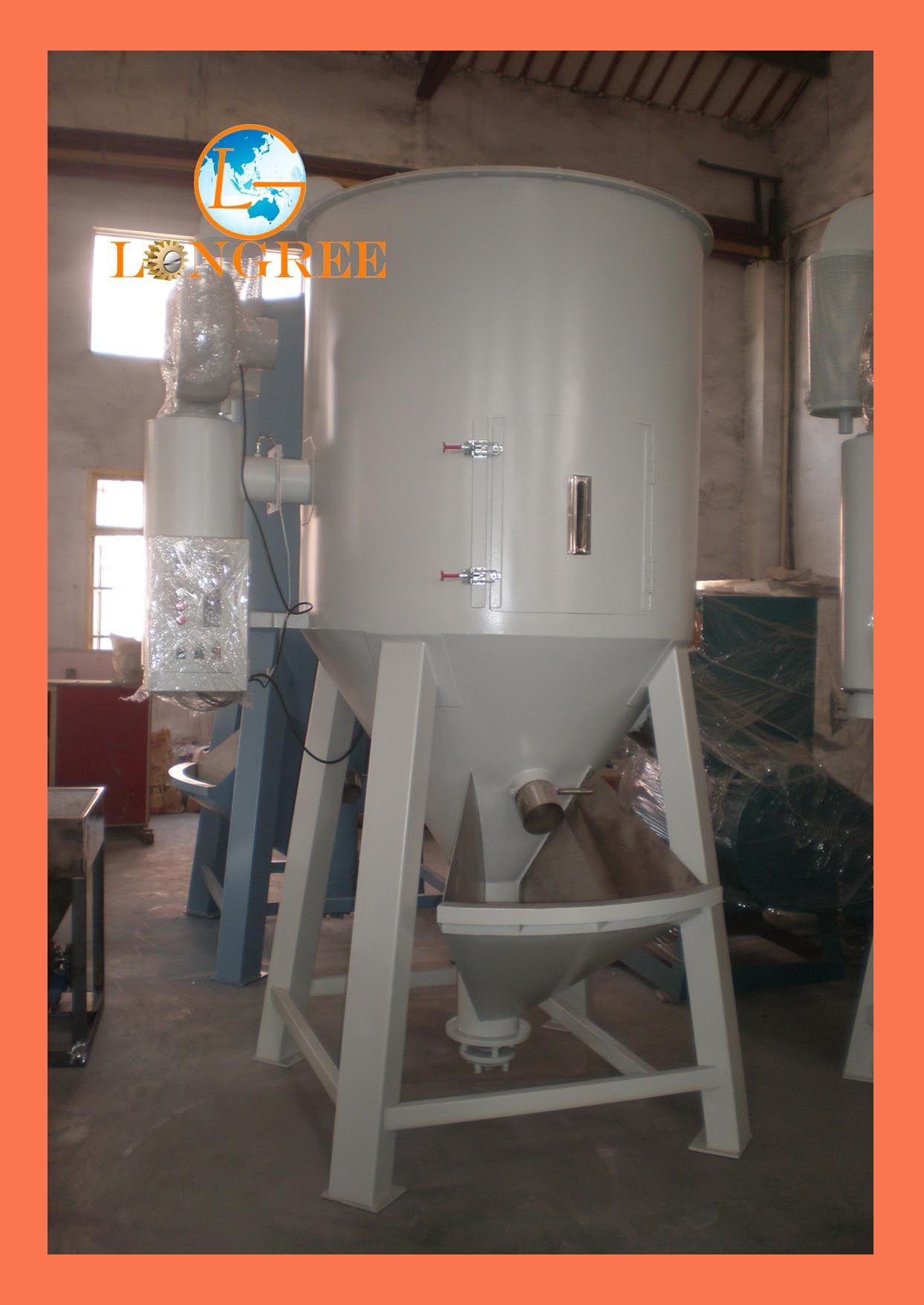

Plastic drying and mixing machine
1. The design of this machine includes two stages of spiral rapid transports.
2. The first stage is to move the raw material to the barrel.
3. The second stage is to rapidly lift the material to the top of barrel and scatter it in shape of umbrella.
4. Hot wind will blow around from the center of the bottom of the barrel.
5. Hot wind will blow upwards and penetrate the raw material, dynamic drying with complete heat exchange is conducted.
6. The barrel body, spiral vanes, shaft, cylinder, support frame and the parts which touch the raw material are all made of stainless steel.
7. When the material need clearing, open the counter direction. Material clearing can therefore be simply operated.
|
Model |
MD-300 |
MD-500 |
MD-1000 |
MD-2000 |
MD-3000 |
MD-5000 |
MD-8000 |
|
Power |
AC380v 50HZ 3P |
|
Load volume(kg) |
300 |
500 |
1000 |
2000 |
3000 |
5000 |
8000 |
|
Blower power(kw) |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
4 |
5.5 |
|
Heating power(kw) |
19.8 |
25 |
36 |
42 |
48 |
56 |
72 |
|
Control method |
PID |
|
Mixing motor(ke) |
0.75 |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
