Product Specifications
Prod Model: |
DN20-DN1200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Length: |
5.8m, 12m or as Required |
Color: |
Black with Blue or Yellow Stripe |
SDR: |
SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9 |
Pression: |
Pn4, Pn6,Pn8,Pn10,Pn12.5,Pn16,Pn20 |
Material Suppier: |
Sinopec, Basell, Sabic, Borouge |
Pipe Density: |
0.95-0.96kg/M3 |
Nwt: |
0.007kg-196kg |
Pipe Life Span: |
0.007kg-196kg |
International Standard: |
ISO4427/4437, DIN8074/8075 |
Other: |
Cutomized |
Material: |
HDPE |
Product Description

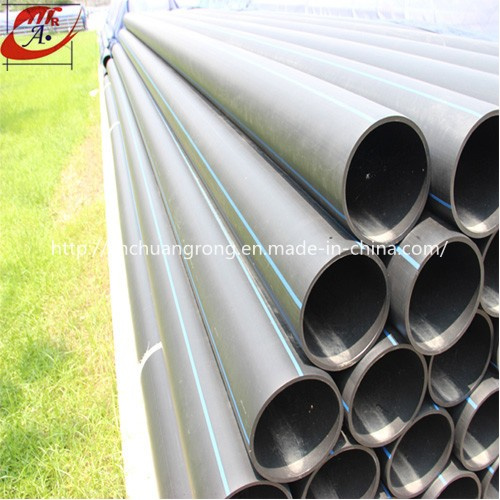

High quanlity HDPE Pipe for Water Supply: PE80/PE100
Specifications:
1. Material: High quality virgin PE100/PE80
2. Diameter: 20mm to 1200mm
3. Pressure: PN4 to PN20
4. Standard: ISO4427/4437
Features:
1.Material: High quality, virgin PE100/PE80
2. Diameter: 20mm to 1200mm
3. pressure: PN4,PN6,PN8, PN10, PN12.5, PN16 PN20( SDR33, SDR26, SDR21, SDR17,SDR13.6, SDR11,SDR9)
4. Connection: Socket fusion, butt fusion joint, electro fusion joint, flanged joint
5. Standard: ISO4427, GB/T13663-2000
Application:
Water supply, industrial liquids transportation, sewage treatment. Mariculture, and agricultural irrigation, etc
CHUANGRONG is leading professional supplier of HDPE Pipe and fittings,HDPE pipe welding machines for more than 8 years, Our aim is to provide customer with the best solusions of plastic pipe connection.
Thank you for looking through.
Nominal outside diameter dn ( mm ) | Nominal wall thickness en ( mm ) |
PN0.6 | PN0.8 | PN1.0 | PN1.25 | PN1.6 |
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
20 |
|
|
|
| 2.3 |
25 |
|
|
|
| 2.9 |
32 | - | - | - | - | 3.0 |
40 | - | - | - | - | 3.7 |
50 | - | - | - | - | 4.6 |
63 | - | - | - | 4.7 | 5.8 |
75 | - | - | 4.5 | 5.6 | 6.8 |
90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
710 | 27.2 | 33.9 | 42.1 | 52.2 | 63.6 |
800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.7 |
900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.8 |
1000 | 38.2 | 47.7 | 59.3 | 73.5 | - |
1200 | 46.2 | 57.1 | 70.6 | - | - |
CHENGDU CHUANGRONG TRADING Co., Ltd was founded in 2005. It is mainly in charge of the international business of SENPU (SENRUI) PIPE Co., Ltd and UNFIRE POLYMER MATERIAL TECHNOLOGY Co., Ltd. It is also the authorized A-level agent of SINOPEC, RITMO and BAODA. Its main products include PE, PP-R, UPVC, C-PVC Pipes and Fittings, Plastic Welding Machines \Tools, PPS Fibers and PE, PP-R Pipe Material.
As a professional import and export company, CHUANGRONG has an excellent staff team with rich experience. It has established business relationship with many different countries and zones in relative industry. Such as United States, Guyana, Korea, The United Arab Emirates, Indonesia, Malaysia, Philippine, Bangladesh, Mongolia, Africa and so on. Its principal is Integrity, Professional and Efficient.
SENPU (SENRUI) is a share enterprise that specializes in the R&D, production, sale and engineering installation of new-type plastic pipes and fittings. It established four factories in Deyang, Tianjin, Guiyang, Wuhan and it is one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 50 pipe production lines that are advanced at domestic and abroad, 200 sets of fitting production equipments. The production capacity reaches more than 100 thousand tons.
UNFIRE is a modern scientific company that specializes in the R&D, production and sale of polymer material, PPS Fibers. It cooperates with some famous universities and institutes of China. The company has strong capacity to develop science and technology. It has a high level study team which has excellent oversea PHD as research head and abundant experienced engineers. With the excellent R&D team, the company absorbs foreign advanced technology and has carried out its own independent innovation.
CHENGDDU CHUANGRONG always supplies the best products and service for customers. If you are interested in our company and products, please do not hesitate to contact us for further information.
