Plastic Lined Pipe
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Bore(Inch): |
Nps1/2-Nps24 |
| Nominal Diameter(Mm): |
Dn15-Dn600 |
| Cross-Section Shape: |
Round |
| Connection Type: |
Flange |
| Morphology: |
Fluids With Solid Particle |
| Standard: |
Hg, Jb, Bs, ANSI |
| Type: |
Corrosive Chemical |
| Diameter: |
Dn15-Dn300 |
Product Description

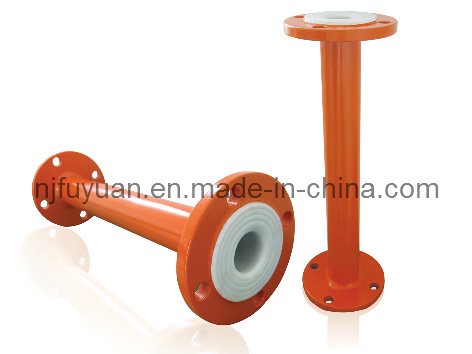

PTFE lined pipe
Nominal Diameter of the pipe(mm/in. ): DN15-DN600 (NPS1/2-NPS24)
Operating temperature of the pipe: -20-180 degree
Operating pressure of the pipe: -0.09MPa-1.6MPa (-0.9bar-16bar)
Material of the pipe: Seamless steel
Flange: ASME B16.5 Class 150/300 Flange options: HG, GB, JB, JIS, BS, DIN
Loose flange available
Special pieces of specific or non standard size can be manufactured on request.
|

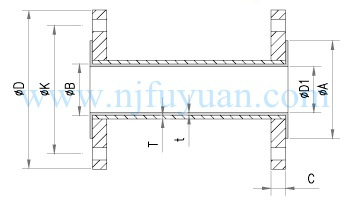

Nominal diameter |
Specification
of steel pipe T |
Sealing surface A |
PTFE pipe B |
Aperture D1 |
Plastic thickness t |
Outside diameter of flange D |
Center distance of flange K |
Thickness
of flange C |
|
DN15 |
25*2.5 |
40 |
20 |
16 |
2 |
90 |
65 |
11 |
|
DN20 |
29*2.5 |
50 |
25 |
21 |
2 |
100 |
75 |
11 |
|
DN25 |
34*3 |
60 |
29 |
25 |
2 |
110 |
85 |
12 |
|
DN32 |
42*3 |
70 |
37 |
32 |
2 |
130 |
100 |
13 |
|
DN40 |
45*3 |
80 |
40 |
34 |
2.5 |
140 |
110 |
14 |
|
DN50 |
57*3.5 |
95 |
51 |
45 |
2.5 |
155 |
125 |
14 |
|
DN65 |
76*4 |
115 |
68 |
63 |
2.5 |
175 |
145 |
16 |
|
DN80 |
89*4 |
130 |
82 |
75 |
3 |
190 |
160 |
16 |
|
DN100 |
108*4 |
150 |
101 |
95 |
3 |
210 |
180 |
18 |
|
DN125 |
133*4.5 |
180 |
126 |
119 |
3.5 |
240 |
210 |
20 |
|
DN150 |
159*5 |
205 |
151 |
143 |
4 |
275 |
240 |
20 |
|
DN200 |
219*6.5 |
265 |
204 |
195 |
4 |
330 |
295 |
20 |
|
DN250 |
273*8 |
320 |
257 |
246 |
5 |
385 |
350 |
23 |
|
DN300 |
325*8 |
365 |
309 |
298 |
5 |
435 |
400 |
23 |
As an expert manufacturer and supplier of chemical equipment and machinery since 2003,
Nanjing Fuyuan Chemical pipeline Equipment Co., Ltd continually develops and provides quality-stable chemical equipment to solve the problem of considering the need of both corrosion resistant and cost saving facing in process engineers, which have been widespread used in chemical, petrochemical, agrochemical, pharmaceutical, fine chemical, metallurgy etc. It has the fixed assets of over 50 million Yuan and the land area of 57000sqm.
The company has 308 staffs and 56 technical management personnel, including one mechanical equipment expert of Canada, one chemical technical expert of Japan.
Its high quality product are presently serving all parts of China and has been exported to America, Brazil, Japan, Korea, Mexico, Malaysia, Israel, Iran, Russia and other countries and regions.
The staff of high-trained technical personnel is willing to provide practical, low cost solution for most process problems.
The line of process equipments that is following:
1. Fluorocarbon Lined Equipment: PTFE lined Pipe and Fittings, Elbow, Tee, Cross, Reducer
2. PTFE/FEP lined Sight Glass, Bellows, Armored Expansion Joint and FEP lined Valves
3. Glass lined Equipment: Condenser, Film evaporator, Heat Exchangers
Other Plastic lined Equipment: Pipe and fittings, Columns, Reactors, Vessels, Tanks etc
4. Lining Materials: PTFE, FEP, PFA, PO, PE, PP and ECTFE (HALAR)
We pride ourselves in offering high levels of customer service and high integrity products. Our dedicated team will make us a world leader in sub-contract fluorocarbon PTFE lining to the OEM market.
Adhering to the operation principle of "Scientific management, all devotion, customer satisfaction and perfection pursuit" and the permanent commitment of "Be honest to every customer", we expect your precious opinions and welcome your guidance.
In the future, Nanjing Fuyuan Chemical Pipeline Equipment Co. Ltd will continue to constantly supply the best product and service, teaming with business partners to create a World-Class chemical equipment supplier.
Fuyuan is looking for global agent now!
