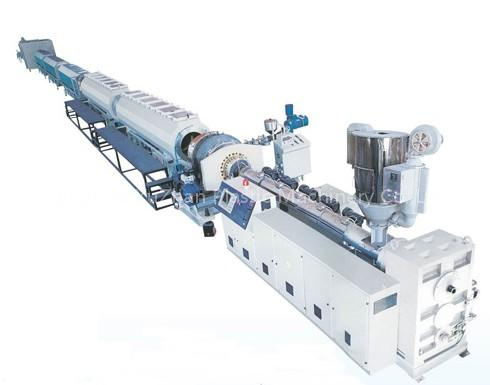

Plastic Machinery for PP-R Pipe
Use
Production line for 20- 63 PP-R PE-AL HDPE pipes manufactured by is properly designed, easy to operate and highly automated. It can be used for the production of 20- 63 compound pipes.
Extruder: It has adopted the famous brand speed-regulating systems, shield type double-pole mixing PP-R specialized screw and open Nonth cylinder.
Calibrating part: It has adopted vacuum negative pressure calibrating and recycled water cooling. The calibrating and cooling system is made of stainless steel.
Hauling part: It has adopted pneumatic gripping and the famous brand frequency control system which enable the stable hauling of the pipes.
Molding part: It has adopted perfect molding and compounding technology which guarantees perfect combination of pipes.
Automatic control: By using PLC programmable computer control system from Mitsubishi of Japan, it can make the extruding, hauling, compounding and molding, cutting all controlled by programs, so that the whole production line is a closed circle.
Model |
PPRG-32 |
PPRG-63 |
PPRG-110 |
Extruder Specification |
SJ65X30 |
SJ90X30 |
SJ120X28 |
Diameter of pipe mm |
20-32 |
40-63 |
75-110 |
Production speed(m/min) |
≥3-10 |
≥2-6 |
≥1.2-4 |
Compressed air(≥0.6MPa)m3/min |
0.3 |
0.3 |
0.5 |
Cooling water flow m3/h |
2 |
4 |
8 |
Power kw |
72 |
115 |
150 |
Dimensions(LxWxH) |
20000x4000x1700 |
26000x4500x1750 |
30000x5000x1750 |
Weight kg |
3500 |
4000 |
4500 |
Established in 2007, Zhangjiagang Youcheng Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of all kinds of plastic pipe/ profile extrusion lines and auxiliary equipment. We are located in Zhangjiagang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
