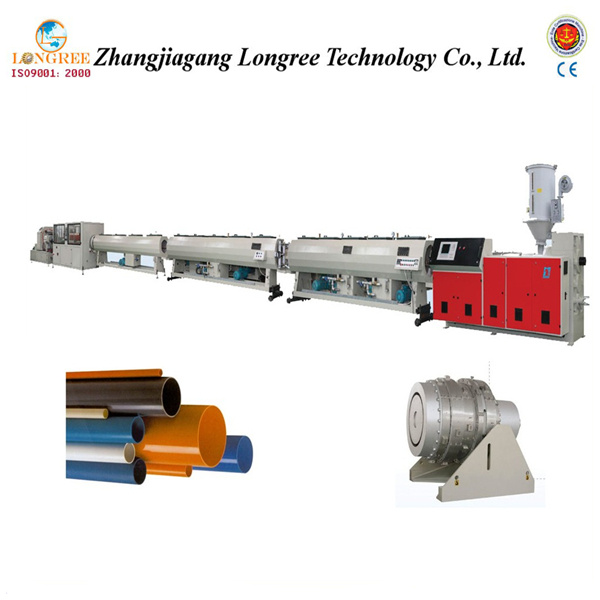

Plastic PE pipe machinery
Brief Introduction for Longree Technolgoy Machinery
1. ----Features and description
A) Man-machine operation interface, high automation level.
B) The adoption of professional screw ensures good plastification.
C) Adopts compound screw type head to clear memory function effectively.
D) Vacuum forming, constant temperature control to remove stress of pipe material.
E) Adopts common extruding head and adds marking color line for pipe material.
2. ----Our support and after-sale service
1. We supply all the technical support, such as engineers, drawings, and instruction manual.
2. We send one or more than one engineers to client for installing and adjust all the machinery
3. After the sale, we will send our engineers to customer's plant, they will supply some machine maintenance service.
Model |
PE63 |
PE160 |
PE315 |
PE400 |
PE500 |
PE630 |
Produced Pipe Specification(mm) |
16-63 |
75-160 |
110350 |
110-400 |
160-500 |
200-630 |
Calibration length(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
Degree of vacuum(Mpa) |
-0.030.08 |
-0.030.08 |
-0.030.08 |
-0.030.08 |
-0.030.08 |
-0.030.08 |
Max hauling force(N) |
10000 |
15000 |
20000 |
25000 |
30000 |
50000 |
Max Hauling speed(m/min) |
10 |
6 |
4 |
3 |
2 |
1.4 |
Effective hauling length(mm) |
1000 |
1500 |
1500 |
1500 |
1800 |
1600 |
Compressed air consumption(m3/h) |
0.4 |
0.6 |
1.0 |
1.2 |
1.5 |
2.0 |
Refilled water volume(m3/h) |
5 |
6 |
7 |
8 |
9 |
12 |
Line length(m) |
20 |
22 |
30 |
30 |
36 |
42 |
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
