| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | L6E3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

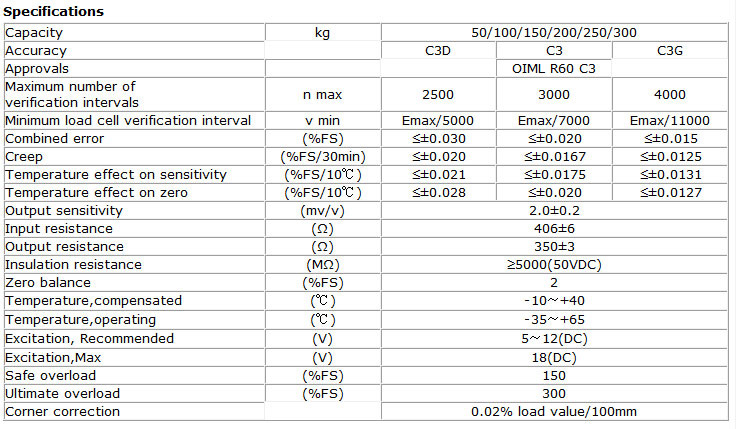

Capacity | kg | 50/100/150/200/250/300 | ||
Accuracy | C3D | C3 | C3G | |
| Approvals | OIML R60 C3 | |||
Maximum number of verification intervals | n max | 2500 | 3000 | 4000 |
Minimum load cell verification interval | v min | Emax/5000 | Emax/7000 | Emax/11000 |
Combined error | (%FS) | ≤±0.030 | ≤±0.020 | ≤±0.015 |
Creep | (%FS/30min) | ≤±0.020 | ≤±0.0167 | ≤±0.0125 |
Temperature effect on sensitivity | (%FS/10ºC) | ≤±0.021 | ≤±0.0175 | ≤±0.0131 |
Temperature effect on zero | (%FS/10ºC) | ≤±0.028 | ≤±0.020 | ≤±0.0127 |
Output sensitivity | (mv/v) | 2.0±0.2 | ||
Input resistance | (Ω) | 406±6 | ||
Output resistance | (Ω) | 350±3 | ||
Insulation resistance | (MΩ) | ≥5000(50VDC) | ||
Zero balance | (%FS) | 2 | ||
Temperature,compensated | (ºC) | -10~+40 | ||
Temperature,operating | (ºC) | -35~+65 | ||
Excitation, Recommended | (V) | 5~12(DC) | ||
| Excitation,Max | (V) | 18(DC) | ||
Safe overload | (%FS) | 150 | ||
Ultimate overload | (%FS) | 300 | ||
| Corner correction | 0.02% load value/100mm | |||
