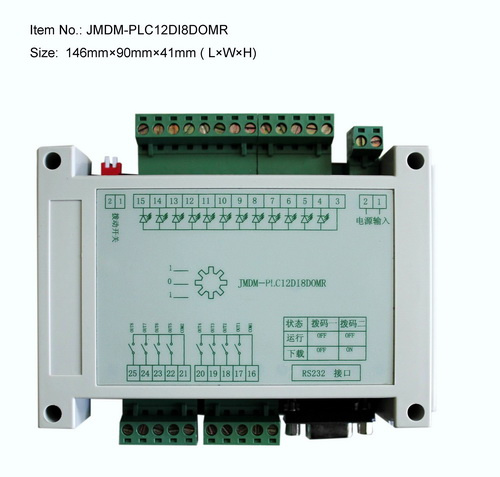

PLC Controller with 20 Channels, PLC Control Board

Product Specifications

Prod Model:	JMDM-PLC12DI8DOMR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power Supply:	DC 12V or 24V
Input:	20 Channels Optoelectronic Isolation I/O Input
Output:	20 Channels Optoelectronic Isolation I/O Output
Interface:	RS232
Shell Size:	146 Mm * 90 Mm * 41 Mm
Internal Control Board Size:	123 Mm * 87 Mm * 24 Mm
Working Temperature:	-10 ~ + 65 Centigrade
Junction Temperature:	-20 ~ + 80 Centigrade
Humidity:	5 ~ 95% Without Condensation
Power Consumption (No External Equipment:	+12V@1A (Typical)
Application:	Audio / Video Players
Universal:	Universal
Type:	Progrmme
Voltage:	12V, 24V

Product Description

JMDM-PLC12DI8DOMR PLC controller, plc control board

20 points small size PLC controller to compatible with Japan mitsubishi GX Developer ladder diagram software

Introduction
JMDM-PLC12DI8DOMR is Shenzhen Jingmin Digital Machine Co., Ltd. Independent research and development of a industrial grade of high performance small size programmable logic controller. Suitable for digital quantity under 20 channels of the demand for small PLC control of industrial occasions, direct to use the software GX programming with mitsubishi ladder diagram, have power to maintain and online monitoring functions, with lightning protection, strong electromagnetic interference resistance, stable and reliable, highly cost-effective, simple and easy for use, can instead of foreign brands of PLC used in various control occasions within 20 points, the application of mitsubishi FX1N; Can be flexible used in all kinds of industrial automati control occasions, such as metallurgy, chemical, plastics, printing, textile, food, packaging and other industries in the production of machinery, industrial assembly line, all kinds of machine tools in the industrial control equipment.

Performance parameter
1). Programming software is compatible with Japan's mitsubishi GXDeveloper ladder diagram software, in the application is equal to mitsubishi FX1N (C);
2). Working power supply: With the lightning protection circuit. Can be worked under the DC 12V or 24V. Working power universal current (AC 9V or AC 18V can also work). Working voltage depends on the board of the relay coil.
3). The PLC board has 20 channels optoelectronic isolation I/O input and output, 12 channels input, 8 channels output.
4). The machine adopts high-performance imports of industrial grade chip design, can adapt to high electromagnetic interference industrial environment (250A) discharge welding occasion to work normally.
5). High speed operation, basic instruction 0.5 uS per step.
6). Communication interface with RS232 (15 kv static shock resistant)
7). 8000 step program register; The internal relay a total of 1536 points, with special function relay and maintain with relay. The timer 256 points. Counter 200 points. Data register 256 points.
8). Programming language adopt ladder diagram, using scan-round work mode.
9). Shell adopts screw or guide installation, integration of compact design. Shell size: Length x width x height: 146mm× 90mm× 41mm; Internal control board size: Length x width x height: 123mm× 87mm× 24mm;
10). System adopts photoelectric isolation and enable internal watchdog and strict high frequency filter characteristics, with professional power supply monitor circuit make the system stable and reliable work.
11). Can on-line monitoring, convenient debugging and fault diagnosis.

Product feature
1. The working temperature: -10 ~ + 65° C;
2. Junction temperature: -20 ~ + 80° C;
3. Humidity: 5 ~ 95% without condensation;
4. Power consumption (no external equipment): +12V@1A (typical)

Usage
PLC hardware resources
A total of up to 20 points, input and output configuration is as follows:
Input point: 12 points X000-X013; Output point: 8 point Y000-Y007.


Application
1. Can be used for a variety of control system within 20 points, can control cylinder, solenoid valve, relay, can be external photoelectric, capacitive and inductive, Hall type and so on various sensors;
2. Can be used to replace the foreign brands of PLC within 20 points to control the various occasions (such as all kinds of machine control), high cost-effective.
3. Can be used in the study and test of PLC.

IO controller for selection

	Serial No.	Item No.	Communication interface	I/O	Output type
0-10  channels	1	JMDM-4DI2DOMR	RS232/RS485	4/2	Relay
	2	JMDM-COM4DOMR	RS232	0 / 4	Relay
	3	JMDM-COM4DOKKG	RS232	0 / 4	SCR
	4	JMDM-COM8MR/MT/KKG	RS232/RS485	0 / 8	Relay /Transistor/ SCR
	5	JMDM-COM10MR	RS232/RS485	0 / 10	Relay
11- 20 channels	6	JMDM-RS8DI8DOMR		8/8	Relay
	7	JMDM-10DI10DOMT	RS232/RS485	10/10	Transistor
	8	JMDM-20DIOV2	RS232	12/8
	9	JMDM-20DIOMT/MR	RS232	12/8	Transistor / Relay
	10	JMDM-4DI16DOMT	RS232	4/16	Transistor
	11	JMDM-6DI5DOMR	RS232/RS485	6/5	Relay
	12	JMDM-4DI8DOMT	RS232	4/8	Transistor
	13	JMDM-14DIO	RS232	8/6	Rlay / Transistor
	14	JMDM-20DIO	RS232/RS485	12/8	Rlay / Transistor
	15	JMDM-COM20MR/MT/KKG	RS232/RS485	0 / 20	Relay /Transistor/ SCR
20-40 channels	16	JMDM-COM24MR	RS232/RS485	0 / 24	Relay
	17	JMDM-28DIOMR	RS232	12/16	Relay
	18	JMDM-28DIOMT	RS232	12/16	Transistor
	19	JMDM-32DIOMR	RS232/RS485	16 / 16	Relay
	20	JMDM-40DIOMR	RS232	20 / 20	Relay
	21	JMDM-40DIOMT	RS232	20 / 20	Transistor
	22	JMDM-20DIOV2MT/MR	RS232	12/8	Transistor / Relay
	23	JMMD-EX20DIOMT/MR	RS232	12/8	Expansion board
	24	JMDM-COM40MR	RS232	0 / 40	Relay
	25	JMDM-COM40MT	RS232	0 / 40	Transistor
	26	JMDM-COM20DI	RS232/RS485	20 / 0
