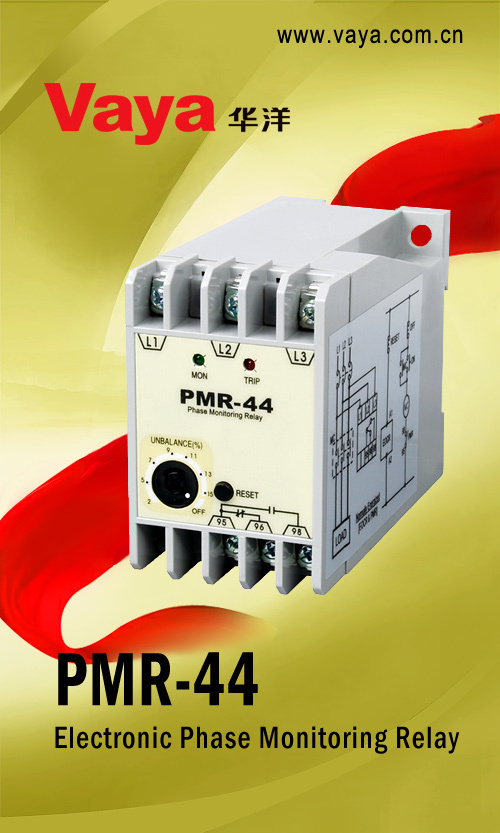

PMR-44 Electronic Phase Monitoring Relay
Features
MCU Based Compact Design
Multiple Protection Functions
2 - 15% Voltage Unbalance Setting
Trip Cause Indication & Troubleshooting
Manual / Electrical / Automatic Reset
Ambient Insensitive
Fail-safe Operation
|
Protection |
|
Protective Item |
Trip Time |
|
Phase Reversal |
0.1 sec |
|
Phase Loss |
1 sec |
|
Voltage Unbalance |
5 sec |
|
Specification |
|
Control Voltage |
Type |
Range |
|
220 |
3Φ 160 - 300VAC, 50/60Hz |
|
440 |
3Φ 340 - 480VAC, 50/60Hz |
|
Reset |
Manual (Instantaneous) / Electrical
Automatically reset with 5 sec delay
when supply power comes to normal. |
|
Output Relay |
Mode |
1 - SPDT (1C) |
|
Rating |
5A/250VAC Resistive |
|
Status |
Normally Energized |
|
Mounting |
35mm DIN-Rail / Panel |
