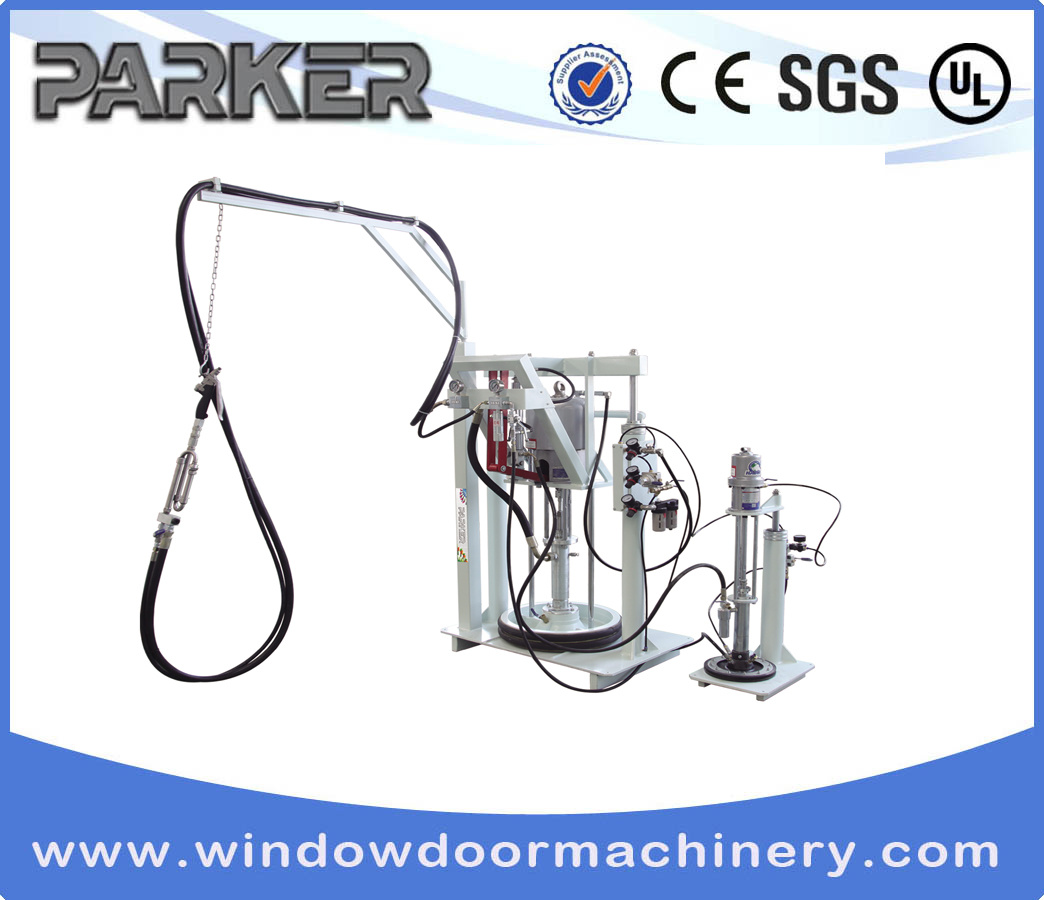

Pneumatic Two Component Spreading Machine for Making Hollow Glass
Main feature:
1. This machine is suitable for sealing and splicing on insulating glass, curtain wall and machines' manufacturing.
2. Imported brand Hasco air pump from South Korea makes the air pressure more stable and better coating quality.
Main technique and patameters:
(With heavy oil as medium in 20 centidegree, different viscosity medium is different in different temperature parameters)
Pressure of pneumatic system: 0.5-0.8 MPa
Air consumption: 300L/min
Highest working frequency of main pump: 60 times/min
Fluid max. Working pressure: 34.5Mpa
Mixture ratio: 6: 1-14: 1
Working pressure: 200 Mpa
A component bucket: 55 Gallon
B component bucket: 5 Gallon
Max. Output flow: 10L/min
Max. Air consumption: 0.8m3/min
Glue and air pressure ratio: 50: 1
Overall dimension: 1100× 950× 1630 mm(2260)
Total weight: 600 kg
|
Pressure of pneumatic system. |
0.5-0.8 MPa |
|
Air consumption |
300L/min |
|
Highest working frequency of main pump |
60 times/min |
|
Fluid max. working pressure |
34.5Mpa |
|
Mixture ratio |
6:1-14:1 |
|
Working pressure |
200 Mpa |
|
A component bucket |
55 Gallon |
|
B component bucket |
5 Gallon |
|
Max. output flow |
10L/min |
|
Max. air consumption |
0.8m 3 /min |
|
Glue and air pressure ratio |
50:1 |
|
Overall dimension |
1100×950×1630 mm(2260) |
|
Total weight |
600 kg |
Parker Machinery Co., Ltd., China has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.
Parker machines sell well, become well-known and outstanding at the national fairs of door-window equipment, owing to:
Using of European standards, and taking in the view and pithy of the design.
Purchasing main parts internationally.
Selling machines to other countries, such as Iran, North America, South Africa, Russia, Korea, Middle East, and so on.
Carrying our "Handover key project" ahead of other in this area.
Combining the manufacture with the development of design software of door-window.
Owing more than twenty sales and service agencies.
To meet the great need of development of hi-grade door-window, combining with almost ten years of experience, we introduced advanced technology from other countries, and developed five types, more than forty specifications of door-window and curtain wall equipment. Door-window factories needn't import any hi-grade machine from other countries any more.
Let's share science and technology of the world!
