Product Specifications
| Prod Model: |
MS18 MSE18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Western Europe |
| Series: |
Poclain Ms18 Mse18 |
| Color: |
Yellow, Blue, Black, Gray, Orange |
| Brand: |
Helm Tower |
| Performance: |
Large Torque with Low Speed |
| Place Of Original: |
China Mainland |
| Fuel: |
Hydraulic Oil |
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HelmTower
Model Number: MS18 MSE18 series
Motor series: MS18 MSE18 series
Brand: Helm Tower
Performance: Low Speed with large torque
Drive shaft type (Mounting): wheel type & shaft type
Motor brake: with brake & without brake
Speed: Single speed & duel / double speed optional
Displacement: 1091cc, 1395cc, 1571cc, 1747cc, 1911cc, 2099cc, 2340cc, 2560cc, 2812cc
Max. Pressure: 31.5 MPa
Max. Torque: 11400 N.m
Standard Power: 70kW
Packaging & Delivery
Packaging Details: | Expert Wooden Case |
|---|
| Delivery Detail: | within 15 days after receipt of payment |
|---|

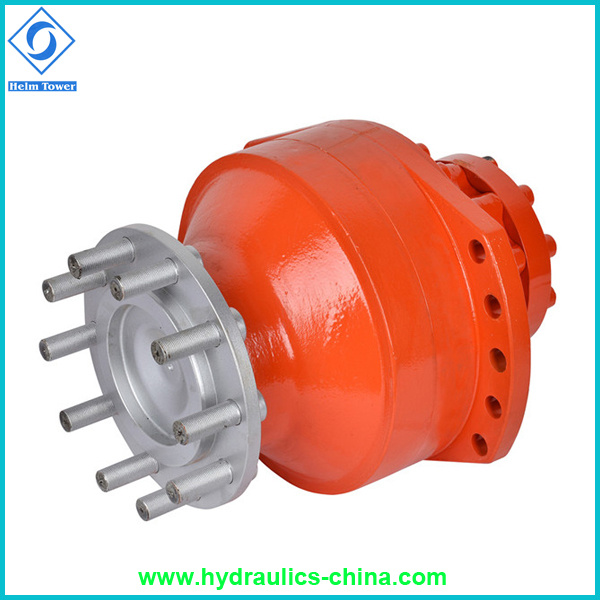

1. Hydraulic motor MS18 MSE18 features:
-- High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.
-- Low periph-eral speed
-- High efficient.
-- Long service life robust rolling bearing.
-- Drive shaft will support radial loads.
-- Low noise level.
-- High duty roller bearing for intermettent high pressure operation.
-- For continuous duty hydrostatic are availabe.
-- Excellent starting characteristics.
-- High power density
-- Optional mounting position
2. Our MS18 MSE18 motor performance:
Motor with brake & motor without brake.
Duel speed motor & single speed motor.
Variable displacement motor.
Large torque with low speed.
3. Our advantages:
1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor.
Farming Machinery: Spray Machine.
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
MS18
Displacement Group |
8 |
9 |
0 |
1 |
2 |
Displacement (ml/r) |
1395 |
1571 |
1747 |
1911 |
2099 |
Theoretical Torque at 10Mpa (N.m) |
2218 |
2498 |
2778 |
3038 |
3337 |
Rated Speed (r/min) |
100 |
100 |
100 |
80 |
80 |
Rated Pressure (Mpa) |
25 |
25 |
25 |
25 |
25 |
Rated Torque (N.m) |
4550 |
5150 |
5700 |
6250 |
6900 |
Max. Pressure (Mpa) |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
Max. Torque (N.m) |
5650 |
6350 |
7050 |
7700 |
8500 |
Speed Range (r/min) |
0-125 |
0-125 |
0-125 |
0-100 |
0-100 |
Max. Power (kw) |
Standard displacement is 70KW,variable displacement priority rotation 47KW,no priority is 35KW |
MSE18
Displacement Group |
0 |
1 |
2 |
Displacement (ml/r) |
2340 |
2560 |
2812 |
Theoretical Torque at 10Mpa (N.m) |
3721 |
4078 |
4471 |
Rated Speed (r/min) |
63 |
63 |
50 |
Rated Pressure (Mpa) |
25 |
25 |
25 |
Rated Torque (N.m) |
7650 |
8400 |
9200 |
Max. Pressure (Mpa) |
31.5 |
31.5 |
31.5 |
Max. Torque (N.m) |
9450 |
10350 |
11400 |
Speed Range (r/min) |
0-80 |
0-80 |
0-63 |
Max. Power (kw) |
Standard displacement is 70KW,variable displacement priority rotation 47KW,no priority is 35KW
|
Ningbo Helm Tower Noda Hydraulic Co., Ltd (Previously named Ningbo Wenkui Hydraulic Manufacturing Co., Ltd. ) is a subsidiary factory belongs to Wenkui Group Company. Which is a professional designer, manufacturer and exporter enterprise for MS hydraulic motor, MCR hydraulic motor, all kinds of hydraulic system and hydraulic spare parts. It obtained the Certificate of ISO9001: 2008 and ISO14001: 2004 Quality Management System, CCS certificate, Coal mine work safety License.
Our company is located in Ningbo High Technology Zone, Holding $5 million registered capital, covering area is over 10, 000 square meters. In the spirit of "concentration, profession, innovation" Ningbo Helm Tower Hydraulic Technology Co., Ltd. is dedicated to the research and development of hydraulic system and hydraulic components for long time, our products are widely used in marine, coal mine machinery and project machinery, metallurgy, agriculture, garden, environment protection synchronously and so on. We possesses over 100 high quality technology staff who consist of senior doctor, master, senior engineer, and assistant engineer work in the hydraulic industry for many years which can provide powerful technology and competitive advantage in product D&R, technology support and service, all of those lead to our MS hydraulic motor and MCR hydraulic motor can completely replace same type hydraulic motor of the oversea famous brand, our vane motor with three series of HVK, HVN, HVL total 10 size which can used in ship crane and port crane. Which can replace Japan IHI series vane motor. Due to the strong process capability, the quality of main parts processed by CNC can be guaranteed well. Not only the main parts of our products used high-grade alloy steel material like 20CrMnTi, 42CrMo, but also adopted advanced heat treatment technology including treatment of carbon penetration, quenching, salt bath and nitrogen treatment to promise the product quality, every single part is inspected and every product rigorously tested before it leaves our factory to ensure their unimpeachable standard and quality. After assembly, the whole machine will be tested on our test platform 100%.
The key parts such as screw cartridge valves, sealing, and screw bolts all were imported from USA, Germany, Italy, France and Taiwan.
We are a group manufacturing company owned more then 10 subsidiary factories. Consisting of head office, Ningbo Wenkui I/E Co., Ningbo Wenkui Hydraulic Manufacturing Co., Ningbo Helm Tower Hydraulic Motor Co., it's located in Ningbo, and other subsidiary factories which specializing in manufacturing orbit motors and piston pumps located in Shandong and Jiangsu province. With strict quality management system, advanced produce technical procedure, fine engineering, technical personnel and excellent after service, keeps the products are exported to Europe countries, USA, America, Australia, Middle East, part of Asia and other countries /region which win extremely praise and favor by the customers.
With competitive price, excellent performance and prompt delivery, holding the principle of "Exist by Quality, Develop by Credit", we sincerely welcome you to establish co-operative relationships with us in the near future.
Warmly welcome to contact us and visit our factories.
