Product Specifications
| Prod Model: |
Double deck |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dra: |
6-110mm |
Product Description

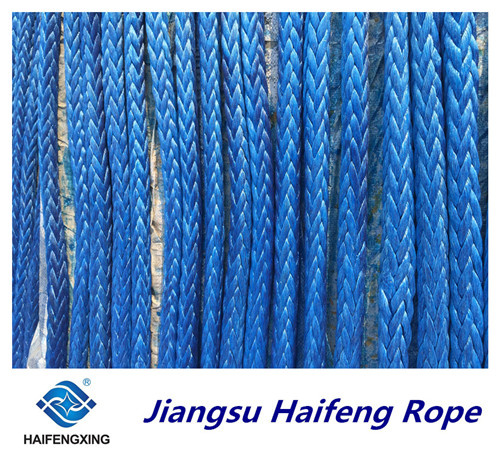

Variety---Using modulus of ultrahigh molecular polyethylene fiber , with a special production process , there are 3 , 8 , 12 series . φ6mm---110mm
Adwantages---Up to ultra high strength (was 1.5 times the quality of steel wire) , wear - resistant , flexible , corrosion - resistant , anti -aging , light weight , high safety performance , suitable for operation .
Apply---Dragging the large shipping port facilities , ships ,heavy load lifting , rescue , defense ships at sea , marine scientific research in engineering , aerospace and other fields .
| Specification | Polyamide multifilament | Polyamide | Polypropylene fiber | Polypropylene | Polyester |
| Dra | Cir | Weight | Breaking
strength | Weight | Breaking
strength | Weight | Breaking
strength | Weight | Breaking
strength | Weight | Breaking
strength |
| mm | inch | Kg/220m | daN | Kg/220m | daN | Kg/220m | daN | Kg/220m | daN | Kg/220m | daN |
| 28 | 3-1/2 | 110.0 | 21000 | 105.0 | 13400 | 94.0 | 13300 | 91.0 | 11000 | 136.0 | 13900 |
| 32 | 4 | 147.0 | 26300 | 142.0 | 18300 | 124.0 | 14700 | 120.0 | 14000 | 183.0 | 17000 |
| 36 | 4-1/2 | 189.0 | 31500 | 181.0 | 22300 | 157.0 | 20500 | 146.0 | 17400 | 231.0 | 21000 |
| 40 | 5 | 230.0 | 36300 | 220.0 | 26400 | 194.0 | 24300 | 179.0 | 21100 | 283.0 | 25900 |
| 44 | 5-1/2 | 276.0 | 43000 | 265.0 | 31500 | 225.0 | 28800 | 216.0 | 25400 | 338.0 | 30700 |
| 48 | 6 | 328.0 | 50400 | 314.0 | 36200 | 272.0 | 33000 | 246.0 | 29400 | 396.0 | 36200 |
| 52 | 6-1/2 | 385.0 | 59900 | 369.0 | 42000 | 316.0 | 37800 | 291.0 | 34000 | 462.0 | 41500 |
| 56 | 7 | 447.0 | 68200 | 427.0 | 48300 | 374.0 | 43300 | 338.0 | 38900 | 546.0 | 48400 |
| 60 | 7-1/2 | 500.0 | 75200 | 479.0 | 52500 | 420.0 | 49100 | 382.0 | 43800 | 612.0 | 52800 |
| 64 | 8 | 571.0 | 88000 | 550.0 | 59700 | 464.0 | 55100 | 438.0 | 49400 | 694.0 | 61400 |
| 72 | 9 | 724.0 | 113300 | 693.0 | 75200 | 575.0 | 69000 | 546.0 | 62100 | 877.0 | 76200 |
| 80 | 10 | 897.0 | 130000 | 861.0 | 96000 | 712.0 | 83900 | 712.0 | 74500 | 1080.0 | 94600 |
| 88 | 11 | 1091.0 | 151900 | 1043.0 | 114300 | 868.0 | 98400 | 819.0 | 89800 | 1316.0 | 108000 |
Jiangsu Haifeng Rope Technology Co., Ltd. is located in a historic city - Yangzhou, Jiangsu Province. We are a modern novel chemical fiber rope export & manufacture enterprise. We have domestically first-class production equipment, advanced detection methods and a group of professional and technical personnel. We have strong product development and technology innovation capacity.
Jiangsu Haifeng Rope Technology Co., Ltd. is located in a historic city - Yangzhou, Jiangsu Province. We are a modern novel chemical fiber rope export & manufacture enterprise. We have domestically first-class production equipment, advanced detection methods and a group of professional and technical personnel. We have strong product development and technology innovation capacity.
Main products are polypropylene, nylon, filament nylon composite, polyester, polyethylene polymer & beef tendon (composite) serial cable network products such as ropes.
We have got ISO9001: 2008, China CCS, Germany GL, France BV, the United States ABS, Japan NK, the United Kingdom LR, Norway DNV, Russia RS and other authoritative certificates.
Our brand "Haifeng" has won a high reputation among customers. We adhere to the principle of "Quality First, Customer Satisfaction, Create a Win-Win Situation". We are dedicated to customer service at home and abroad. We aim to create a better future for the marine industry.
