Product Specifications
| Prod Model: |
DPF-10/20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

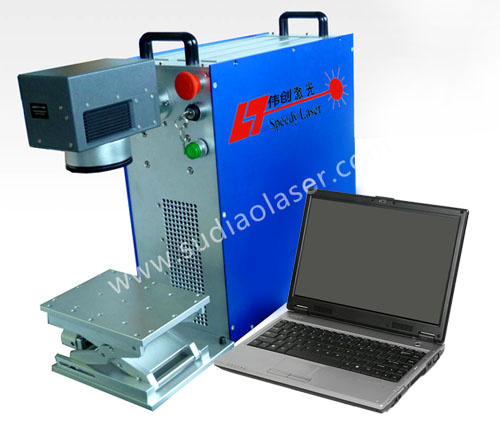

DPF-10W/20W series portable fiber laser marking machine made by Speedy Laser Company for meeting the market needs. It adopts the original imported laser module from the Germany or Britain and equipped with the high speed scanning system imported from the USA, which has the advantages of stable power output, nice optical mode, good laser beam, fast marking speed, perfect effect and high efficiency, etc. Meanwhile, easy to carry, power saving, maintenance-free, no consumables, and extremely long lifetime are the other high lights of this machine.
Technical Parameters:
Laser Power: 10W/20W
Laser wavelengths: 1064nm
Laser repeated frequency: 20KHz ---100KHz
Marking scope: 70mmm× 70mm/100mm× 100mm/160× 160mm()
Marking speed: ≤ 8000mm/s
Marking depth: ≤ 0.5mm
Min. Line width: 0.01mm
Min. Character: 0.15mm
Repeated precision: ± 0.002mm
Power consumption: ≤ 500W
Power supply: 220V± 10% 50Hz 5A
Laser module lifetime: >100000h
Cooling style: Air cooling
Working temperature: 0~40° C
Working humidity: 5%~85%
Net weight: 32Kg
Dimension: 330x560x680mm
Function Features:
1. High stabilization: Equipped with the original imported fiber laser from the Germany and Scanning system from the USA. Can work in the bad environment.
2. High speed: Powerful functions of the software is compatible with the imported scanning system, the limit of the marking speed can reach 10000mm/s which is the 2-3times fast than the traditional laser marker normally.
3. Convenience: Adopts integrated and portable designed structure, easy to carry, small size and maintenance-free...
4. Power saving: The power consumption of the whole machine is the 1/10 of the light pump laser marking machine, largely save the process cost.
5. Long lifetime: No consumption, and the lifetime of the imported fiber laser can reach 100000 hours. The lifetime can reach 12 years in the condition of 24 hours work everyday.
6. Perfect light beam: The focusing light beam less than 20um, especially apply to subtle and
Precise marking.
7. Powerful function: Compatible with the files from CorelDraw\AutoCAD\Photoshop etc.
Supports the file format of PLT\PCX \DXF\BMP etc. Supports auto-coding, serial No., batch
No., barcode, 2 -D code and so on.
Process Features:
1. Fine marks and perfect effect.
2. No poison and pollution, environmental protection and no consumables.
3. Can mark all the graphics created by computer.
4. Permanent marks and strong anti-fake function.
5. Fast marking speed and high efficiency of process.
6. Easy software operation and can be learned fast quickly.
Application Industry:
Applicable Materials: All kinds of metal materials (includes precious metal)\Engineering plastic\Coating film\Painting materials\Epoxy resin etc.
Applicable Industry: Jewellery\Keyboards of cell phone\Auto parts\Electronic components\Electronic appliance\Communication apparatus\Sanitary equipments \Hardware tools\Knife\Glasses\Clock\Cook\Stainless steel products etc.
