Product Specifications
| Prod Model: |
TMS-Y09-301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dim: |
236*280*126 Mm³ |
| Display: |
LCD |
| Power Source: |
DC 16.8V (Lithium Ion Battery) |
| Operating Time: |
8 Hours |
| Type: |
Counter |
| Usage: |
Electromagnetic Counter |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Module-n Synchronous Counter |
| Mechanism: |
Electronic |
| Function: |
Portable Laser Particle Counter |
| Theory: |
Optical Sensor |
Product Description
Description:
Y09-301(AC-DC)

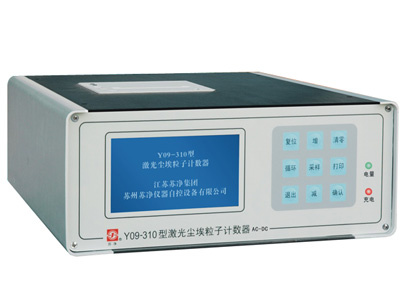

Portable Laser Particle Counter
The Model Y09-301AC-DC (Battery Operated) Laser Particle Counter is used to detect the particles in the clean-room. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simultaneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
Specifications
| Outside Dim | 236*280*126 mm³(Wide*Deep*High) |
| Display | LCD |
| Weight | 4.5Kg |
| Max. Consumption | 10W |
| Power Source | DC 16.8V (Lithium Ion Battery) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10µm |
| Calculation | 95%UCL calculation, Display Particle Concentration(particles/m³) |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 1---10min (Selectable) |
| Zero Count | ≤10min |
| Location Labels | 0-999 |
| Printer | Built-in Thermal Printer |
| Alarm | 100, 1000, 10000 Class |
| Data Storage | 1000 Samples (With PC Software) |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Maximum Rated Particle Concentration | 35000 particles/L (≤0.5µm) |
| Operating Time | 8 hours |
Environmental | Temperature: 10ºC-35ºC
Humidity: 20%-75%RH
Atmosphere Pressure: 86Kpa-106Kpa |
