Product Specifications
Prod Model: |
GF312 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Accuracy: |
0.5% |
Type: |
Enegy Meter Calibrator |
Application: |
Electromagnetic Instrument |
Power: |
Electricity |
Product Description

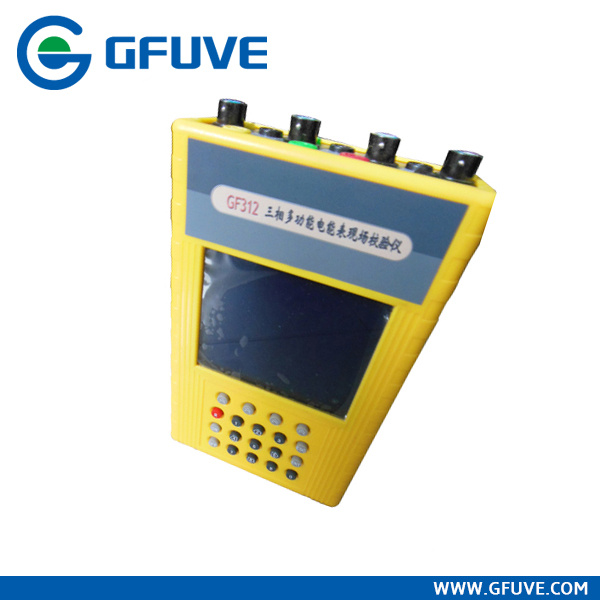

Portable Three Phase Kwh Meter Calibrator
It is used to calibrate three phase, single phase, active or reactive energy meter under work, and also it can be used as voltage, current and power meter to measure AC parameter of three phase power line.
Features and Functions
Three phase active or reactive electricity energy meter;
Calibrate three phase, single phase, active or reactive meter error;
Measure U(voltage) of three phase or single phase;
Measure I(current) of three phase or single phase;
Measure active power of three phase or single phase;
Measure reactive power of three phase or single phase;
Measure apparent power of three phase or single phase;
Measure power factor of three phase or single phase;
Measure phase angle between voltage and current;
Measure frequency of power line;
Display vector diagram;
Display waveform of U and I;
Analyze and display content of harmonic of U and I;
Store and display measured data;
Optional 5 A, 20 A, 100 A, 500 A, 1000 A, 2000 A, 3000A current clamp;
Measure CT variable ratio;
Measure the ratio or lag-angle of low-voltage transformer.
Connect to PC, reading record data and real-time measured data by PC, and download calibration parameter.
Test Voltage |
Range | 5V – 450V |
Error | ± 0.1% (30V – 450V) ± 0.2% (5V – 30V) |
Harmonic | 2 nd -- 31 st |
Test Current |
Range (direct connection) | 5mA – 20A |
Error (direct connection) | ± 0.1% (100mA – 20A) ± 0.2% (10mA – 100mA) |
Range (Clamp Current) | 5mA – 3000A |
Error (Clamp Current) | ± 0.2% (100mA – 3000A) ± 0.5% (10mA – 100mA) |
Harmonic | 2 nd -- 31 st |
Power measure error |
Active power (direct connection) | ± 0.1% (0.1A – 20A) ± 0.2% (0.01A – 0.1A) |
Reactive power (direct connection) | ± 0.1% (0.1A – 20A) |
Energy measure error |
Active energy (direct connection) | ± 0.1% (0.1A – 20A) ± 0.2% (0.01A – 0.1A) |
Reactive energy (direct connection) | ± 0.2% (0.1A – 20A) |
Phase angle |
Range | 0º – 360º |
Error | ± 0.1º |
Frequency |
Range | 45Hz – 65Hz |
Pulse output |
The current is 0 up to 20A | 60000 |
The current is larger than 20A | 600 |
Pulse ratio | 1: 1 |
Output level | 5V |
Pulse input |
Input channel | 1 |
Input level | 5 – 24V |
Input frequency | Max. 2MHz |
Display |
Resolution | 5" LCD(640× 480) |
Function |
Vector diagram | yes |
Waveform | yes |
Energy accumulation | yes |
Communication port | RS232 |
Communication with PC | yes |
Other |
Voltage Supply way | External power |
Voltage Supply 1 | 220V ± 10%, 50/60Hz ± 2Hz |
Voltage Supply 2 | Li-polymer battery, size: 110X51X16mm Nominal output voltage: 7.2V, Capacity: 4000mAh. |
Ambient temperature | 0-- 40degrees |
Relative humidity | 15% -- 85% |
Instrument Dimensions (W × H × D) (mm) | 220× 140× 60 |
Carry Case Dimensions (W × H × D) (mm) | 450× 300× 140 |
Weight (kg) | 1.8kg |
Carry Case Weight (kg) | 4.2kg |
