Portable Ultrasonic Flow Meters, Clamp-on Type/Ultrasonic Flow Transducer/ Ultrasonic Flow Meter
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
Portable Ultrasonic Flow Meters |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
3D Printer |
| Print Color: |
Support Single Color and Double Colors |
| Component Size: |
225 X145 X150mm |
| Thickness: |
0.1mm-0.5mm |
| Nozzle Diameter: |
0.4mm |
| Movement Axis Speed: |
40mm / S ~ 100mm / S |
| Nozzle Speed: |
About 24cc / Hour |
| Nozzle Temperature: |
230 Centigrade |
| Advantage: |
Factory Direct Supply |
| Service: |
Good Service |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN50-100 |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
Product Description
Portable ultrasonic flow meter with printer fixed ultrasonic portable ultrasonic flowmeter(clamp on)
flow meter,Ultrasonic flow meter
1.Accuracy:Better than 1%
2.Repeatability:0.2%
3.Keypad:4x4-key
4.Velocity:0.03-32 m/s
1. Built-in printer
2. Built-in data loggerUltrasonic flow meter is designed to measure the velocity of liquid within a closed conduit.
Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transceiving technologies.
Portable ultrasonic flow meter
Handheld ultrasonic flow meter
Separate fixed ultrasonic flow meter
Applicable medium: Water, sea water, fuel oil and other single, uniform and stable liquid which can conduct ultrasonic
Features: l High Accuracy measuringLinearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%l Non-intrusive measuringNon-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance. l Wide measuring rangeSeveral types transducer for selection, measuring pipe size from DN15mm to DN6000mml Chinese & English menuChinese & English display, easy to operate.l Built-in printerBuilt-in mini thermal printer with instant and timing print functionl Built-in data logger Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applicationsl Multi-signal input &output l Multiple signal interface easy for input and output signals TUF-2000 Series fixed ultrasonic flowmeter is widely used in various industrial field-line flow measurement of liquid.
Typical Applications
The TUF-2000P ultrasonic flow meter can be virtually applied to a wide range of measurements. The measured pipe ranges 15-6000mm. Because the instrument and transducers are non-contacting and have no moving parts; The flow meter can not be affected by system pressure, fouling or wear. Standard transducers are rated to 110 º C. For further information, please consult the manufacturer for assistance.
Sensor:1.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard small
sensor S1 type (magnetic)For diameter:
DN15-100mm Dimension: 45 × 30 × 30mm
Quality: 75 grams
2.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard
M1-type medium-sized sensors (magnetic)For diameter:
DN50-700mmDimensions: 60 × 45 × 45mm
Quality: 250 g
3.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard
large-scale sensor type L1For diameter:
DN300-6000mmDimensions: 80 × 70 × 55mm
Quality: 528 g

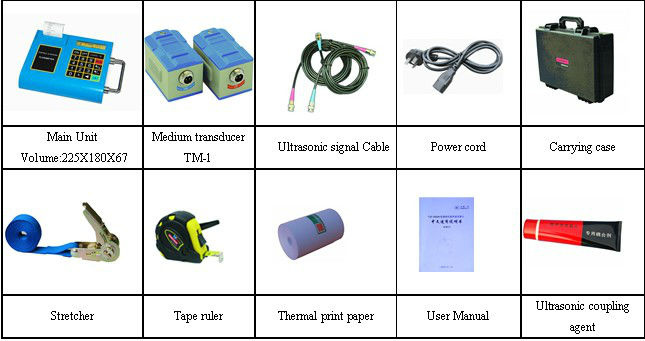

| Items | Specifications |
| Main unit | 2 line x 20 character LCD with backlight |
| Working temperature: -25--60°C |
| Mini thermal printer with 24 line character output |
| 4x4+2 pushbutton keypad |
| RS-485 interface for networking |
| Signal input & output | 1 channel 4-20mA output |
| 1channel OCT output |
| 1channel relay output |
| 3 channel 4-20mA input |
| Medium | Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; |
| Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, |
| liquid food; Ultra-pure liquids; Solvents and other liquids |
| Flow rate | 0~±30m/s |
| Accuracy | Better than ±1% |
| Battery | Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation |
| Power Consumption | 1.5W |
| Power supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
| Weight & Dimensions | 2.5kg ; 225*180*67mm: |

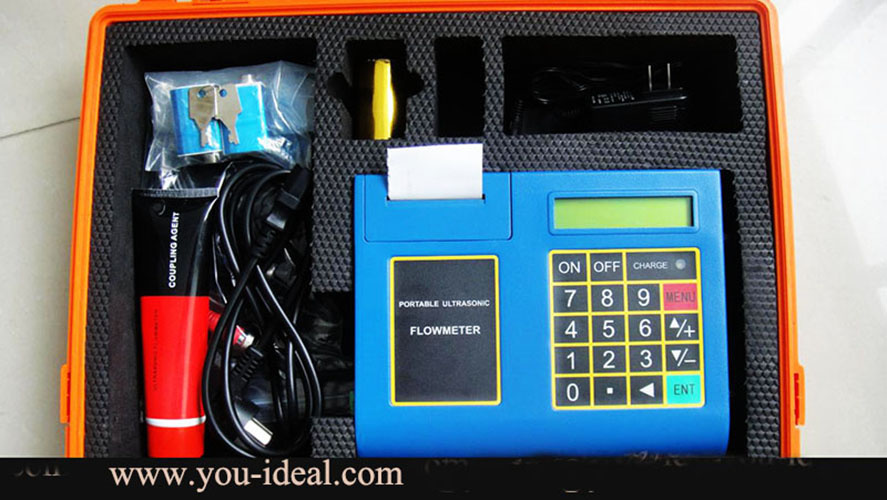

| Remarks | With a high strength carrying case suitable for normal and harsh environment |
