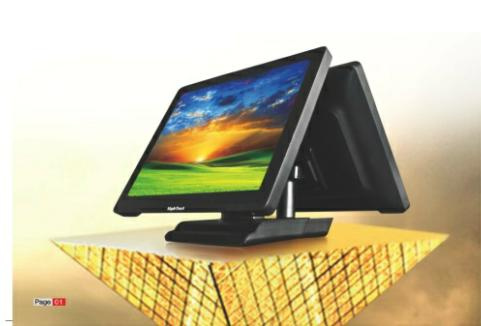

15" all in one touch pos systems, 1037U 1.8g duo core CPU, 2G Ram
Screen size |
15 |
|
|
|
Resolution |
1024×768 |
|
|
|
Brightness |
250cd/M 2 |
|
|
|
color resolution |
16.7M |
|
|
|
contrast ratio |
600:1 |
|
|
|
touch screen |
Muti-touch Projected Capacitive touchscreen support 10point/ MapleTouch-J5wire resistive touch screen(single point 35,000,000times)(USB/RS232 touch controller interface optional) |
Motherboard |
Mini-ITX MP-1037U |
CPU |
Intel® 1037U Dual Core CPU |
Ram |
2GB DDR3-1333 SDRAM |
Hard disk |
1×2.5 " SATA II SSD-32G/ HDD-320G |
Chipset |
Intel® NM70 Express Chipset |
SATA |
1×SATA II 3GB/s HDD/SDD |
1×SATA III 6GB/s HDD/SDD |
1×M-SATA |
LAN |
1×realtek RTL8111DL (100/1000Mbps) |
Audio |
Realtek ALC887 HD Audio Codec integrated |
I/O |
RS232 |
2×DB-9 RP-SMA MaleRS232 signal interface (can add 2 more ) |
USB |
4×USB 2.0 |
Audio |
1×DB-15 Female head VGA interface |
1×LVDS 24-bit/18bit LVDS output |
Audio interface |
1×Audio Out 1×MIC In |
LPT |
1×DB-25-pin Female head VGA interface |
PS2 |
1×6-pin PS2 (Keyboard/mouse) |
Expansion bus |
1× PCI Express x1 |
1× Mini PCIE |
GPIO |
1× GPIO (standard no this interface ,but can customize) |
Operating temperature |
-10~60 |
Storage temperature |
-30~80 |
humidity |
20~85% |
earthquake-proof |
3 Grms/5~450Hz |
Certification |
CCC\CB\CE\FCC\ROHS |
power input |
100-240VAC ~ 50~60HZ 1.5A |
power output |
12VDC 5A MAX |
Material |
Alloy\outlet board is stainless steel |
Install way |
Panel,frame,wall-mounted,desktop,VESA |
N.W/G.W |
5.65KG/3.9KG |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
