Product Specifications
Prod Model: |

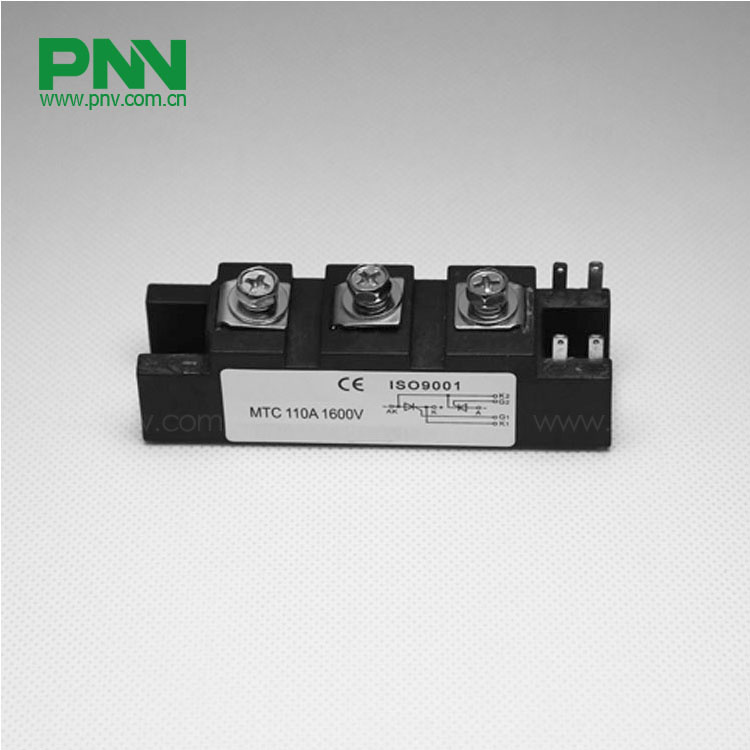

MTC110A1600V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Current: |
25A-1000A |
Itav: |
25-100A |
Vdrm Vrrm: |
400-6500V |
Manufacturing Technology: |
Logic IC |
Material: |
Element Semiconductor |
Type: |
N-type Semiconductor |
Package: |
SMD |
Product Description
1)Electrically-isolated chip and baseboard AC 2500V
2)Sealing package according to international standard
3)Full crimping structure, sensitive to temperature and power cycle duty
4)Modules under 350A with compulsive wind-cooling. Modules under 400A either with wind-cooling or water-cooling
5)Convenient installation, use and maintenance
6)Compact and lightweight
7)Welding technique under the protection of vacuum and hydrogen gas
Payment:
A. Full payment in advance by TT for less than 3000 USD order.
B: 30% advance payment, balance before shipment.
C: 80% advance payment, balance against the copy of B/L at sight.
D: None advance payment request if to be your agent in China, 2% commission of full order.
E: Negotiable.
Delivery time:
According your order 3-30 days for difference.
Mold design 1-20 sets 30 days finished and 1-5 days test samples.
20-40 sets 30-60 days. 7 days for test samples.
About Us
PNV founded in 2008 in Wenzhou of China, provided electrical connection products from the beginning. The company's first major success products was the electrical terminal block, busbar, plastic injection mould and punch mold.
We can customized according to requirements of terminal block, earth link and busbar products. Sophisticated production technology and equipments to ensure that we can provide customers products in competitive price, good quality and short delivery time.
Meanwhile, also we provide product sourcing services, help customer inspection and dispatch of goods in china. In areas of high and low voltage electrical we cooperate with a lot of manufacturers. Including rectifiers, relays, all kinds of switches, power supply, Cable, signal lights, push button and LED light bulbs.
We are committed to helping our clients improve enterprise brand image, enhance the brand value, shorten the development cycle, reduce the production cost. We can easily provide one stop OEM service. Provide reliable & economic solutions.
For more product information please visit our web page http://www.pnv.com.cn. Thank you.
MTC/MTK/MTA/MTX/MT |
|
|
A:+ K:- G:Trigger |
Type |
It(AV) |
VDRM VRRM |
ITM VTM |
IDRM IRRM |
IGT |
VGT |
IH |
dv/dt |
di/dt |
Tjm |
Iso |
Case |
A |
VDRM VRRM |
V |
A |
mA |
mA |
V |
mA |
V/us |
A/us |
°C |
V(AC) |
MTX25A |
25 |
400-2600 |
1.5 |
80 |
8 |
100 |
2.5 |
100 |
800 |
50 |
125 |
2500 |
1.2.3.4.59 |
MTX55A |
55 |
400-2600 |
1.5 |
80 |
8 |
100 |
2.5 |
100 |
800 |
50 |
125 |
2500 |
1.2.3.4.59 |
MTX70A |
70 |
400-2600 |
1.9 |
170 |
10 |
100 |
2.5 |
100 |
800 |
50 |
125 |
2500 |
2.4 |
MTX90A |
90 |
400-2600 |
1.9 |
270 |
15 |
100 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
2.4 |
MTX110A |
110 |
400-2600 |
1.9 |
330 |
20 |
100 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
2.4 |
MTX130A |
130 |
400-3500 |
1.9 |
410 |
25 |
150 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
5.6.7 |
MTX160A |
160 |
400-3500 |
1.9 |
480 |
25 |
150 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
5.6.7 |
MTX200A |
200 |
400-4200 |
1.9 |
600 |
30 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
6.7 |
MTX200A |
200 |
400-4200 |
1.9 |
600 |
30 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
8.9 |
MTX250A |
250 |
400-4200 |
1.9 |
750 |
30 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
10 |
MTX300A |
300 |
400-4200 |
1.9 |
900 |
40 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
10 |
MTX400A |
400 |
400-6500 |
1.9 |
1050 |
40 |
200 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
10.57 |
MTX500A |
500 |
400-6500 |
1.9 |
1500 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
10.57 |
MTX600A |
600 |
400-6500 |
1.9 |
1800 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
11 |
MTX800A |
800 |
400-6500 |
1.9 |
2400 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
11 |
MTX1000A |
1000 |
400-6500 |
1.9 |
3000 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
12 |
MTX500A* |
500 |
400-6500 |
1.9 |
1500 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
14 |
MTX600A* |
600 |
400-6500 |
1.9 |
1800 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
15 |
MTX800A* |
800 |
400-6500 |
1.9 |
2400 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
15 |
MTX1000A* |
1000 |
400-6500 |
1.9 |
3000 |
40 |
200 |
3 |
100 |
800 |
100 |
125 |
2500 |
16 |
* : Water-cooling |
MTX = MTC / MTK / MTA / MTX / MT |
Drawing of Case please contact PNV sales.
PDF catalog download : http://www.pnv.com.cn/pdf/rectifiers.pdf |
