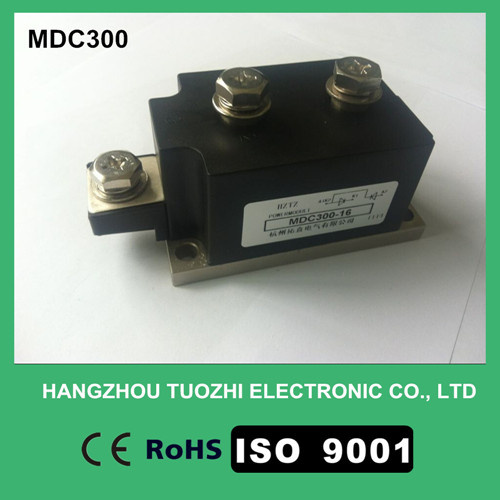

Power Rectifier Diode Module Mdc300

Power Rectifier Diode Module Mdc300
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T,Paypal

Product Specifications

Prod Model: MDC300

Product Description

Style No.: MDC300

Features:
Isolation voltage: 2500V~
Planar passivated chip
Improved temperature and power cycling
Small and light, simple mounting

Application:
Frequency converter, AC/DC motor control, Rectifying power

Specification:
IF(AV)(Max average on-state current): 300A
IF(RMS): 471A
VRRM(Reverse repetitive peak voltage): 600~1800V
IRRM(Max reverse repetitive peak current): 5mA
IFSM(Max on-state non-repetitive surge current): 12.5KA
I2t(Max surge current average time integration): 797000A2S
VFM(Max On-state peak voltage): 1.3V
Rth(j-c)(Max thermal impedance junction to case): 0.13ºC/W
Rth(c-h)(Max thermal impedance case to heatsink): 0.04ºC/W
Viso(Insulation voltage): 2500V~
Tsbg(Storage temperature): -40~125ºC
Wt(weight): 700g
Hangzhou Tuozhi Electronic Co., Ltd is a specialized manufacturer of electric elements. We have Advanced DC electrical components research and development laboratories and reliability experiment platform.

Hangzhou Tuozhi Electronic Co., Ltd located in Hangzhou, Zhejiang, China, have been specialized in semiconductor area almost 10 years, and we have got ISO9001, ISO14001, RoHS and CE certificate.

The main products include:

Thyristor module

Rectifier module

Thyristor/Diode module

Single-phase rectifier/three-phase rectifier

Bridge Rectifiers

Super Fast Recovery Rectifiers

Quick thyristor

MOS relay

Solid State Relay

Three-phase solid state relay elements

Smart voltage adjustment module

SCR phase-shift voltage regulator

Heatsinks

Instrument and apparatus

Photovoltaic defence-attack diode module
