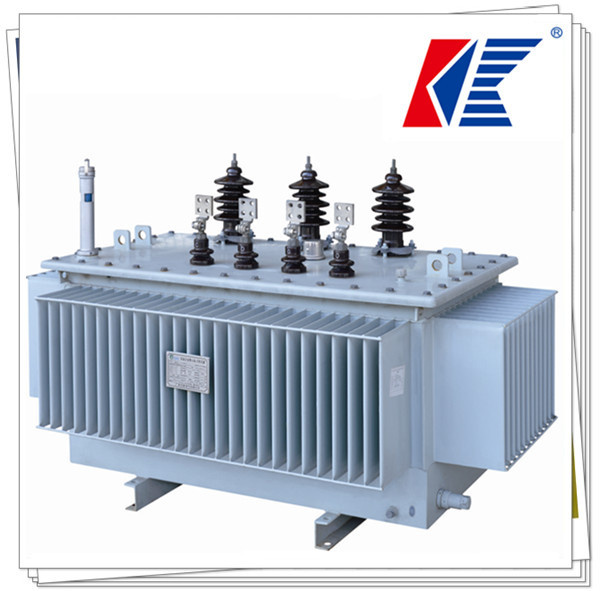

Power Supply Distribution Three Phase Transformers
| Price: |
US $ 2399/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Power Supply Distribution Three Phase Transformers
Summary
The seasonal variation, personal mobility, and the difference of power consumption of residents at different time periods of day and night lead to big load fluctuation of power distribution network of China, the capacity of distribution transformer doesn't match the power demands, the specific transformers of general enterprises run at no load or at light load in over 70% of the time, and the common transformers of residents run at no load or at light load in over 80% of the time, resulting in high loss of transformer.
Introduction
1. Brief Description The seasonal variation, personal mobility, and the difference of power consumption of residents at different time periods of day and night lead to big load fluctuation of power distribution network of China, the capacity of distribution transformer doesn't match the power demands, the specific transformers of general enterprises run at no load or at light load in over 70% of the time, and the common transformers of residents run at no load or at light load in over 80% of the time, resulting in high loss of transformer. To address such situation, the Company develops the high-overload oil-immersed transformer. The insulating material of this new transformer reaches the standard of insulation class B and higher. On the basis of normal temperature rise requirements, this new transformer satisfies staged continuous operation for 6h at 1.5 multiples of rated capacity (3h respectively at load rising and dropping stages), 3h at 1.75 multiples of rated capacity (1.5h respectively at load rising and dropping stages), and 1h at 2.0 multiples of rated capacity, without affecting the normal service life of transformer. The temperature rise of high-overload distribution transformer satisfies class-F insulation limit value, and the current applying process curve of temperature rise test is shown by Fig. 1. Meanwhile, according to the core material, this new transformer can be classified into the high-overload oil-immersed transformer with amorphous alloy core and the high-overload oil-immersed transformer with the core made of silicon steel sheet.
2. Application Scope

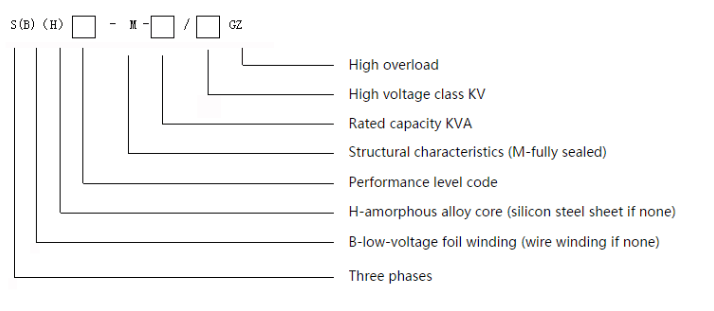

The product has been widely applied in new and reconstruction projects of urban and rural power grids, and is especially suitable for the areas where the seasonable fluctuation of power consumption is big, the difference of power consumption at day and night is big and the daily maintenance is difficult. As the transformer adopts fully sealed structure and avoids contact with the air, it may run in the humid environment and is the ideal power distribution equipment for urban and rural power distribution network.3. Model Description
4.StandardsGB1094.1, GB1094.2, GB1094.3, GB1094.5, IEC 60076-1:2000, IEC 60076-2:1993, IEC 60076-3:2000, IEC 60076-5:2006,GB/T 6451, etc5. Normal Service ConditionsHeight above sea level: Not greater than 1,000m;Ambient temperature: Maximum temperature: +40ºC;Maximum daily average temperature: +30ºC;Maximum annual average temperature: +20ºC;Minimum outdoor temperature: -25ºC;Installation environment: ground acceleration caused by earthquake: ag<2m/s6. Features1. The product may overload at double the rated capacity for 1h, at 1.75 multiples of rated capacity for 3h and 1.5 multiples of rated capacity for 6h while ensuring normal service life of the transformer. 2. The low voltage adopts foil winding, thus enhancing the ability of the transformer to withstand the sudden short circuit; as the low voltage adopts copper foil winding, the electric field distribution of transformer is uniform. The low-voltage inner frame adopts formed hard paper tube, while the high-voltage outer half lap is wound with tasteless glass adhesive tape layer by layer. The compression pad adopts the laminated wood, thus enhancing the mechanical strength of the transformer. The transformer uses vacuum oil filling, which may totally eliminate the bubble in the coil, so as to improve the overall ability of the transformer to withstand the sudden short circuit.3. The tank rim adopts stainless steel bolts, with beautiful appearance. 4. The oil tank adopts the fully sealed tank, thus isolating the transformer oil from the air, and slowing down the aging of transformer oil. The sealing elements adopt formed parts, with the sealing reliability of the transformer enhanced.
If you are interested in our products, feel free to contact me!
Contact Information:
Name: Mavis
Mobile: +86 13630156304
Guangdong Keyuan Electric Co., Ltd.
Add: 15 Guanghong Road, Changhongling Industrial Park,
Shishan Town, Nanhai, Foshan,
Guangdong Province,
China
Web: www.keyuanele.com
Tel: 86-757-81787100-8688
Fax: 86-757-81267911
Zip Code: 528200

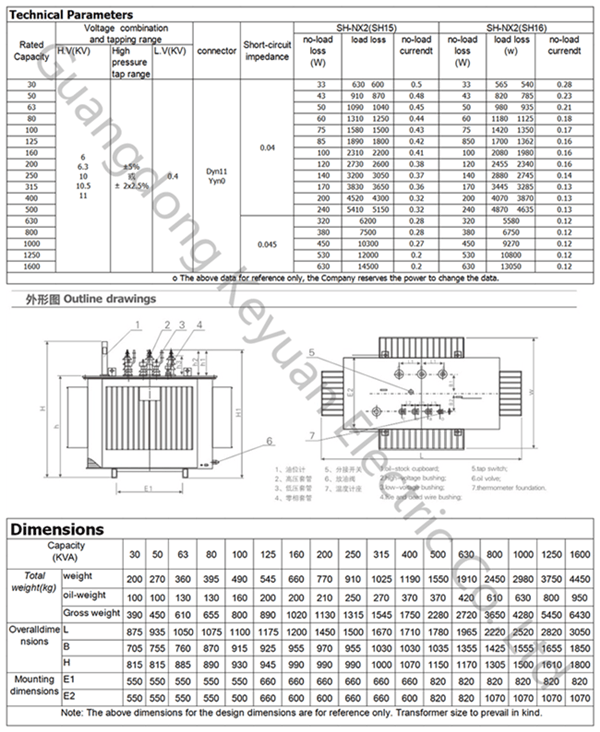

| Prod Model: |
S (B) H15 Amorphous Alloy Core Power Transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Porduct Name: |
Power Supply Distribution Three Phase Transformers |
| Product Type: |
High Overload Amorphous Alloy |
| Secondary Voltage: |
0.4kv/10kv |
| Rated Capacity: |
30kVA-2500kVA |
| Optional Accessories: |
Temperature Control, Fans, Enclosures, CT |
| Color: |
Gray |
| Tap Range: |
±5 or ±2X2.5% |
| Vector Group: |
Dyn11 or Yyn0 |
| Primary Voltage: |
6kv/ 6.3kv/ 10kv/ 10.5kv/ 11kv/ 13.2 Kv |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Application: |
Lighting |
| Phase: |
Three |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Frequency Characteristics: |
50-60Hz |
| Brand: |
Keyuan |
