Product Specifications
| Prod Model: |
EI 24/28/35/41/48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Coil Structure: |
Toroidal |
| Insulation Grade: |
B |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Certification: |
RoHS,CE |
| Brand: |
Kd |
Product Description

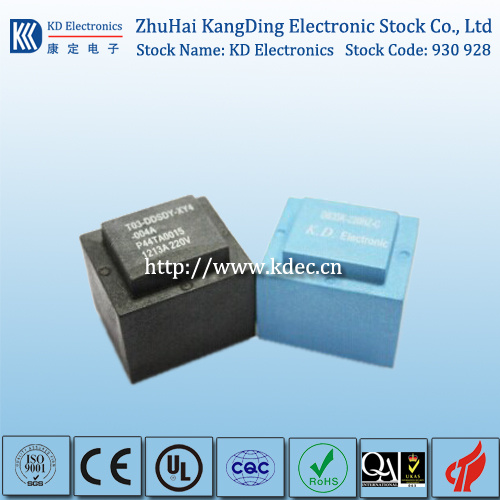

The environmentally friendly transformer adopts PBT material with high insulating property that is molded with transformer in special die. compared with the transformer being filled and sealed with epoxy resin, it needs no chemical reaction between material A and B, hence there will be no inferior state caused by improper proportion or uneven mixture.
In addition, the insulated medium of environmentally friendly transformer shares one body with its shell, so dropped shell and open circuit caused by damaged outgoing line will not occurs for the sake of different expansion coefficient of epoxy resin, shell and body of transformer.
More importantly ,PBT can be recycled, so there is no pollution and waste, which is the highlight of the product in current society emphasizing energy saving and environment protection.
| The conventional performance index |
Core
model | Mounting structure(mm) | Electronic Performance |
| length | width | height | array pitch | output power | input/output voltage | The first isolation strength |
| EI24 | 31 | 20.2 | 19.1 | 22 | 0.5~2.25 | 0.01~1000V AC/50HZ | 4KV |
| EI28 | 31 | 28 | 25~35.5 | 20 | 0.5~2.25 | 0.01~1000V AC/50HZ | 4KV |
| EI35 | 37.5 | 33 | 32~38 | 22 | 0.65~3.4 | 0.01~1000V AC/50HZ | 4KV |
| EI41 | 44 | 43 | 36~41 | 23.5~33.5 | 1.0~8.3 | 0.01~1000V AC/50HZ | 4KV |
| EI48 | 51.5 | 43.5 | 40 | 30 | 3.0~15 | 0.01~1000V AC/50HZ | 4KV |
1. reference and quoted standard
GB19212.5-2006specific requirement of general service isolation transformer
GB19212.7-2006specific requirement of general service safety isolating transformer
GB19212.18-2006specific requirement of Switch type power transformer
2. environment condition
Work temperature:-40ºC~+70ºC
Storage temperature:-40ºC~+80ºC
Relative humidity: Relative humidity≤95%,year average humidity≤75%
ambient pressure:63.0kPa~106.0kPa(below 4000m altitude
3.life-span requirement:
At least 10years if it is used in specified environment.
