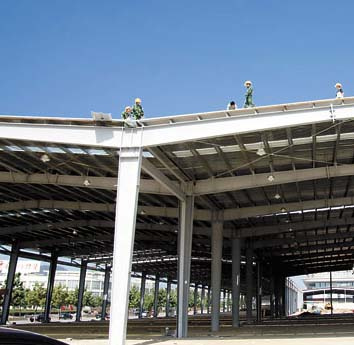

Pre-Engineered Steel Structure Framwork for Buildings

Pre-engineered steel structure framwork for buildings

TECHNICAL DETAILS:
1. Wind Load, Snow Load, Earthquake and Rainfall
2. Length, Width, Eave Height and Roof Slope
3. Single Floor or Multi-floor
4. Clear Span or Multi-span
5. Requirements on the brick wall
6. Requirements on the roof and wall materials
7. Requirements on the type & quantity of window and door
8. Requirements on the natural lighting & ventilation system

MAIN STEEL PART
1. H section steel columns, beams and wind-proof columns
2. With treatment of one time red-oxide primer painting and two times grey facing painting

SECONDARY STEEL PART
1. Roof & Wall C/Z Purlin
2. Tie Bar: φ 89*3.0
3. Roof Support & Support between Columns: φ 20
4. Bracing Bar: φ 12
5. Knee Bracing: Angle Steel

ROOF & WALL CLADDING
1. Roof & Wall Corrugated Single Steel Sheet: 0.3mm-0.6mm
2. Roof & Wall Sandwich Panel Insulated with EPS Foam, Glass wool, Rock wool and PU: 50mm-150mm
3. Transparent Sheet (FRP): 1.0mm-2.0mm
4. Flashings: Made by Color-coated Corrugated Steel Sheet

WINDOW & DOOR
1. Window: PVC Window or Aluminum-alloy Window
2. Door: Sliding Door or Roll-up Door

FASTENERS
High-strength Bolt; Common Bolt and Nut; Self-tapping Screws; Foundation Bolt and Nut, ETC

DELIVERY
1. Lead Time: 30-45 days
2. Loaded in 20GP, 40GP; 40HC; 40OT; 45 HC
3. Package: Standard Package

OTHER OPTIONAL ACCESSORIES
1. Gutter
2. Downpipe
3. Brick Wall: The height of brick wall is depended on client's need
4. Ventilation System
5. Lifting Height of Crane: >6m
6. Lifting Weight of Crane: 3-30T

PAYMENT TERMS
1.30% T/T before production; The balance before shipment

(1) Simple Steel Structure Workshop
Main structure	Single span: L -shorter than 18m, H -lower than 6m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet
	Door	Simple steel rolling shutter (within 10m2)
	Window	Very few
Usage	Warehouse, workshop
Standard and suitable market	Africa, Middle-East, South America (no snow, wind load below 0.4kn/m2)

(2) Standard Steel Structure Workshop
Main structure	Single span: L -shorter than 24m, H -lower than 8m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet or 50mm EPS sandwich board
	Door	Wind resistance rolling door(within 15m2)
	Window	Alu. Alloy (can use with skylight)
Usage	Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market	Snow loading below 0.5kn,wind loading below 0.5kn/m2
