Product Specifications
| Prod Model: |
DH-48S-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Consumption: |
5W |
| Mounting Method: |
Socket |
| Rated Voltage (VAC): |
110, 220, 380 50/60Hz |
| Operating Voltage: |
85~110% of Rated Voltage |
| Rated Voltage (VDC): |
12, 24 |
| Mechanical Life: |
10^7 Operations |
| Electrical Life: |
10^5 Operations |
| Ambient Temperature: |
-10°c~+55°c |
| Ambient Humidity: |
45-85% Rh |
Product Description
Specification

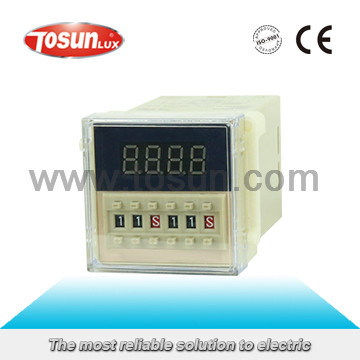

| Classification | Pre-formulation Time Relay |
| Model | DH-48S | DH-48S-S |
| Dimension | 48H x 48W x 97.4D | 48H x 48W x 97.4D |
| Mounting Socket | Surface type | - | - |
| Flush type | - | - |
| Function | - | - |
| Operating voltage | 85~110% of rated voltage | 85~110% of rated voltage |
| Rated voltage | AC:110V 220V 380V | AC:110V 220V 380V |
| DC: 12V 24V | DC: 12V 24V |
| Delay time range | 0.01s~99.99s | 0.01s~99.99s |
| 1s~99m99s | 1s~99m99s |
| 1m~99h99m | 1m~99h99m |
| Delaying control precision | <=0.03%±0.05% | <=0.03%±0.05% |
| Time limit(1C) | - | - |
| Contact capacity | 220VAC 5A DC30V 5A(resistance) | 220VAC 5A DC30V 5A(resistance) |
| Mechanical life | 10^7 times | 10^7 times |
| Electrical life | 10^5times | 10^5times |
| Ambient temperature | -10ºC~+55ºC | -10ºC~+55ºC |
| Ambient humidity | 45-85%RH | 45-85%RH |
| Power consumption | 5W | 5W |
