>Up to 4/8/16 cameras with 1080p realtime preview
>H. 264 dual-stream video compression
>All channel 720P
>HDMI / VGA/BNC simultaneous video output
>4/8 channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 2 SATA HDD up to 8TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| Model | HCVR5204A | HCVR5208A | HCVR5216A |
| System |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Video |
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
| Audio |
| Input | 4 channel, BNC |
| Output | 1 channel,BNC |
| Two-way Talk | Reuse audio input/output channel 1 |
| Display |
| Interface | 1 HDMI, 1 VGA,1 BNC |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Video/Audio Compression | H.264 / G.711 |
| Resolution | 720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
| Record Rate | Main Stream: | 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
| Extra Stream | CIF/QCIF(1~25/30fps) |
| Bit Rate | 48~6144Kb/s |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection&Alarm |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Alarm Inuput | 4 channel | 8 channel | 16 channel |
| Alarm Output | 3 channel |
| Playback & Backup |
| Sync Playback | 1/4 | 1/4/8 | 1/4/8/16 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
| Network |
| Ethernet | RJ-45 port (10/100M/1000M) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD | 2 SATA port, up to 8TB |
| Auxiliary Interface |
| USB Interface | 2 ports(1 Rear), USB2.0 |
| RS232 | 1 port, For PC communication & Keyboard |
| RS485 | 1 port, For PTZ control |
| General |
| Power Supply | DC12V/5A |
| Power Consumption | 15W(without HDD) |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa |

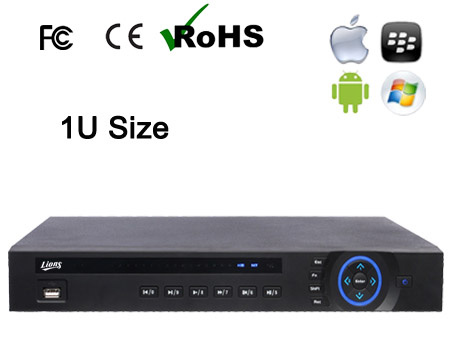

| Dimension(W×D×H) | 1U, 375mm×285mm×45mm |
| Weight | 2.35KG(without HDD) |
Lions Technology Co., Ltd. is a leading surveillance equipment manufacturer in China, established in 2008. We have been fully committed to the design, production and distribution of reliable security surveillance device. We provide CCTV products such as DVRs, PTZ domes and CCTV cameras. These quality devices have been exported to many countries and regions such as America, Australia, New Zealand, Vietnam, India, Russia, Britain, Mexico, South Africa and so on.
Our DVR enables the efficient recording, storing and managing of video, and our surveillance camera are capable of capturing high quality images under varying environmental conditions. LIONS products are utilized extensively in security monitoring systems for banks, roads, hotels, schools, supermarkets, railway station, etc.
Advanced production facilities and manufacturing techniques ensure the integrity of our digital video recorder, PTZ dome and CCTV camera. For instance, the Zcheck solder-paste viscosity tester is imported from Britain to ensure the accuracy and uniformity of our tin paste composition. Siemens automatic surface mounting machines are imported from Germany for the efficient production of system boards. The ERSA reflow oven, also imported from Germany, is energy efficient and provides superior soldering quality. Maintenance checks are scheduled periodically to ensure good working performance and extend the service life of production equipment.
LIONS surveillance equipment is CE and FCC certified. All of our production processes are eco-friendly and in strict conformation with ISO14001 and RoHS standards.
