Product Specifications
| Prod Model: |
D-U803 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LCD Display |
| Operate Method: |
Automatic |
| Warranty: |
One Year |
| Delivery Time: |
15 Days After Receive The Deposit |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
3D Coordinate Measuring Machine |
Product Description

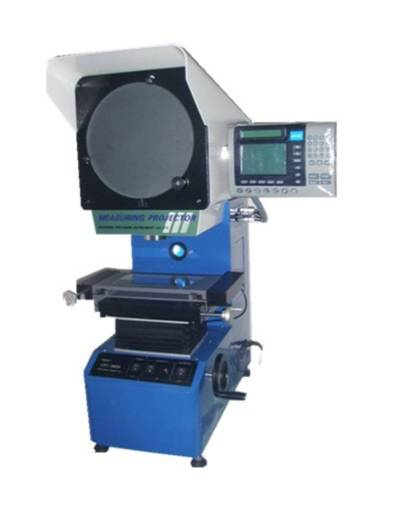

Precision 3D Coordinate Measuring Instrument
Precision 3D Coordinate Measuring Instrument is widely applicable in machinery, electronics, instrumentation, plastic and other industries.
3D Coordinate Measuring Instrument has a wide variety of data processing, display, input and output functionswhich can export data to Micrsoft Excel and AutoCAD for data processing.
Equipment discription:
High sharpness Industrial Projector, also known as projector, industrial projector, used to shape complex stampings, gears, cams, threads and more measured contour model, easy to use, high efficiency, is a commonly used measure of optical instruments.
Applicable industry:
3D Coordinate Measuring Instrument widely used in major machinery manufacturers including aviation and aerospace industries, watches, electronics industries, instrumentation industry, research institutes and departments at all levels of testing metering stations, metering and so on.
Main feature:
1, modern design, compact structure, easy operation.
2, length, angle measurements of realization.
3, non-spherical condenser illumination, bright field of view, illumination uniformity, image clarity.
4, multi-function digital display systems, instruments with RS232 interface and data processing software.
5, strong heat system, heat dissipation, good performance, more stable.
6, using high brightness, long life lighting.
|
Model |
HD-U803 |
HD-U803-1 |
HD-U803-2 |
|
Table |
Metal table size(mm) |
340 × 152 |
350×170 |
450 × 280 |
|
Glass table size(mm) |
196 × 96 |
246× 120 |
306× 196 |
|
X coordinate travel (mm) |
150 |
200 |
250 |
|
Y coordinate travel (mm) |
50 |
100 |
150 |
|
Z coordinate travel (mm) |
90(Focusing) |
100( Focusing ) |
100( Focusing ) |
|
Measuring accuracy (μm) |
3+L/50 |
3+L/75 |
3+L/75 |
|
X, Y Block, Digital Resolution |
0.001mm |
|
Projection screen |
Size (mm) |
Ø312, Terms of Use>Ø300( Engraved with the word line m ) |
|
Rotation range |
0~360° |
|
Rotation Digital Resolution |
1' or 0.01° |
|
Mirror Matter |
Magnification |
10X( Necessary ) 20X(Option) 50X ( Option ) 100X ( Option ) |
|
Line field of view in object (mm) |
Ø30 Ø15 Ø6 Ø3 |
|
Work in object distance (mm) |
77.7 44.3 24.5 25.3 |
|
Data Processor |
DC-3000 multi-function data processing system, all the Chinese showed they can do more sampling, coordinate rotation, point, line, distance, angle measurement |
|
Instrument lighting |
Transmission and reflection of light source are: 24V, 150W halogen lamp |
|
Instrument Power |
110V/ 220V(AC), 50/60HZ, Total power 400W |
|
Cooling method |
Forced air-cooled (3 axial fans) |
|
Dimensions |
L × W × H (mm) |
792× 544 × 975 |
770 × 550× 1120 |
770 ×550× 1120 |
|
Weight |
Unit Kg |
150 |
150 |
150 |
|
Options |
Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector. |
