Product Specifications
| Prod Model: |
60A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0-1000gu |
| Application: |
Paint, Ink, Stoving Varnish, Coating, Wood Product |
| Projection Angle: |
60° |
| Measuring Spot: |
(Ellipse: Long Axis*Minor Axis)60° : 9*15mm |
| Division Value: |
0-1000:0.1 1000-2000:1 |
| Indication Error: |
+/-1.5 |
Product Description
Product Features
1. Portable
Humanism design, Light weight, one button operation, easy-to-use operation. English operating system
2. Stable
The excellent stability gu ≤ 0.2
3. Accurate
Precision measurement performance with core technological competence.
The accuracy of the instrument is an industry-leading level
4. More modes
Optional angle mode, Sampling mode, Signs for low battery and full memory. Automatic shutdown etc.
5. More functions
Data browsing function, Manually enter standard samples data, USB communication function, High-end PC color analysis and management software and micro printer. etc.
6. Large Data Storage
5000 test records storage, data storage structure: 100samples and it can save 500 group data for each sample.
7. Easy operation
One key to operation and get the values in a measurement. Button for "up" and "down",Simple user interface. Easy to use. The incident angle of light conforms to ISO2813.
8. Innovative Technologies
Core technological configuration with a number of innovative technologies.
Self calibrate, Direct positioning, More Function Expansion, etc
Details

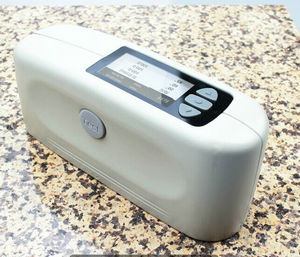

| Product Name | Gloss meter |
|
|
| Model | 60A |
|
|
| Measurement Range | 0-1000Gu |
|
|
| Application | Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material. |
|
|
|
|
|
|
|
|
| Instrument Dimensions | 159x49x72mm |
|
|
| Projection Angle | 60° |
|
|
| Measuring Spot | (ellipse: long axis*minor axis)60°:9x15mm |
|
| Measuring Mode | Statistics Mode/sampling Mod/Continuous Mode/manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode |
|
|
| Standard Sample Setting | Manually setting/bring out stored data for setting/manually setting tolerance |
|
|
| Data Storage | 5000 groups |
|
|
| Language | Chinese/English |
|
|
| Output | connect the micro printer to realize real-time output of measured data |
|
|
| Division Value | 0-1000:0.1 1000-2000:1 |
|
|
| Repeatability | 0-100:0.2 >100:0.2% |
|
|
| Indication Error | ±1.5 |
|
|
| International Standard | ISO-2813,ASTM-C584,ASTM-D523,DIN-67530,ASTM-D2457,JND-A60,JND-P60 |
|
|
| Standard Accessories | Power adapter/user manual/warranty certification/standard board/software Gloss W |
|
|
| Optional Accessories | micro-printer /PC color analysis |
|
|
