Product Specifications
| Prod Model: |
RM-2400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Plastic Type: |
Thermoplastic |
| Feature: |
Energy Saving |
| Clamping Force: |
2400kn |
| Opening Stroke: |
530mm |
| Suitbale Material: |
PP PE PS Pet HDPE |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Automation: |
Automatic |
| Making Method Of Parison: |
Injection Blowing |
| Raw Material: |
PET |
| Computerized: |
Computerized |
| Certification: |
TUV SGS, ISO CE TUV SGS |
| Type: |
Injection Mold Machine |
Product Description

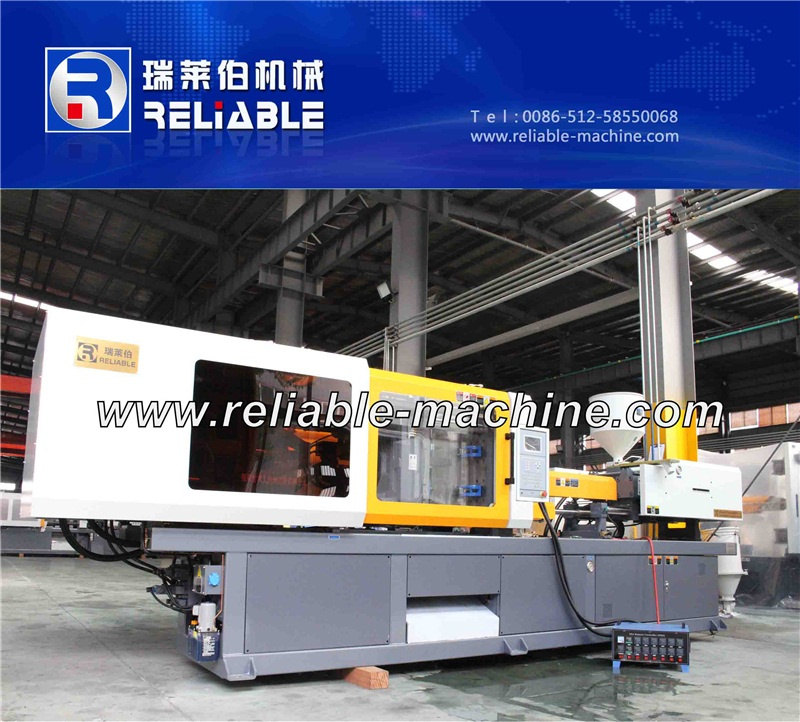

Cap& Preform Injection Blow Molding Machine/Line
Features:
1). The main-frame of theInjection Mold Machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %. It can reduce paper wasting, it is different from other factories.
2). The Injection Mold Machine can send the bottom paper to the cup automatically and adjust itself because of a spring, it is also different from other factory.
3). Inside of the Injection Mold Machine, we use three ranges chains instead of conventional two ranges chains, it is more fastness, make long service. Some factory only have two range chains.
4). About preheating and main heating, we use aluminium instead of conventional iron pipe. Once machine stop unormally, the cup in side, can not burning it can be much safer.
5). The Injection Mold Machine surface of plate we use stainless steel instead of iron, it can be a much cleaning, sanitation.
6). Most of our wiring device we use adopts from overseas brand. (Japanese omron)
7). This injection Mold Machine is very easy to operate, with PLC touching screen Can storage every different mould operation data, like temperature, shooting time etc.
Cap& Preform Injection Blow Molding Machine/Line
How to get your suitable machine or production line?
Find our products through Reliable Machinery Co., Ltd in Google, Baidu. Bing, Alibaba. COM etc
Enquiry: Contact us by email, phone call, fax, Instant Messenger and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. What kind of package, plastic bottle, glass bottle: Volume, height, neck diameter, diameter of bottle or other please inform us of details.
4. Sole machine or whole production line.
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
Support & re-ordering.
What service Reliable Machinery Co., Ltd can offer you?
Your inquiry related to our product & price will be replied within 24hours
Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Working time: 8: 30am ~6: 00pm, Monday to Friday(UTC+8).
OEM & ODM projects are both available
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
|
Item |
Unit |
Data |
|
Max. clamping force |
KN |
2400 |
|
Max. opening force |
mm |
530 |
|
(V×H)Space between tie bars |
mm |
555×555 |
(min-max)
Mould height |
mm |
200-570 |
|
Max. daylight |
mm |
1100 |
|
Ejector force |
KN |
61.5 |
|
Ejector stroke |
mm |
135 |
|
Ejector quantity |
|
9 |
|
Screw diameter |
mm |
55 |
60 |
65 |
|
Screw L/D ratio |
L/D |
22.9 |
21 |
19.4 |
|
Theoretical shot volume |
cm 3 |
665 |
791 |
929 |
|
Plasticising weight(PS) |
g |
605 |
720 |
845 |
|
Injection pressure |
Mpa |
210 |
176 |
150 |
|
Theoretical injection rate(PS) |
g |
176.5 |
210 |
245 |
|
Plasticising capacity(PS) |
g/s |
26.4 |
32.5 |
40 |
|
Screw torque |
N.m |
2000 |
|
Max. screw rotate speed |
r/min |
150 |
|
Injection stroke |
mm |
280 |
|
Pump motor power |
KW |
22 |
|
Pump pressure |
Mpa |
16 |
|
Heating power |
KW |
18.5 |
|
Heating zone |
|
5 |
|
Size |
m |
6.2×1.6×2.1 |
|
Net weight |
t |
8.0 |
|
International designation |
|
2400-1390 |
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
