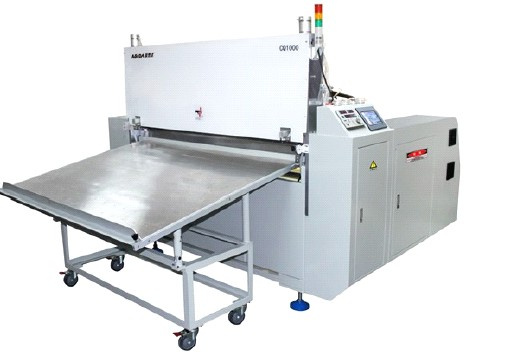

Automatic Dust-free Prepreg Cutting Machine for Cutting Rolled Prereg
Product Attributes:
Product name |
Dust-free Prepreg Cutting Machine |
Brand Nam |
ASIDA |
Model Number |
CQ2000 |
Place of Origin |
China |
Packaging Details |
Wooden Carton |
Dust-free Prepreg Cutting Machine USAGE
This Product is used for cutting various types of prepreg, the cutting edge is neatly out of the material, no flash, can not afford to dust , not white , not charred, and edged automatically , No follow-up treatment , has solved
eht problem of plagued the industry for years of traditional mechanical cutting prepreg dust pollution,which
caused by films, glass falling etc.
Dust-free Prepreg Cutting Machine Features:
1, Precise: Adopting high-precision drive mechanism and servo control system.
2, High quality:Tidy cutting edge,automatic edge sealing ,no wiredrawing and no obvious dust.
3, Efficient: The cutting efficiency has been improved by preheating and sending the material at the same
time,
After cutting the material can be used directly, no need of edge sealing and vacuuming;
PP can stack automatically and the rim material can be rolled up automatically;
Parameters can be packed up and brought up directly.
Dust-free Prepreg Cutting Machine Client:
Project |
Specifications |
Model |
ASIDA-CQ2000 |
Cutting accuracy |
±1mm |
Quality |

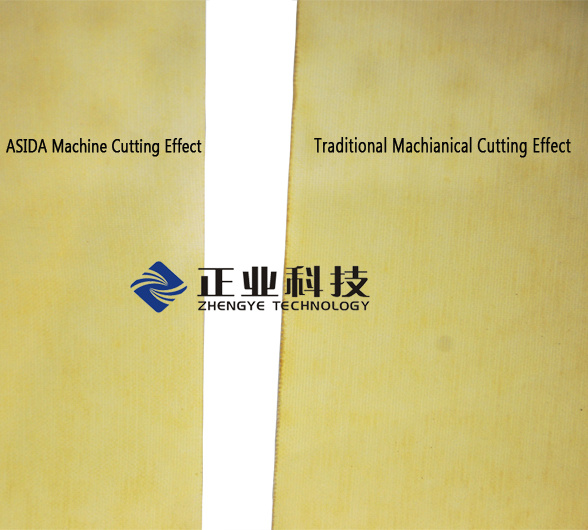

Tidy cutting edge,no white edges&layered&wrinkled and charred carbonation;compared
with the traditional purely mechanical cutting, more than 95% dust reduced. |
Efficiency |
Cutting frequency(take 500mm length as calculation):≤18times/min |
Objects |
Cutting length:250~750mm |
Cutting width: 200~1270mm |
Cutting thickness:0.04~0.3mm |
Dimension |
2657mm*2200mm*1658mm |
Weight |
1800kg |
Established in 1997, Guangdong Zhengye Technological Liability Limited Company is a high and new-tech enterprise and is engaged in researching &developing, producing, selling and after-sale services of the precision detection equipments and electronic materials both in Printed Circuit Board manufacturing field and Lithium battery testing industry.
In recent years, the company is dedicated to researching and developing domestic scientific instruments and equipments through the scientific developing mode of "independent research and development", "introducing, digesting, absorbing and then re-innovating" and "combination involves producing, teaching & researching". We have independently worked out and produced more than 40 kinds of testing instruments and equipments for rigid and flexible board such as X-ray nondestructive inspection equipment, ionic contamination tester, visual inspection machine, impedance test system etc. All of the products have our own intellectual property rights, which also have filled the domestic gap. It has satisfiled with the demanding for high quality inspection of the electronic circuit industry and Lithium Battery testing industry.
In the process of continuous development of the enterprise, we have also won high reputation from the government and this industry and has been awarded as the key high-tech enterprise of national Torch Plan, outstanding national brand enterprise in the 1st and the 2ND China electronic circuit industry, national standardization good behavior enterprise AAA enterprise, fast-growing medium and small enterprises, the national torch plan, the famous trademarks of Guangdong province, the major provincial-supported equipment manufacturing enterprises, technology center of all enterprises in Guangdong and preponderant enterprise in intellectual property in Guangdong, etc. At present, the company's selling market covers the Pearl River delta region and Yangtze River delta region and is expanding to South Korea, Taiwan and other southeast Asia areas.
Zhengye technology of the independent research and development production X-ray non-destructive inspection equipments are widely used in the Lithium battery industry\PCB field and electronic manufacturing process, it is used for Non-destructive testing analysis of the products' internal defects. The whole parts of the X-ray non-destructive testing equipment meets safety requirements both in Europe and USA, which has got the radioactive isotopes and radial device management exemption certificate in Guangdong Province.
In future, Zhengye will continue to provide sincere service for customers and further focus on outstanding technical innovation. We will constantly improve the accuracy and stability of testing instruments, strengthen our brand construction with the aim to be a professional supplier of precision detection equipments and electronic materials and Lithium battery testing industry.
